DN SOLUTIONS Leo 1600

Photo Gallery

DN SOLUTIONS - Leo 1600DE-TUR-DNS-2023-00005

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DN SOLUTIONS Leo 1600 For Sale | gindumac.com

Show in original language

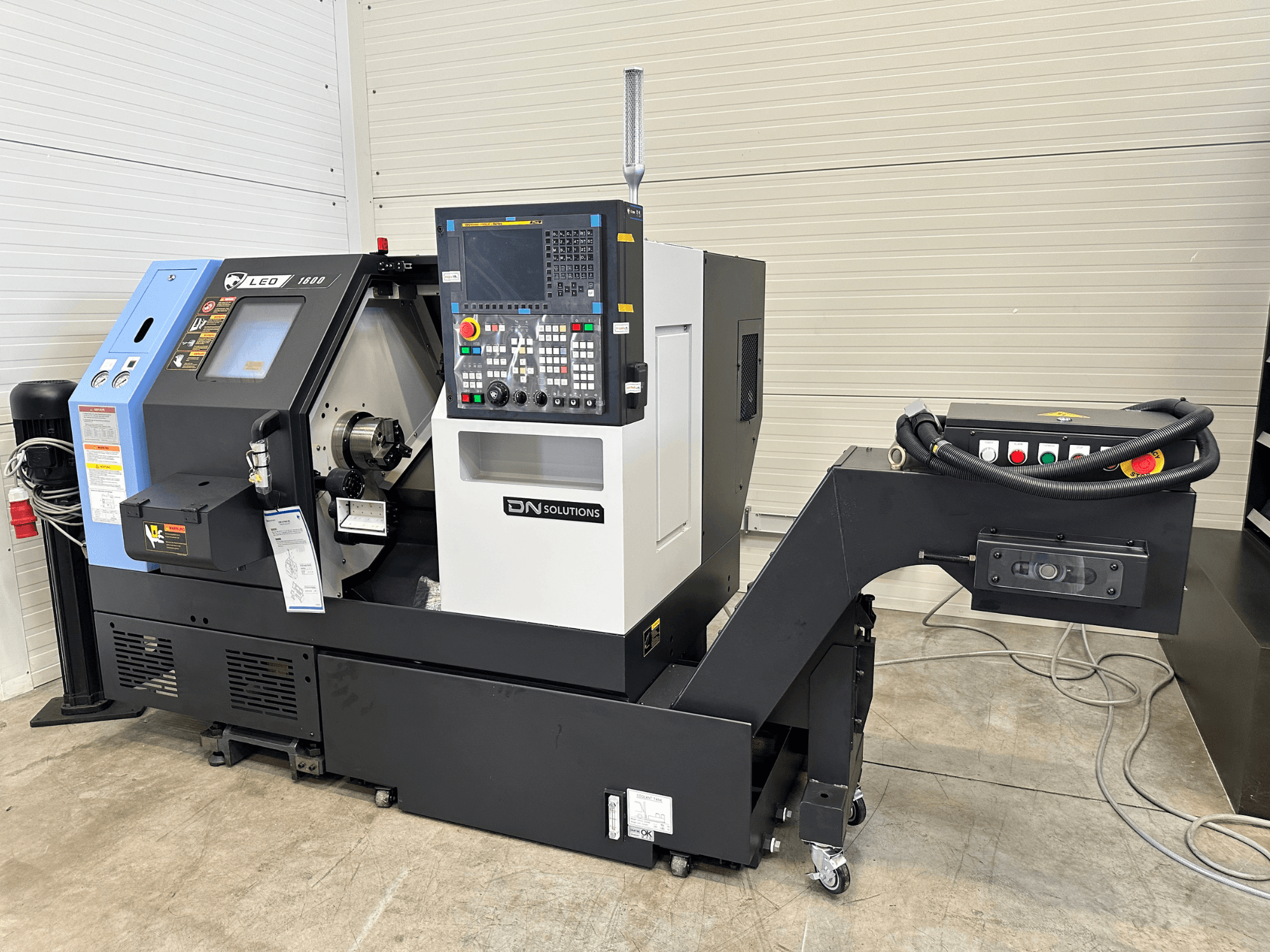

This 3-axis DN SOLUTIONS Leo 1600 turn-mill centre was manufactured in 2023. It features a maximum turning diameter of 320 mm and a turning length of 303 mm. The machine is equipped with a 6-inch main spindle chuck and offers a rapid traverse speed of 30 m/min in both X and Z axes. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS Leo 1600 machine we have for sale. Contact us for further details.

Overview

brand: DN SOLUTIONS
year: 2023
MODEL: Leo 1600
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DN SOLUTIONS Leo 1600

Control Unit

Control Brand: FANUC

Dimensions

Machine Height: 1635 mm
Machine Length: 1850 mm
Machine Weight: 2600 kg
Machine Width: 1690 mm

Movement

Number of Axes: 3
X-axis Travel: 175 mm
Z-axis Travel: 330 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 7.5 kW
Spindle Speed: 4000 RPM

Additional Information

Main spindle chuck size: 6 inch (153 mm)
Bar capacity: 45 mm
Rapid traverse X: 30 m/min
Rapid traverse Z: 30 m/min
Main spindle torque: 72 Nm
Max turning diameter: 320 mm
Max turning length: 303 mm
Number of tool stations: 12
Guideway type: Linear guideways
Monitor size: 10.4 inch
Electrical connection: 380 V
Electrical supply: 3 phase
Frequency: 50 / 60 Hz
Rated power: 14.97 kVA
Full load current: 22.74 A
Short circuit capacity: 10 kA
Interrupting capacity: 5 kA

Additional equipment

Optional:
8 pcs. External clamping piece
1 pc. Face turning tool post 850418 (500-5804)
3 pcs. Internal turning tool post
Chip conveyor (hinge belt conveyor). Price on request
Machine is delivered with standard basic package: Turret fully equipped, basic tool post included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
