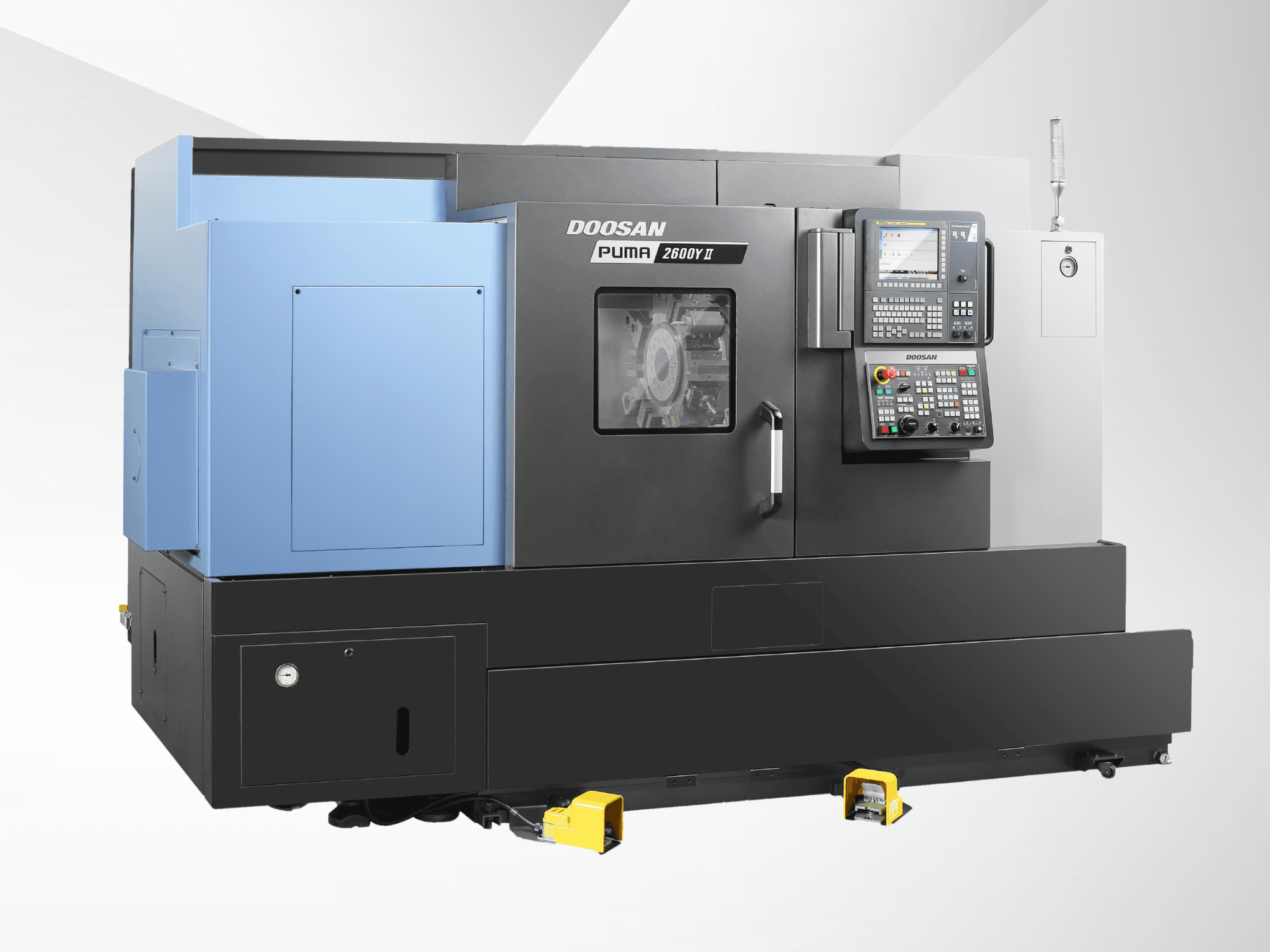

This 4-axis DN SOLUTIONS PUMA 2600Y II was manufactured in 2024. It features a maximum turning diameter of 376 mm and a turning length of 760 mm. The machine is equipped with a main spindle speed of 4,000 rpm and a turret with 12 tool stations. If you are looking to get high-quality mill-turn capabilities, consider the DN SOLUTIONS PUMA 2600Y II machine we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2024
- MODEL: PUMA 2600Y II
- application type: Milling
- Location: Portugal
- machine type: Mill-Turn Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS PUMA 2600Y II
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Movement
- Number of Axes: 4
- Y-axis Travel: 105 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 4000 RPM
Additional Information
15" color touchscreen display
iHMI Easy Operating System (EZI & Machining Cycle)
Absolute feedback system
CE certified
Metric configuration
Power supply: 3 Phase AC 380V / 50Hz
Number of axes: 4 (X, Z, Y, C)
Maximum turning diameter: 376 mm
Maximum turning length: 760 mm
Bar capacity: 81 mm
Main chuck size: 255 mm (10")
Hardened & ground hard jaws
Main spindle motor power: 22 / 15 kW
Built-in spindle design
C-axis functionality
Milling spindle power: 7.5 / 1.5 kW
Live tool speed: up to 10,000 rpm
Turret type: BMT65P
Number of tool stations: 12
Automatic electric tool setter
Programmable live tailstock
MT5 live center
Coolant pump: 1.1 kW / 1.0 MPa / 20 L/min
Flood coolant for rotary tools
Coolant tank on right side
Thermal compensation structure
Chuck clamp confirmation
Bar feeder interface
Embedded Ethernet
Program storage: 5,120 m (2 MB)
1,000 program capacity
128 tool offset pairs
8 work coordinate systems
Built-in transformer
Electrical line filter
3-color signal tower (red / yellow / green)
Tool number display
Additional equipment
Hinged belt chip conveyor (right side)
Belt-type oil skimmer
Parts catcher with collection box
Coolant gun
Air gun
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
