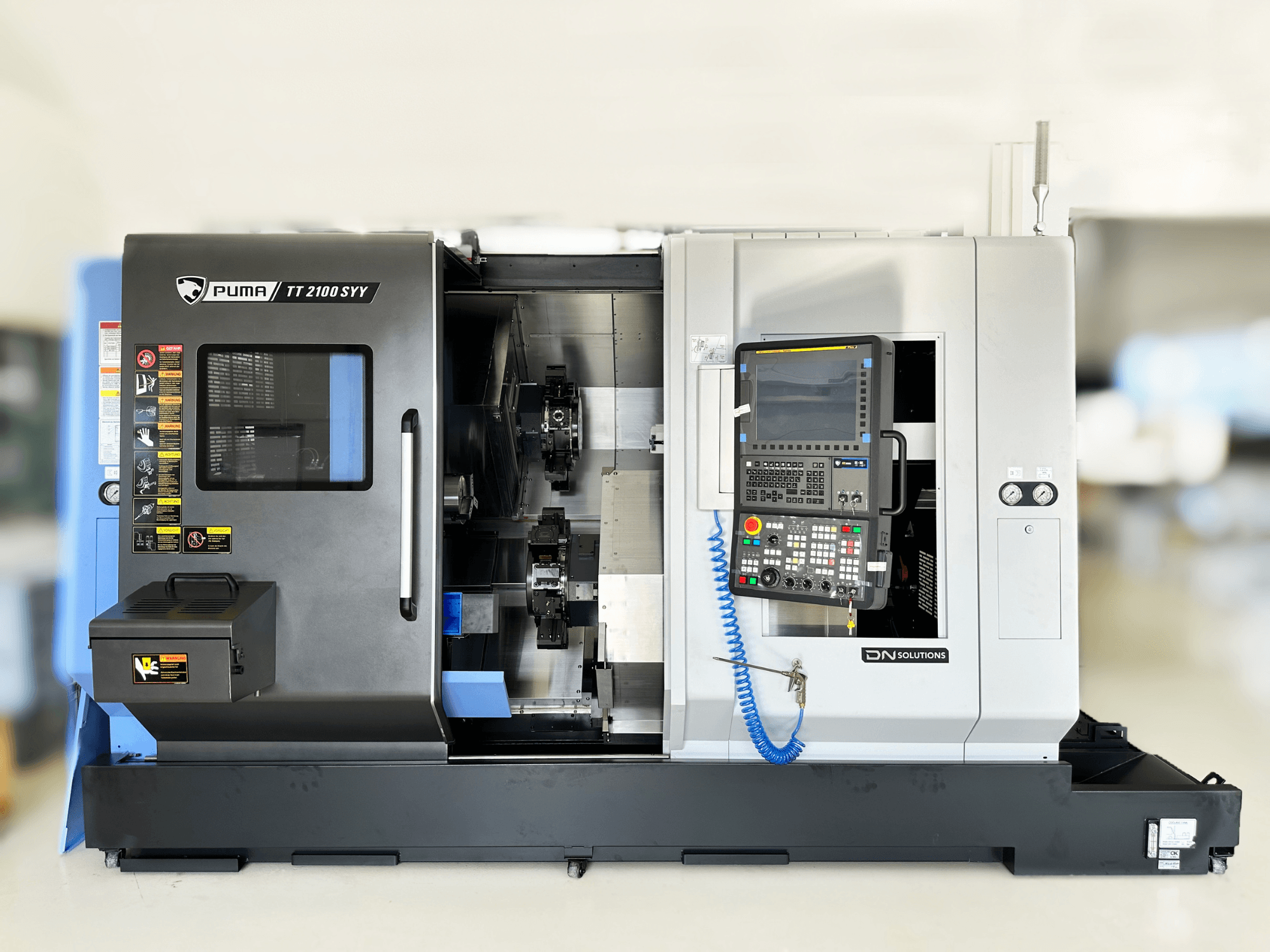

This 8-axis DN SOLUTIONS PUMA TT2100SYY was manufactured in 2023. As new, showroom model. It features a twin-spindle and twin-turret configuration, with a maximum spindle speed of 5,000 RPM and a bar capacity of 65 mm. The machine is equipped with 24 turret stations and high-rigidity linear roller guides for enhanced stability. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS PUMA TT2100SYY turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2023
- MODEL: PUMA TT2100SYY
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS PUMA TT2100SYY
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Height: 2250 mm
- Machine Length: 3880 mm
- Machine Width: 2360 mm
Movement
- Number of Axes: 8
- X-axis Travel: 165 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 700 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
Chuck size: 8" (204 mm)
Bar capacity: 65 mm
X1/X2 travel: 165 / 100 mm
Z1/Z2 travel: 700 / 700 mm
Y1/Y2 travel: 30 / 40 mm
Spindle motor power: 22 / 18.5 / 15 kW
Turret stations: 24 (12 + 12)
Turret interface: BMT 55
Guideway type: High-rigidity linear roller guides
Spindle type: Integral motor spindle with wide speed range
Turret capability: Upper and lower turrets with Y-axis and 12 driven stations each
Structural design: Highly stable Y-axis design for high-volume serial production
Additional equipment
Cooling and filtration: High-pressure coolant through turret; Oil skimmer
Sub-spindle features: Coolant supply through sub-spindle; Parts ejector
Parts handling: Parts catcher; Parts conveyor for both spindles
Calibration: Tool setter (auto-electric)
Automation and interfaces: Air conditioning (electrical cabinet); Bar feeder interface; 3-color tower light
Optional: Chip conveyor (hinge belt conveyor). Price on request
Machine is delivered with standard basic package: Turret fully equipped, base holder included.
Optional:
5 pcs. External turning tool holders SQ20, BMT 55 (500-0696)
2 pcs. Facing tool holders R/L (500-0701)
1 pc. Double external turning tool holder HS/GS (500-0868)
2 pcs. Double external turning tool holders HS (500-0705)
1 pc. Parting tool holder (500-0709)
7 pcs. Boring bar holders; BMT 55 ID 32 (500-0698)
2 pcs. Triple internal turning tool holder GS (500-0707)
2 pcs. Cover IK (500-0711)
1 pc. Reducing sleeve set Boring (n/a)
2 pcs. Reducing sleeve set OD 32 ID 20/25 (500-0710)
1 pc. Adapter set PRECI-FLEX ER25 (BMT 55P) (500-0523)
2 angled externally cooled external heat sinks Eppinger
2 straight externally cooled external heat sinks Eppinger
Additional Information
As new, showroom model
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
