➤ Used Index G250 Turn-Mill Centre For Sale | gindumac.com

Show in original language

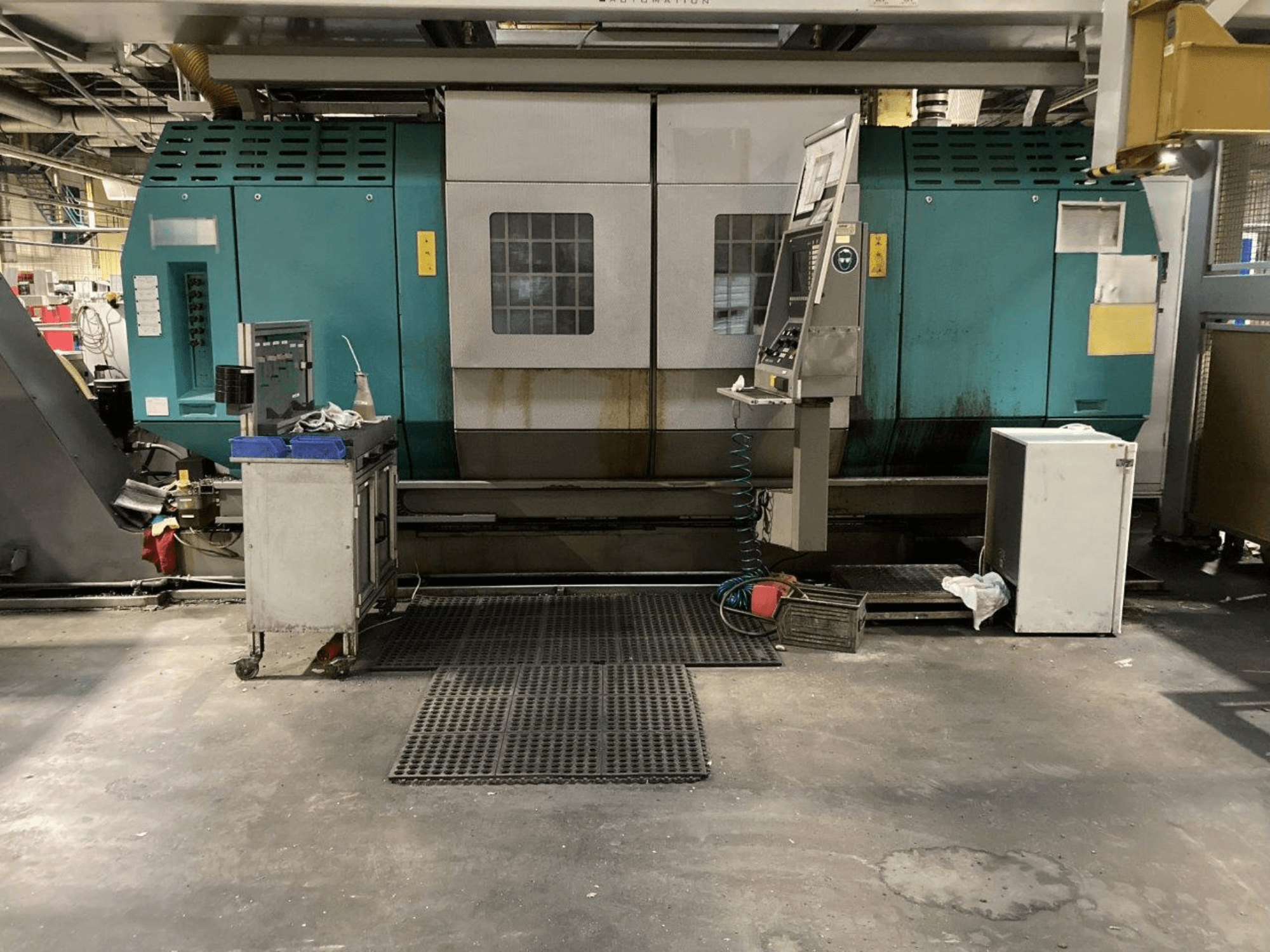

This 8-axis Index G250 turn-mill centre was manufactured in 2004. It includes a Knoll chip conveyor, EMAG cooling unit, and ISI mist extraction system. The machine features a hydraulic power chuck with a clamping range of 125–152 mm and an overhead gantry loader for automation. If you are looking to get high-quality turning and milling capabilities, consider the Index G250 machine we have for sale. Contact us for further details.

Overview

brand: Index
year: 2004
MODEL: G250
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - Index G250

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK

Dimensions

Machine Height: 2400 mm
Machine Length: 5460 mm
Machine Weight: 13500 kg
Machine Width: 2560 mm

Movement

Number of Axes: 8
X-axis Travel: 300 mm
Z-axis Travel: 1400 mm

Technical Specification

Counter Spindle: No
Driven Tools: No

Additional Information

- Control Unit: Siemens SINUMERIK / INDEX C 200-4D

- Rated Voltage: 400 V AC (3 Phase, 50 Hz)

- Rated Current: 74 A

- Rated Power: 43 kW

- Control Voltage: 24 V DC

- Tool Turret: 12-station tool turret with driven/live tool capability (individual powered tools are not included in the scope of delivery)

- Workholding: Main spindle with hydraulic power chuck / collet system, SMW-Autoblok SLU-3-ZS hydraulic power chuck (clamping range 125-152 mm)

- Steady Rest: SMW-AUTOBLOK / Original SMW Steady Rest (Type: SLU-3-28, Clamping range: 12-152 mm, Max. operating pressure: 60 bar)

- SMW Autoblok steady rest:

hydraulic/self-centering steady rest
mounted on its own lower slide
suitable for providing additional support for long or thin workpieces

- Tailstock unit with a rotating center on the right side of the work area for supporting longer workpieces

- Hydraulic System: Integrated hydraulic power unit operating at 95 bar pressure

- Automation / Gantry Loader: Promet Automation gantry loading system overhead

- Coolant / Chip System: Knoll chip conveyor / coolant unit (YOM: 2004)

- Chiller Unit: EMAG Chiller / Cooling Unit (YOM: 2016, Cooling capacity: 9.5 kW, Refrigerant: 2.5 kg)

- Mist Collector / Air Cleaner: ELBARON / ISI RON / A 2500 Electrostatic Air Cleaner / Mist Extractor (YOM: 2004)

- Documentation Included: Complete documentations, operating manuals, etc.

- Transport Dimensions (L x W x H): Approx. 5460 x 2560 x 2400 mm (width reducible to 2450 mm)

- Machine Weight: Approx. 13,500 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
