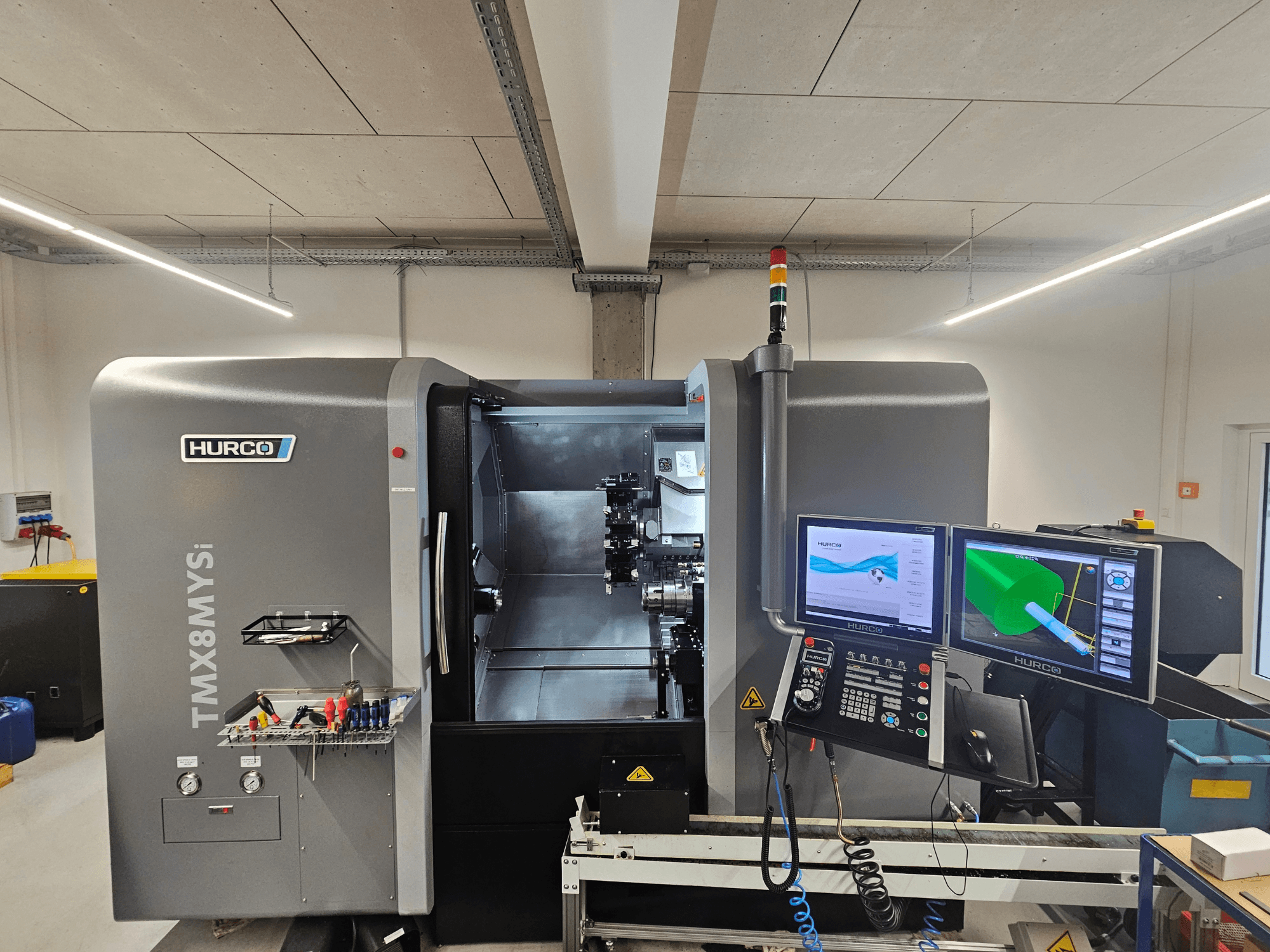

Hurco - CNC TMX 8 MYSiDE-TUR-HUR-2023-00001

- Number of Axes: 5

- X-Axis Travel: 203 mm

- Y-Axis Travel: ±55 mm

- Z-Axis Travel: 560 mm

- W-Axis Travel: 640 mm

- Rapid Traverse (X/Y/Z/W): 24 / 12 / 30 / 30 m/min

- Positioning Accuracy Pmax: 0.01 mm

- Repeatability Ps: 0.005 mm

- C-Axis Accuracy: 25 arcseconds

- Max. Turning Diameter: 336 mm (Email text states 508 mm max turning / swing)

- Max. Turning Diameter at Full Y-Travel: 216 mm

- Max. Swing Diameter: 508 mm

- Max. Turning Length: 560 mm

- Max. Workpiece Diameter Over Bed: 335 mm

- Max. Workpiece Weight without Sub-spindle/Tailstock: 23.2 kg

- Max. Workpiece Weight with Sub-spindle/Tailstock: 145.5 kg

- Turret Type: VDI 40 / DIN 1809

- Turret Stations: 12

- Turret Indexing Time: 0.31 s

- Max. Boring Bar Diameter: 40 mm

- Tool Shank Cross Section: 25 mm

- Driven Tool Max. Speed: 5,000 rpm

- Driven Tool Power: 6.3 kW

- Driven Tool Max. Torque: 28 Nm

- Main Spindle Max. Speed: 4,500 rpm

- Main Spindle Speed with Synchronous Sub-Spindle: 2,500 rpm

- Main Spindle Power (S6 / S1): 25 / 17.2 kW

- Main Spindle Torque (S6 / S1): 239 / 164 Nm

- Main Spindle Chuck Diameter: 203 mm (Kitagawa BB208A6 3-jaw chuck)

- Main Spindle Draw Tube Diameter / Bar Capacity: 64.5 mm

- Main Spindle Nose: A2-6

- Main Spindle Collet Type: CR60A6

- Main Spindle Acceleration (0 to n max): 3.2 s

- Main Spindle Deceleration (n max to 0): 4.5 s

- Sub-Spindle Max. Speed: 6,000 rpm

- Sub-Spindle Speed with Synchronous Main Spindle: 2,500 rpm

- Sub-Spindle Power (S6 / S1): 15 / 11 kW

- Sub-Spindle Torque (S6 / S1): 102 / 75 Nm

- Sub-Spindle Chuck Diameter: 150 mm (Kitagawa B206A5 3-jaw chuck)

- Sub-Spindle Draw Tube Diameter / Bar Passage: 46 mm

- Sub-Spindle Nose: A2-5

- Sub-Spindle Collet Size: 173E

- Sub-Spindle Acceleration (0 to n max): 4.0 s

- Sub-Spindle Deceleration (n max to 0): 4.0 s

- Machine Bed Material: GJS (Ductile cast iron)

- Guideways: Ball linear motion guideways on X/Y/Z/W

- Ball Screws: Direct drive ball screws on X/Y/Z/W

- Control System: HURCO MAX5 Single Control (Pentium technology, SSD storage, 2 GB RAM, Ethernet, USB, Windows platform)

- Display: 1 x 19" LCD color screen plus optional secondary screen

- CNC Software Options: Dialogue/NC Mix package, NCPP, ISNC (FANUC 0 compatibility), DXF software, dual software units (Plain text dialogue + ISO code)

- Additional Installed Equipment: Sub-spindle parts ejector, finished parts catcher, finished parts conveyor, tool presetter/calibration, spindle chiller, electrical cabinet heat exchanger/air conditioner, LED work light, bar feeder interface, air/coolant blast chuck cleaning

- Electrical Supply: 400 V, 50 Hz, 3-Phase (Standard configuration: 61 kVA / 110 A; Nominal: 58 kVA / 83 A; Largest motor: 22 kVA / 32 A)

- Short Circuit / Interrupting Capacity: 5 kA RMS symmetrical / 10,000 A

- Pneumatic Supply: 7 bar, 140 L/min (Dry, clean air per DIN ISO 8573-1, Class 4)

- Max. Ambient Temperature: 35 °C

- Required Floor Space: 5,519 mm x 3,296 mm x 2,552 mm

- Machine Weight: 7,500 kg

- Transport Weight: 8,250 kg

- Optional Equipment:

* High-Pressure Coolant System: 20 bar (Emulsion)

* Coolant Tank Capacity: 203 L

* Chip Removal: Hinge belt chip conveyor and chip enclosure cabin

* Machine levelling shoes set

* Double turning holder (BT65A, 25 mm / 1", Item: 9103734 / 48-86150)

* High-pressure turning holder HP (BT65A, 25 mm, Item: 9103735 / 48-92438-HP)

* High-pressure face turning holder HP (BT65A, 25 mm, Item: 9103736 / 48-109249-HP)

* Parting-off tool holder right SH32 (BT65A, Item: 9103737 / 48-102256R)

* Double boring bar holder D32 (BT65A, 32 mm, LF 65/120 mm, Item: 9103738 / 48-86160)

* Double boring bar holder D32 (BT65A, 32 mm, LF 100 mm, Item: 9103739 / 48-101033)

* Combination holder DX40x100 (BT65A, 40 mm, Item: 9103740 / 48-92397)

* Collet chuck holder ER32x40 (ER 32, Item: 9103741 / 241140020)

* Reduction sleeves IK 32: 32x08 (9103742), 32x10 (9103743), 32x12 (9103744), 32x16 (9103745), 32x20 (9103746)

* Driven angular drilling and milling unit, internal/external coolant, 100 bar, 6000 rpm, 80 Nm, ER-32 QF (Item: 9103749 / QF32-DNI-BT65A-100-1-A)

* Driven angular drilling and milling unit, external coolant, 6000 rpm, 80 Nm, ER-32 QF (Item: 9103750 / QF32-DNI-BT65A-100-E-A)

* Driven axial drilling and milling unit, internal/external coolant, 100 bar, 6000 rpm, 80 Nm, ER-32 QF (Item: 9103751 / QF32-DNE-BT65A-060-1-A)

* Wrench set EHB 32-32 (Item: 9103752 / 67732000)

* ER-32QF/WW adapters: WW06 (9103753), WW08 (9103754), WW10 (9103755)
