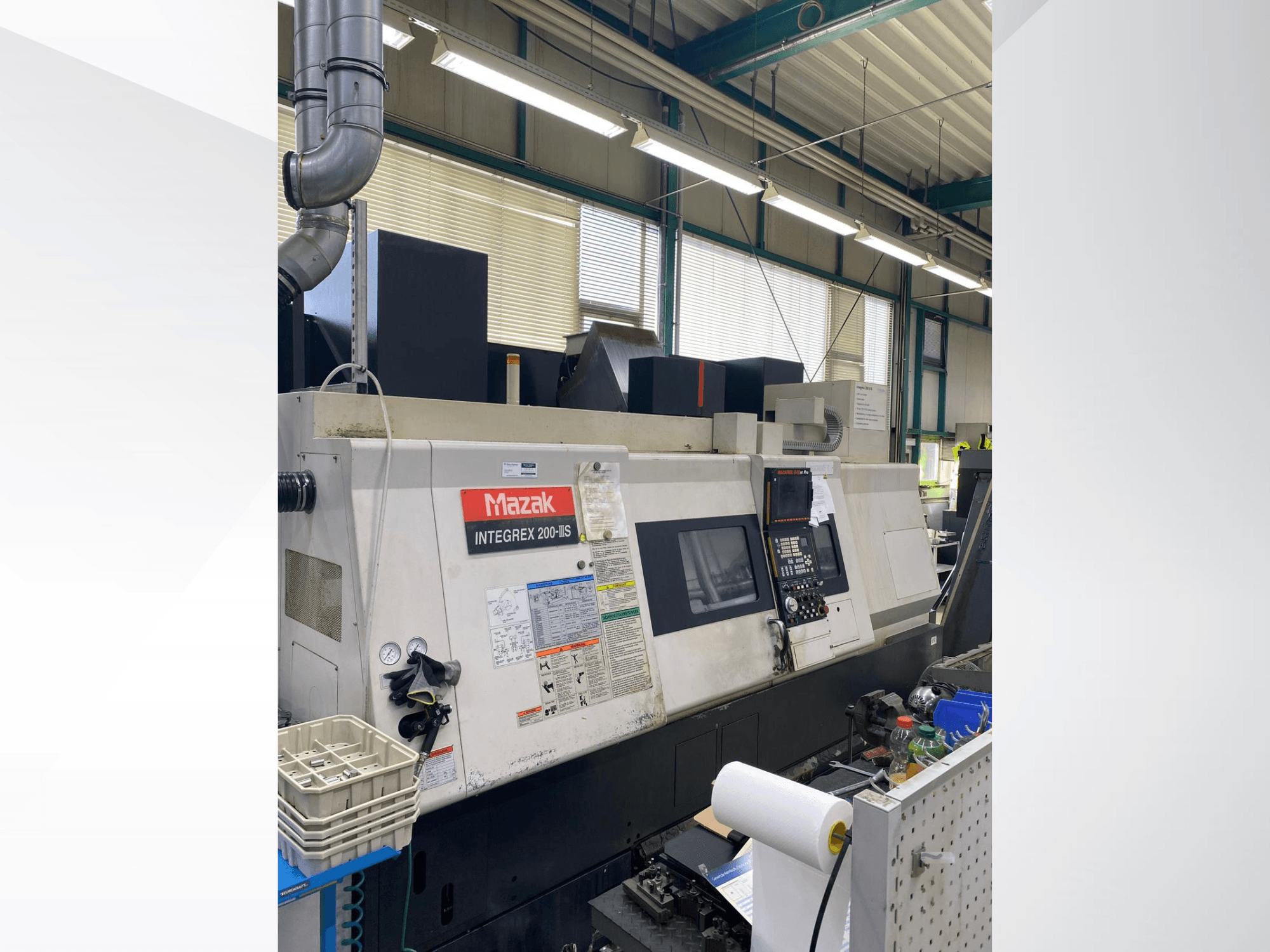

Mazak - INTEGREX 200 III SDE-TUR-MAZ-2004-00002

- Max. Swing Diameter: 660 mm

- Max. Turning Diameter: 660 mm

- Max. Turning Diameter over Slide: 500 - 660 mm

- Max. Bar Working Diameter: 51 mm

- Max. Workpiece Weight (incl. Chuck) - Chuck Workpiece: 100 kg

- Max. Workpiece Weight (incl. Chuck) - Shaft Workpiece: 150 kg

- Main Spindle Speed Range (Stepless): 35 - 5,000 rpm

- Main Spindle Drive Power (30 min. rating / 100% continuous operation): 22 kW / 15 kW

- Main Spindle Max. Torque: 349 Nm

- Main Spindle Nose: A2-6"

- Main Spindle Bore: Diameter 76 mm

- Main Spindle Chuck Diameter: 210 mm

- Main Spindle Indexing (C-Axis): 0.0001°

- Second Spindle Drive Power (30 min. rating / 100% continuous operation): 18.5 kW / 15 kW

- Second Spindle Speed Range: 35 - 5,000 rpm

- Second Spindle Max. Torque: 326 Nm

- Second Spindle Indexing (C-Axis): 0.0001°

- Second Spindle Chuck Diameter: 210 mm

- Tool Turret Design: Single spindle turret for stationary or driven tools

- Driven Tools (IPM Motor) Drive Power (20% ED): 15 kW

- Driven Tools Max. Torque: 120 Nm

- Driven Tools Speed Range: 15 - 12,000 rpm

- Tool Taper: MAZAK KM 63 quick-change system (for stationary tools)

- Tool Magazine Type: Drum type

- Tool Magazine Capacity: 80 slots (equipped for stationary and driven tools)

- Tool Weight: max. 10 kg

- Tool Diameter: max. 90 mm

- Tool Diameter (with free adjacent slots): max. 125 mm

- Tool Length: max. 300 mm

- Tool Change Time (Tool-to-Tool step 1): approx. 1.3 s

- Travel Y-Axis: +/- 80 mm

- Travel W-Axis: 1050 mm

- B-Axis Swivel Range: -30° to +195°

- Rapid Traverse Speed X-Axis: 38 m/min

- Rapid Traverse Speed Y-Axis: 26 m/min

- Rapid Traverse Speed Z-Axis: 38 m/min

- Rapid Traverse Speed W-Axis: 30 m/min

- Rapid Traverse Speed C-Axis: 400 rpm

- Feed Range X-Axis: 0 - 8,000 mm/min

- Feed Range Z-Axis: 0 - 8,000 mm/min

- Feed Range Y-Axis: 0 - 8,000 mm/min

- Coolant Tank Capacity: 220 L

- Pump Delivery Rate: approx. 20 l/min

- Pump Pressure: approx. 5 bar

- Pump Power: 635 W

- Connected Load: 61.4 kVA

- Operating Voltage: 400 V / 50 Hz

- Pneumatic Pressure: 5 bar, 500 l/min

- Total Operating Hours: 3,520 hours (Recorded on 2026/05/04)

- Automatic Process Time: 1,581 hours

- Automatic Cutting Time: 1,267 hours

- Pure Cutting Time: 905 hours

- Operating Time: 615 hours

- Standard Accessories / Additional Equipment:

- B-Axis (0.0001° positioning axis)

- C-Axis (0.0001°)

- Y-Axis

- Spindle orientation on second spindle

- Synchronization of main and second spindle

- Hydraulic 3-jaw chuck diameter 210 mm, Type KITAGAWA B-208, including 1 set of soft jaws (Main Spindle)

- Hydraulic 3-jaw chuck diameter 210 mm, Type KITAGAWA B-208, including 1 set of soft jaws (2nd Spindle)

- Dual foot switch for opening/closing the chucks for main and 2nd spindle

- Feedback of chuck status (open/closed) for main and 2nd spindle

- Air blow-out device on chuck (Second Spindle)

- Tool Setter (Tool Eye)

- Front door interlock

- Complete coolant system

- Coolant and chip guard via fully enclosed work area

- Work area lighting

- Chip Conveyor System (Mayfran ConSep unit visible)
