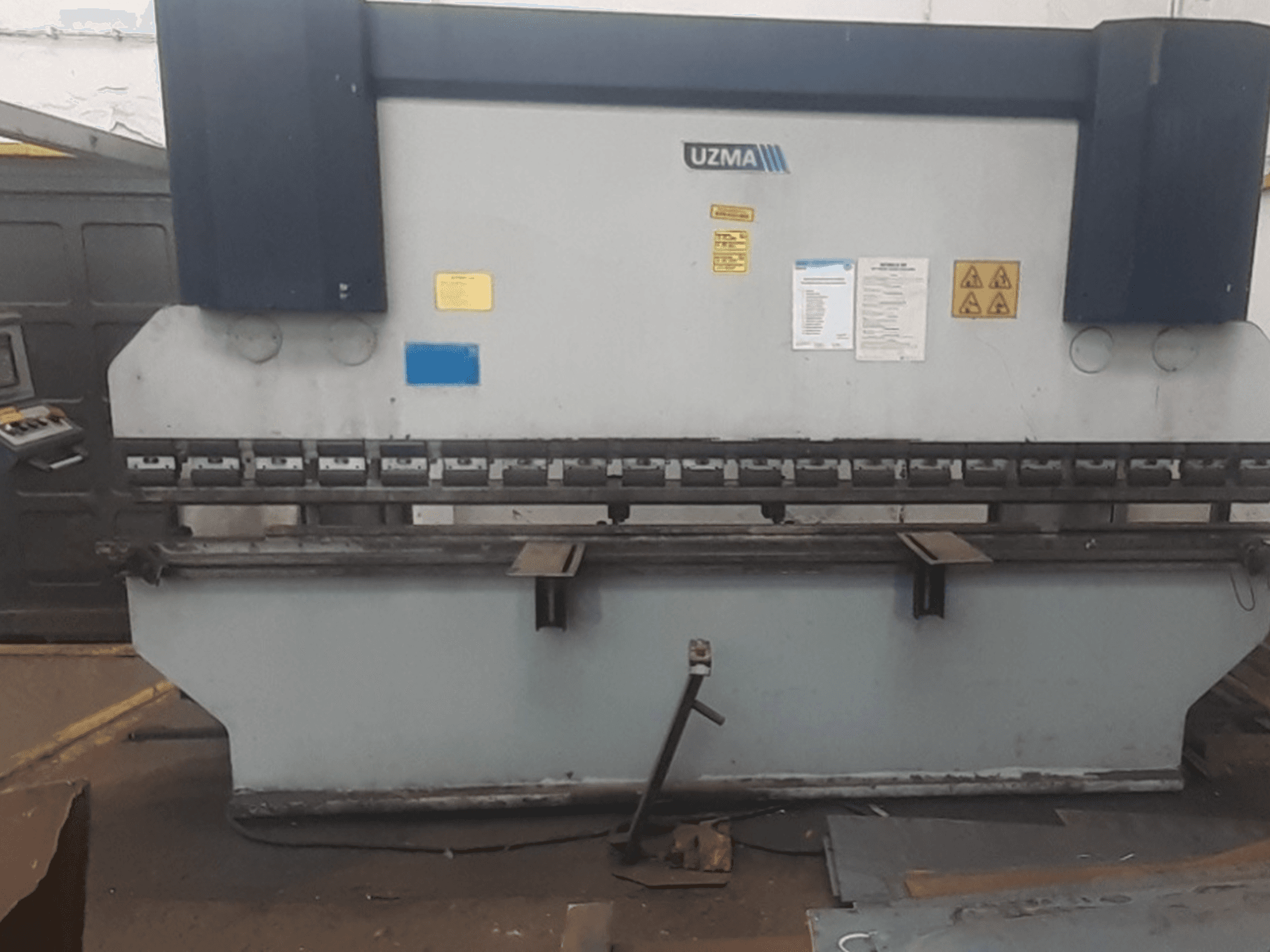

UZMA - HAP 40160 PL-BEN-UZM-2009-00001

Technical specifications:

• Distance between columns: 3100 mm

• Daylight opening: 385 mm

• Throat depth: 350 mm

• Table height: 910 mm

Speeds:

• Approach speed: 80 mm/sec

• Working speed: 9 mm/sec

• Return speed: 80 mm/sec

Electrical data:

• Main motor power: 15 kW

• Voltage: 400 V

• Number of phases: 3 phases

• Frequency: 50 Hz

• Overall full load current: 32 A

Axis movement:

• X-axis movement distance: 500 mm

• R-manual movement distance: 130 mm

Safety:

• Minimum light curtain distance from tool center: 280 mm

Control: ELGO P8822 (NC Control)
