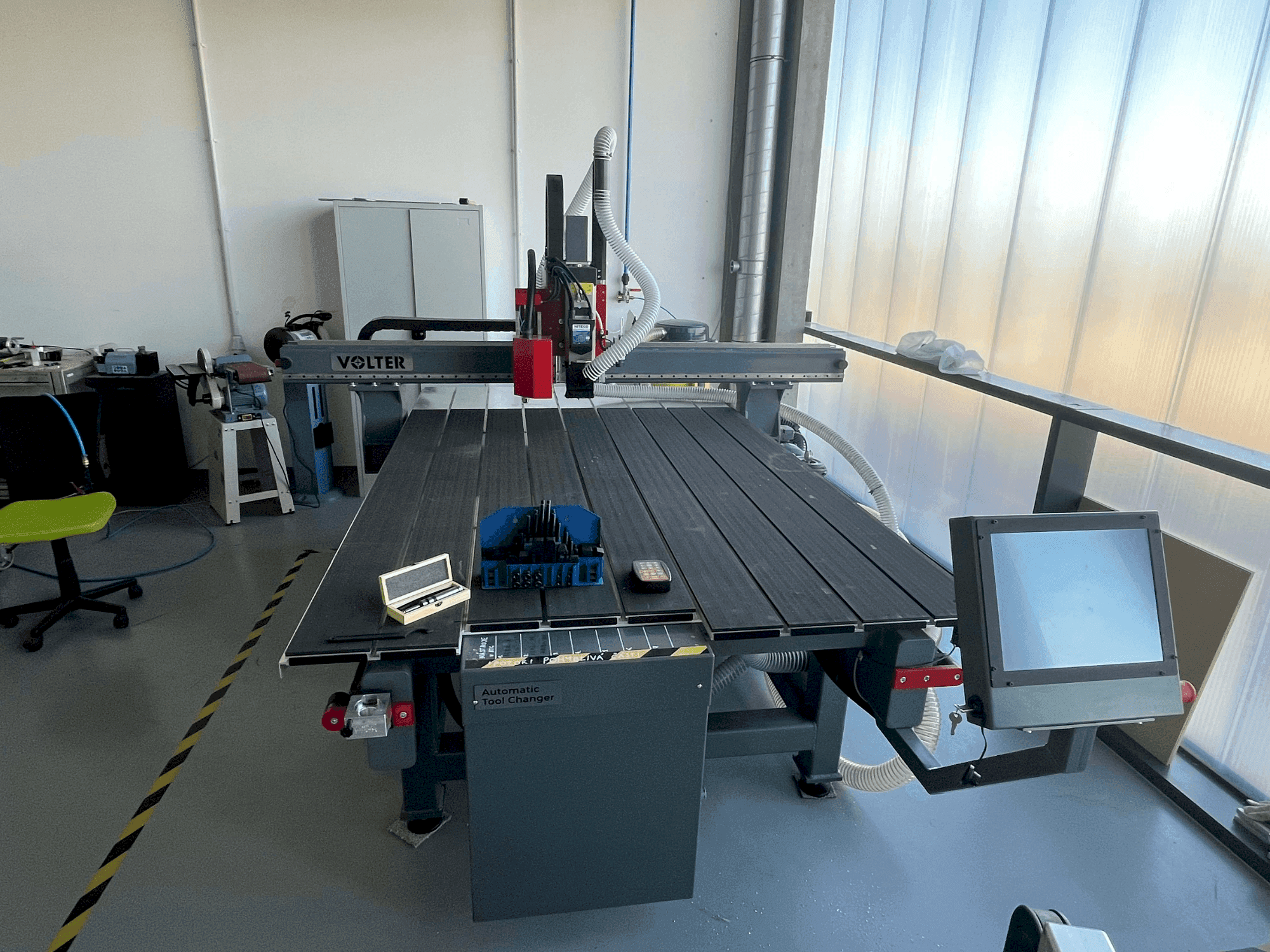

Front view of VOLTER L2016  machine

VOLTER - L2016CZ-MIL-VOL-2022-00001

£ 34,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis VOLTER L2016 milling machine was manufactured in 2022 and features a robust 7.5 kW HITECO spindle at 24000 RPM, a 4 zone vacuum table with T-slot clamping, and an automatic tool change system for up to 7 tools. It includes a user-friendly touch screen interface with multi-language support and a powerful VOLTER CS controller for efficient operation. With only 120 working hours, the VOLter L2016 machine we have for sale is in excellent condition. Contact us for more information.

Overview

  • brand: VOLTER
  • year: 2022
  • MODEL: L2016
  • production hours: 120
  • application type: Milling
  • Location: Czech Republic
  • machine type: Milling Machine
  • availability: Immediately
  • control unit brand: VOLTER

Technical Information - VOLTER L2016

General Data

  • Measurements width: 2100 mm
  • Measurements depth: 3300 mm
  • Machine weight: 1200 kg

Control Unit

  • Brand: VOLTER
  • Model: CS controller

Main drive

  • Number of spindles: 1
  • Spindle speed range: 24000 RPM 1/MIN
  • Spindle motor power: 7.5 kW
  • Number of axis: 3

Movement

  • Z-AXIS Movement: 160 mm

    Additional Equipment

    • - Accessories included: 7 pcs ISO30-ER32 collet clamp, 12 pcs ER32 collet set, M10 clamp set - T12 slot - 58-piece, approach probe with indicator
    • - Sawdust extractor: MasterVac TS220
    • - Automatic tool cooling
    • - Mechanical clamping brackets
    • - Servomotors
    • - Inclined toothed combs
    • - Start point laser pointer
    • - IP camera module for loading print marks
    • - Pneumatic tangential knife
    • - Remote wireless motion controller for easy origin setting

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Work surface: 2200 x 1610 mm
        • - Features: 4 zone vacuum table + t slot clamping system
        • - Type: automatic tool change system
        • - Capacity: 7 tools
        • - 5. 5 kw vacuum suction pump
        • - High-speed spindle, advanced vacuum and clamping systems, and comprehensive tool change capabilities.
      • Qualitative Machine Benefits:
        • - Very friendly user interface with touch screen and multi-language support
        • - User-friendly interface, precise control with servomotors and laser pointer, and efficient operation with volter cs controller.

      Extra information

      • - Machine still under power.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
