WALDRICH COBURG - 17-10 FP NC/5CZ-MIL-WAL-1985-00001

Name: WALDRICH COBURG 17-10 FP NC/5
Brand: WALDRICH COBURG
SKU: CZ-MIL-WAL-1985-00001
Price: 201770 GBP
Availability: InStock

£ 201,770

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

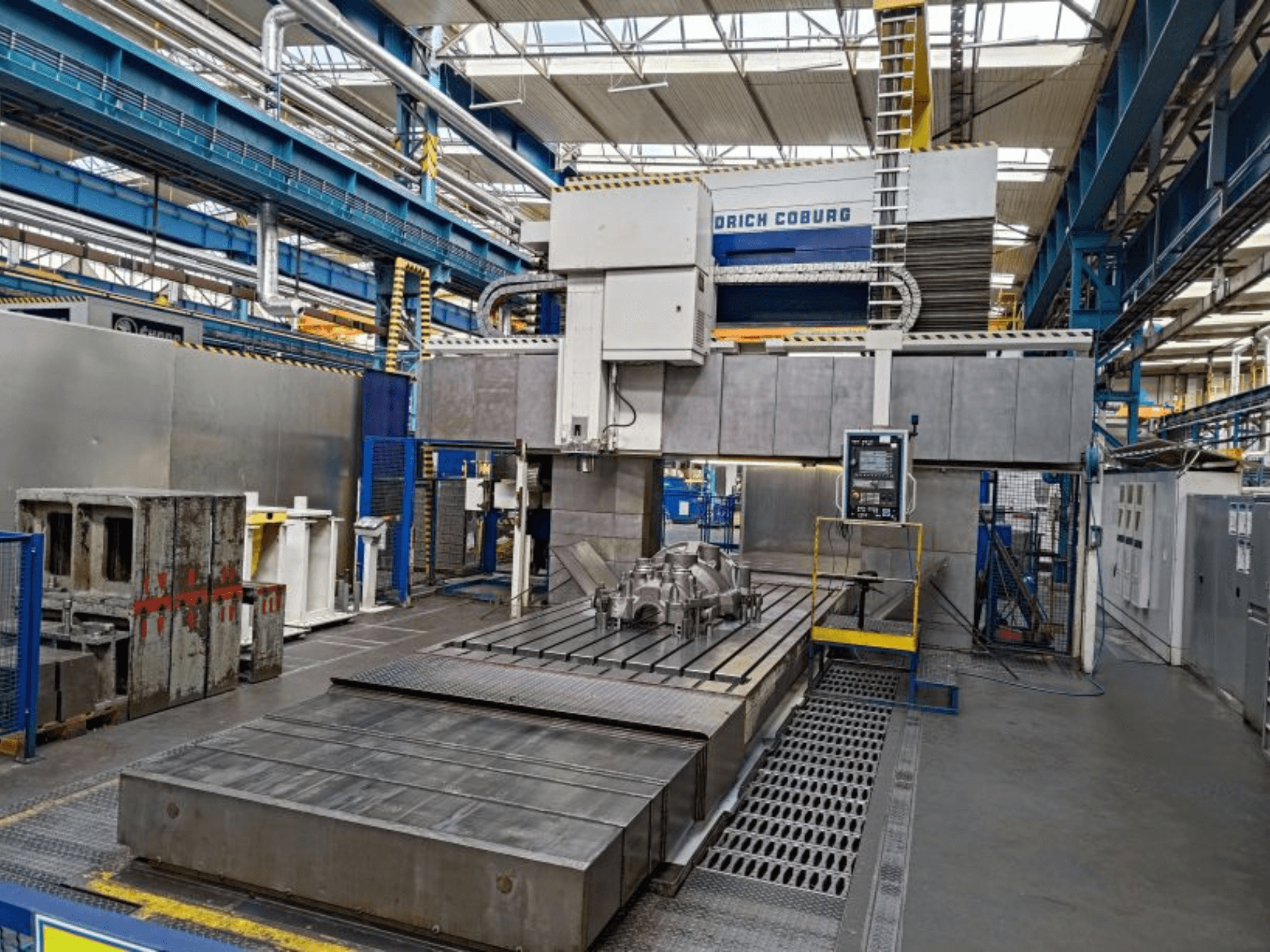

➤ Used WALDRICH COBURG 17-10 FP NC/5 | Gantry Mill

Show in original language

This 5-axis WALDRICH COBURG 17-10 FP NC/5 was manufactured in 1985 and lastly retrofitted in 2011. It features a maximum workpiece weight of 60 tons and a substantial table size of 2,500 mm by 5,000 mm. The machine is equipped with a Sinumerik 840 control system, ensuring precision in operations. If you are looking to get high-quality milling capabilities, consider the WALDRICH COBURG 17-10 FP NC/5 gantry milling machine we have for sale. Contact us for further details.

Overview

brand: WALDRICH COBURG
year: 1985
MODEL: 17-10 FP NC/5
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
control unit brand: SIEMENS

Technical Information - WALDRICH COBURG 17-10 FP NC/5

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840

Dimensions

Machine Height: 125000 mm
Table Length: 5000 mm
Table Width: 2500 mm

Movement

Number of Axes: 5
X-axis Travel: 2500 mm

Technical Specification

Spindle Speed: 2000 RPM

Additional Information

Max. workpiece weight: 60 tons
Tool Taper: ISO 60
Milling Width without Column Covers: 3000 mm
Milling Width with Column Covers: 2850 mm
Cross Travel of the Milling Support: 5270 mm
Distance Table to Face of Vertical Spindle: 2750 mm
Vertical Travel of the Cross Rail: 2250 mm
Clamping Length: 5000 mm
Longitudinal Travel of the Table: 5700 mm
Table Height Above Floor: 500 mm
Machine was retrofitted in 2011, 2008 and 1997.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
