TRIMILL - VU 2313CZ-MIL-TRI-2010-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Trimill VU 2313 Vertical Machining center

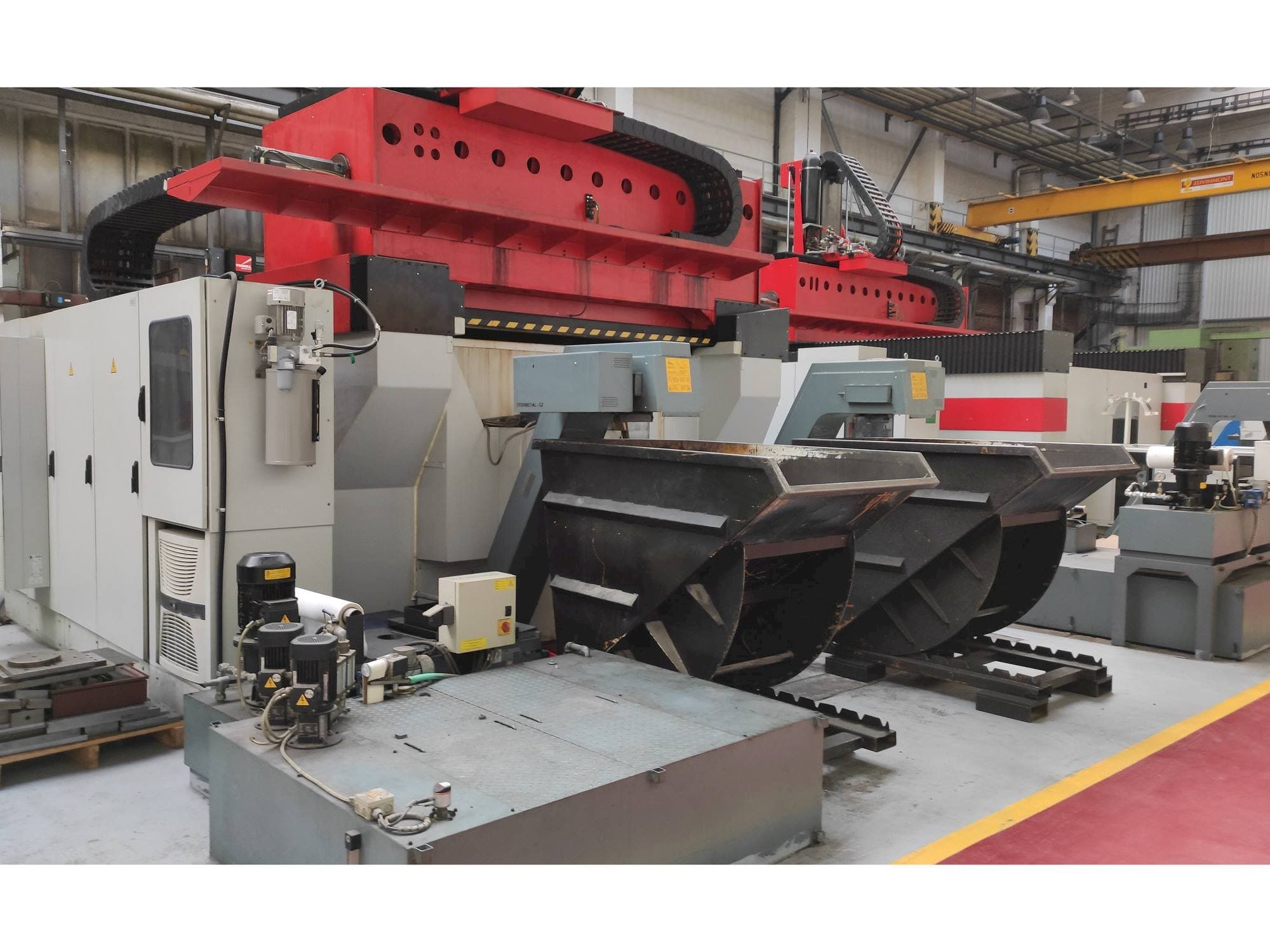

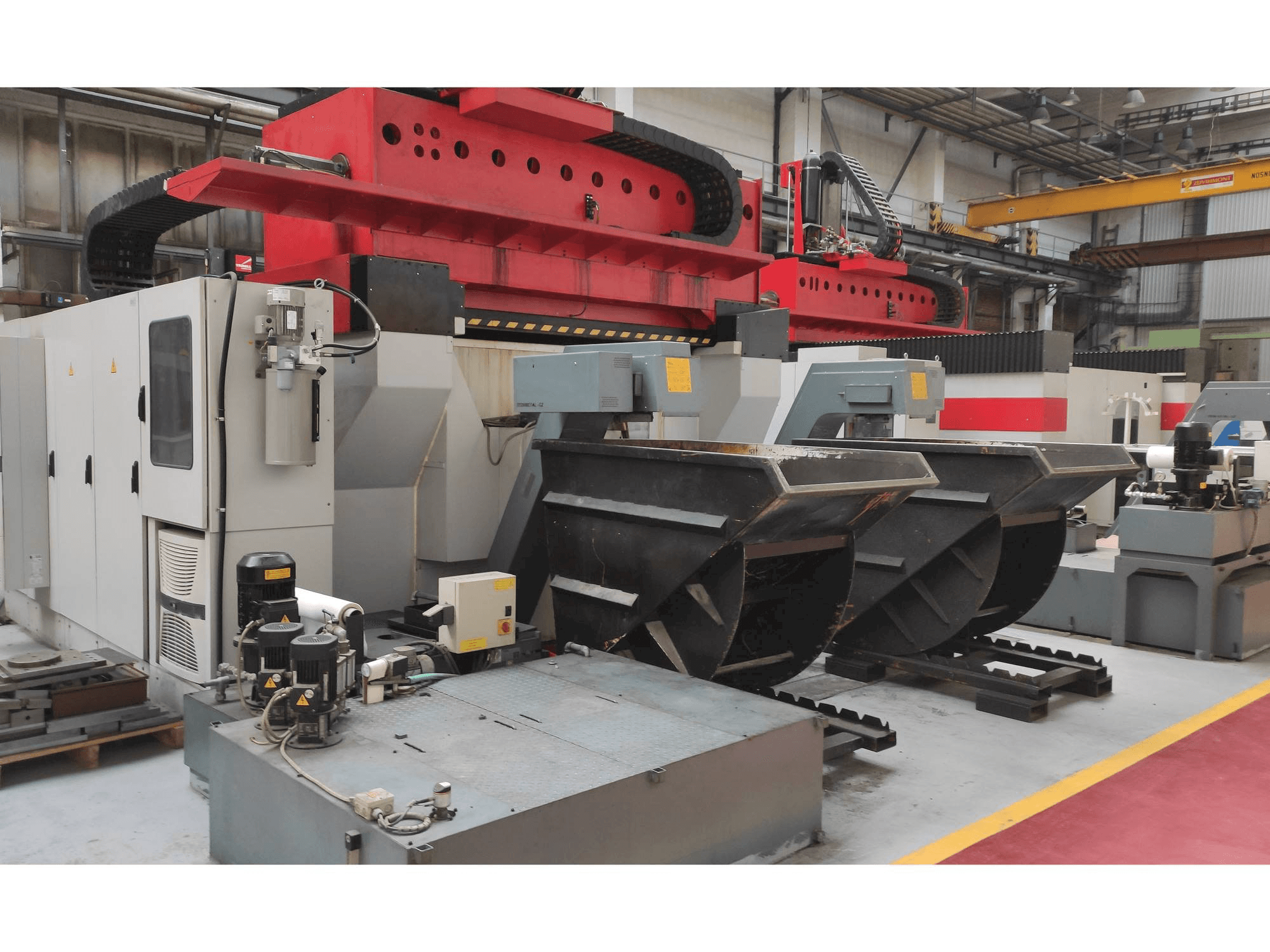

This Trimill VU 2313 Vertical Machining center was manufactured in the year 2010 in the Czech Republic and has 68648 hours, of which 40637 are spindle hours. It is equipped with a Heidenhain iTNC530 control unit and has 5 axis. The machine has a spindle speed of 10000 rpm, is in good condition, and is well maintained.
Overview
- brand: TRIMILL
- year: 2010
- MODEL: VU 2313
- production hours: 68648
- application type: Milling
- Location: Czech Republic
- machine type: Gantry Milling Machine
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - TRIMILL VU 2313
General Data
- Machine weight: 36000 kg
Control Unit
- Model: iTNC530
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 2300 mm
- Y-AXIS Movement: 1300 mm
- Z-AXIS Movement: 1000 mm
Workpiece
- Workpiece weight: 18000 kg
Table
- Outer length: 1800 mm
- Outer width: 1800 mm
- TSlots size: 11
- Distance between: 160 mm
Tools
- Slots in storage: 10
- Max weight: 12 kg
- Max tool diameter: 110/125 mm
- Max tool length: 450 mm
- Type of tool holder: HSK-A 100
Media
- Main electronic connection: 3x400 V
- Power consumption: 59 kVa
Additional Information
- Technical Machine Benefits:
- - Spindle motor power/torque 25 kw / 195 nm
- - B-axis (head) -2°/+92°
- - C-axis table n x 360°
- - Working feedrates x, y, z 30. 000 mm/min
- - Rapid feedrates x, y, z 3 m/sec²
- - Through spindle coolant
- Qualitative Machine Benefits:
- - Good condition!
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
