➤ Used HNK HPM 30M - Gantry Mill For Sale | gindumac.com

Show in original language

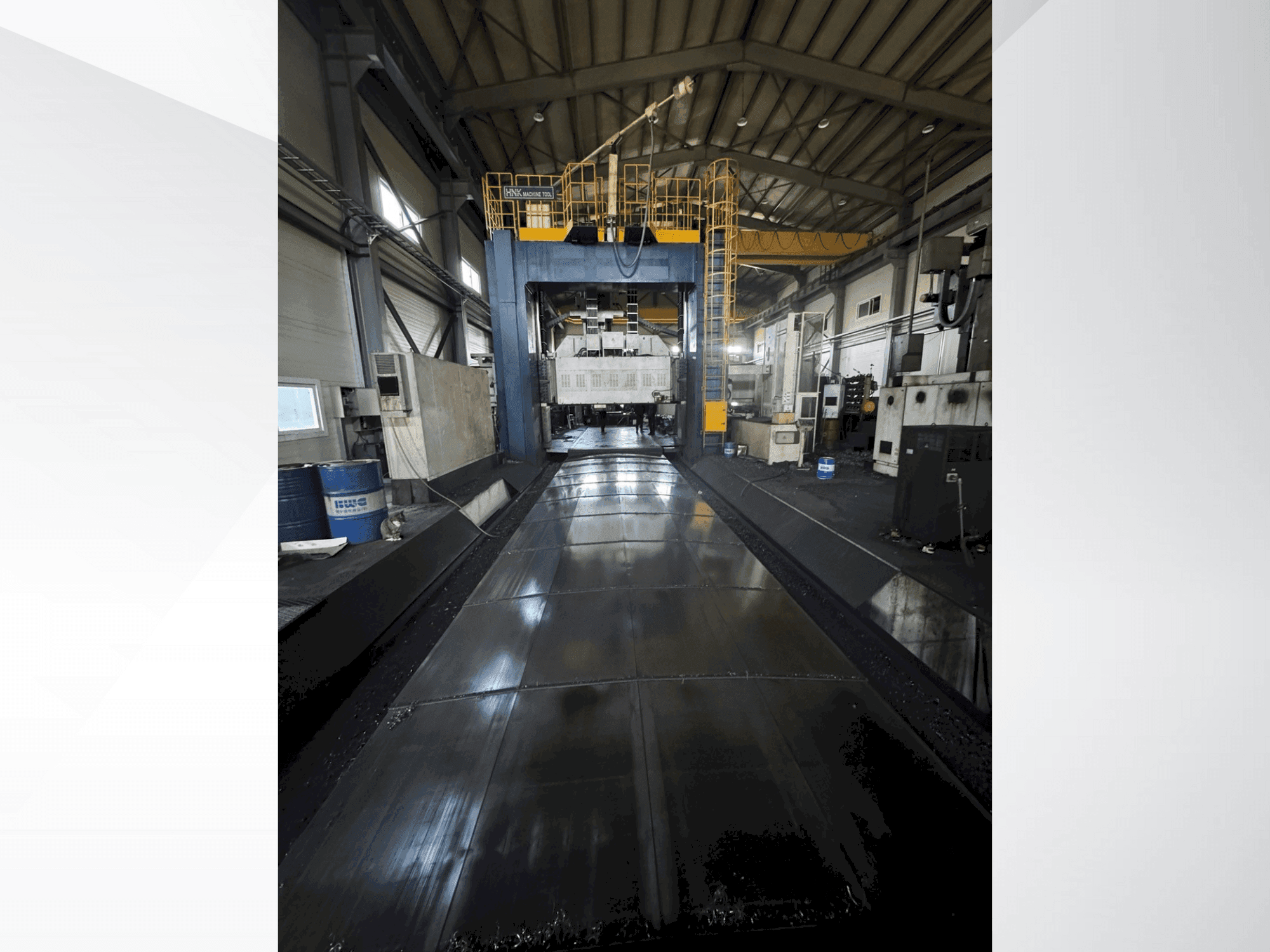

This 5-axis HNK HPM 30M gantry milling machine was manufactured in 2014. Ideal for complex and precise milling tasks, it offers enhanced flexibility and accuracy. Consider the opportunity to buy this HNK HPM 30M gantry milling machine. Contact us for more information about this machine.

Overview

brand: HNK
year: 2014
MODEL: HPM 30M
application type: Milling
Location: South Korea
machine type: Gantry Milling Machine
control unit brand: FANUC

Technical Information - HNK HPM 30M

Control Unit

Control Brand: FANUC
Control Model: 31i B

Dimensions

Machine Depth: 36500 mm
Machine Height: 9100 mm
Machine Weight: 172000 kg

Technical Specification

Spindle Power: 37 kW
Spindle Speed: 2500 RPM

Additional Information

Additional equipment

Auto Tool Changer (ATC): 90 Tools / Auto Angle-Head Changer (AAC): 2 Units
(2) AAC Units: (1) Extension Head (L = 600 mm)/ (1) 90° Right Angle Head (L = 350 mm, Index = 5°)
Hydraulic Pump & Coolant System / Coolant Through Spindle (30 BAR)
External Coolant Unit
4-Axis Linear Scales

Machine Benefits

Technical Machine Benefits

X-axis stroke: 10250 mm / y-axis stroke: 5000 mm / z-axis stroke (ram): 1000 mm / w-axis stroke (crossrail): 2500 mm
Rapid traverse x & y axes: 10000 mm/min /rapid traverse z & w axes: 3000 mm/min/ feed rate x & y axes: 3600 mm/min /feed rate z & w axes: 3000 mm/min
Distance between columns: 4000 mm / distance table to ram face: 3550 mm
Table size (w x l): 3000 mm x 10300 mm / maximum table load: 50 ton

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
