Voest Alpine WNC 500 S/1.6

Photo Gallery

Voest Alpine - WNC 500 S/1.6DE-TUR-VOE-1992-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
VOEST ALPINE WNC 500 S/1.6 Lathe

Show in original language

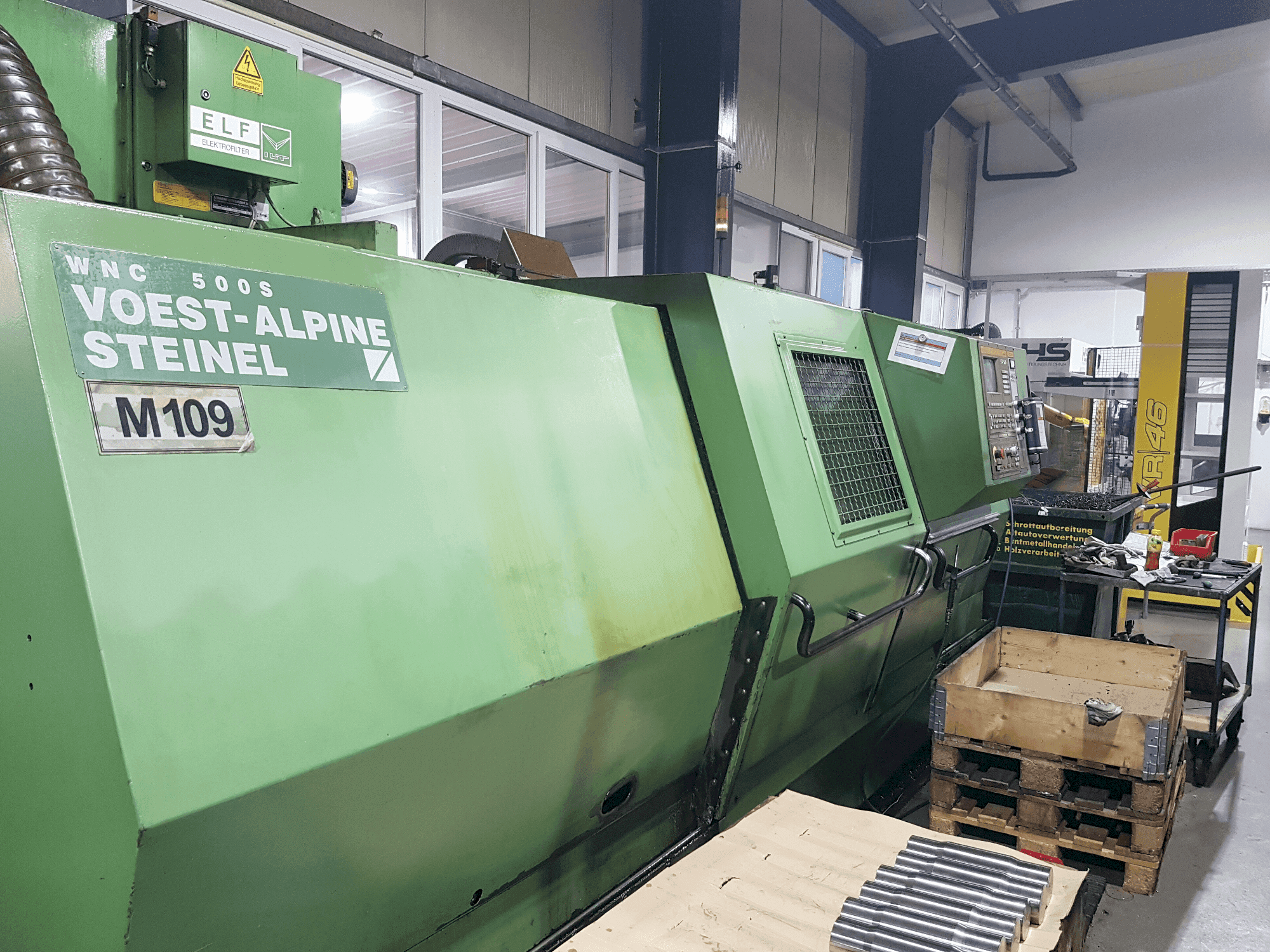

This VOEST ALPINE WNC 500 S/1.6 Lathe was manufactured in 1992 in Austria. It is equipped with 2-axis (Z-travel 1715mm, X-travel 305mm), a SIEMENS SINUMERIK control. This machine stands out for its stability and is in well maintained condition with direct availabilty. See original tech specs attached.

Overview

brand: Voest Alpine
year: 1992
MODEL: WNC 500 S/1.6
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Voest Alpine WNC 500 S/1.6

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK

Dimensions

Machine Weight: 10000 kg

Movement

X-axis Travel: 1715 mm
Z-axis Travel: 305 mm

Technical Specification

Spindle Power: 37.5 kW
Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Hydraulic power clamping device Type: OZRJ 175, FORKARDT (50mm / 5500 min -1)
Power-operated three-jaw chuck from SMW Type KNCS 315 65 3A 8 (315mm / 18800 daN)
Hydraulic steady rest SMW Type SLK 212 Z 80 V (20-120mm)
Face driver from NEIDLEIN
Chip transport and coolant device (1100 mm / 250l)

Machine Benefits

Technical Machine Benefits

Tip width: 160 mm
Max. Turning diameter between centers: 360 mm
Turning diameter over bed: 540 mm
Turning diameter over carriage: 450 mm
Spindle diameter in front bearing: 120 mm
Spindelkopf: din/gr. 55026 / 8
Shank diameter vdi holder: 40 mm

Extra Information

Height of turning spindle above floor: 1100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
