➤ Used Index G300 L YB For Sale | gindumac.com

Show in original language

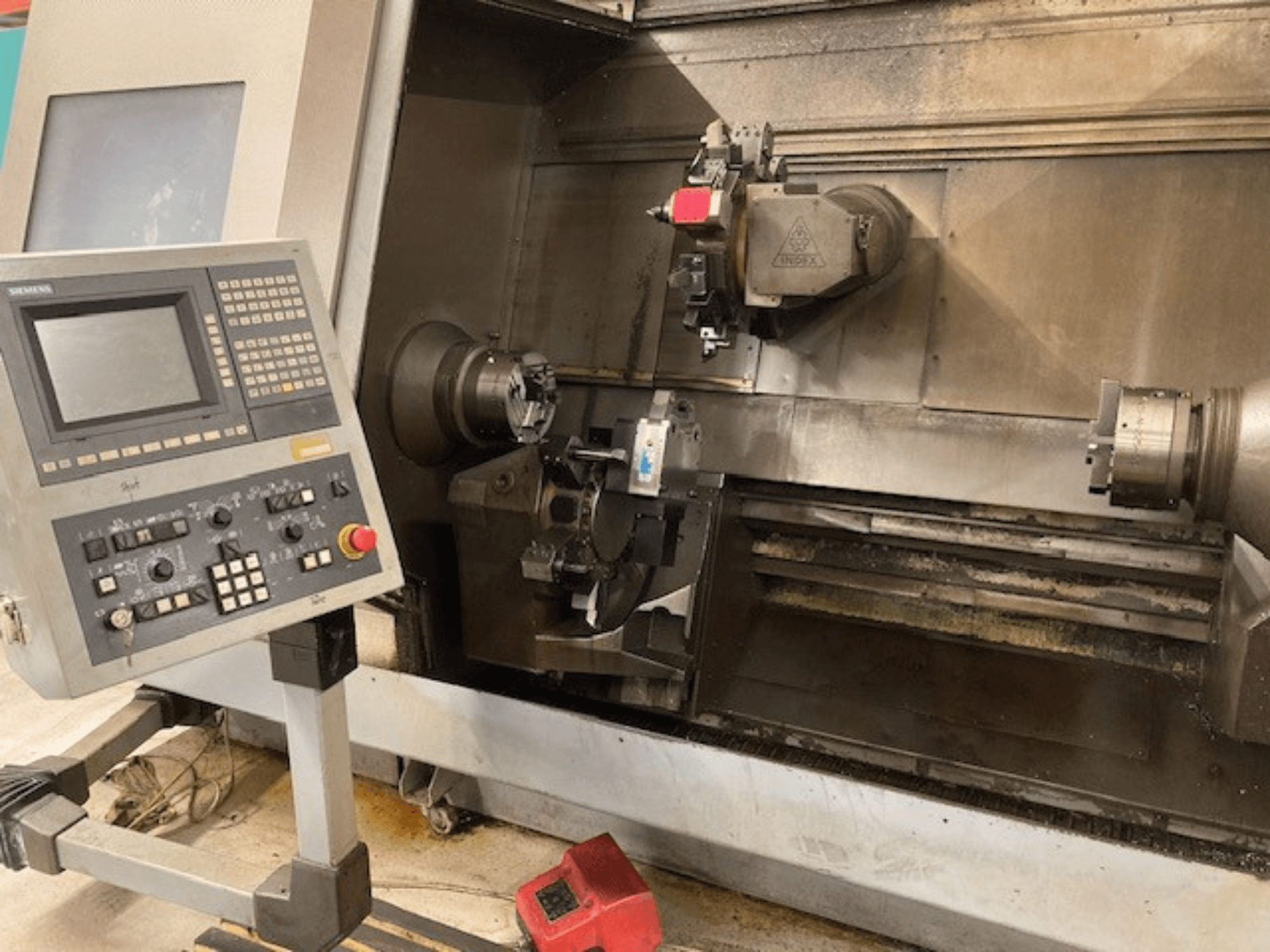

This 7-axis Index G300 L YB was manufactured in 1999. It features a maximum turning diameter of 270 mm and a maximum swing diameter of 590 mm. The machine includes a robust tool system with 12 stations and a milling spindle speed of up to 6000 rpm. If you are looking to get high-quality turning capabilities, consider the Index G300 L YB horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Index
year: 1999
MODEL: G300 L YB
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Index G300 L YB

Dimensions

Machine Height: 2100 mm
Machine Length: 7250 mm
Machine Weight: 8330 kg
Machine Width: 2150 mm

Movement

Number of Axes: 7
X-axis Travel: 140 mm
Y-axis Travel: 100 mm
Z-axis Travel: 1245 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: No
Spindle Power: 9.4 kW
Spindle Speed: 6000 RPM
Taper Size: VDI 30

Additional Information

Power supply: 3 phase / 50 Hz
Rated voltage: 400 V
Control voltage: 24 V
Rated current: 120 A
Rated power: 67 kW
Electrical cabinet weight: 710 kg
Spindle bore: 65 / 90 mm
Spindle bearing diameter (front): 110 / 140 mm
Spindle nose: ISO 702/1 size 6 / 8
Chuck diameter: 200 / 250 / 315 mm
Maximum turning diameter: 270 mm
Maximum swing diameter: 590 mm
Power (100% duty cycle): 19 / 28 / 43 kW
Power (40% duty cycle): 28 / 40 / 57 kW
Torque (100% duty cycle): 120 / 178 / 275 Nm
Torque (40% duty cycle): 178 / 255 / 363 Nm
Maximum speed: 5000 / 3500 rpm
Counter spindle bore: 65 / 90 mm
Counter spindle bearing diameter: 110 / 140 mm
Counter spindle nose: ISO 702/1 size 6 / 8
Counter spindle chuck diameter: 200 / 250 / 315 mm
Counter spindle power (100%): 19 / 28 kW
Counter spindle power (40%): 28 / 40 kW
Counter spindle torque (100%): 120 / 178 Nm
Counter spindle torque (40%): 178 / 255 Nm
Counter spindle max speed: 5000 / 3500 rpm
Minimum distance between spindles: 20 mm
Longitudinal travel: 770 / 1310 mm
Rapid traverse: 22.5 m/min
Rapid traverse X: 24 m/min
Rapid traverse Z: 30 m/min
Rapid traverse Y: 24 m/min
Tool system: VDI 30
Number of tool stations: 12
Max boring bar diameter: 50 mm
Milling spindle speed: up to 6000 rpm
Milling spindle power: 9.4 kW
Milling spindle torque: 19 Nm
Tailstock stroke: 630 mm
Tailstock quill diameter: 125 mm
Tailstock force: 7500 N
Hydraulic tank: 165 liters
Coolant tank: 300 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
