Index G300 retrofitted 2022

Photo Gallery

£ 90,995

gindumac price

(Ex works)

Get an official quote

Index - G300 retrofitted 2022DE-TUR-IND-1998-00003

Name: Index G300 retrofitted 2022
Brand: Index
SKU: DE-TUR-IND-1998-00003
Price: 90995 GBP
Availability: InStock

£ 90,995

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Index G300 retrofitted 2022 For Sale | gindumac.com

Show in original language

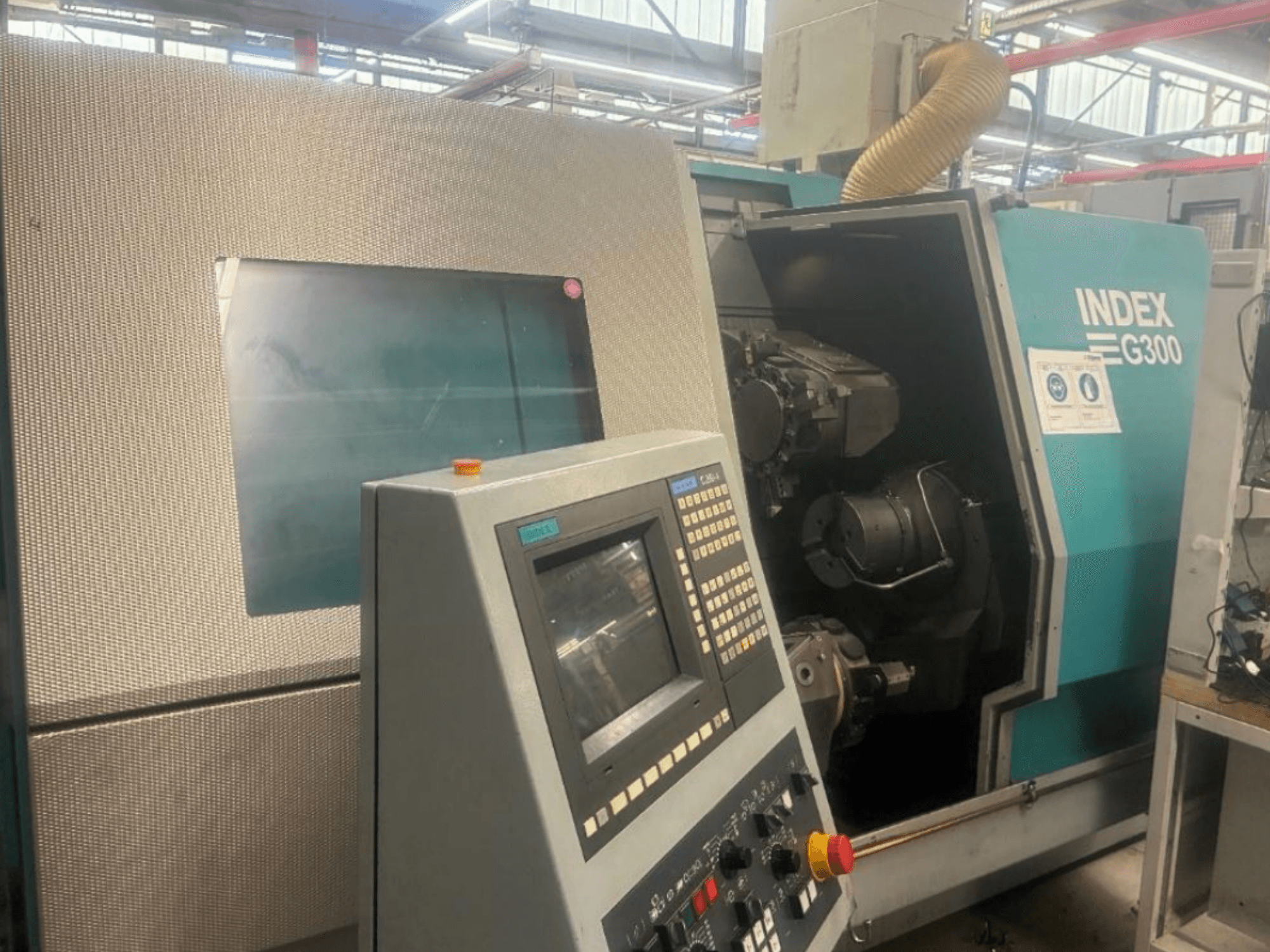

This 3-axis Index G300 was manufactured in 1998 and retrofitted in 2022. It features a maximum nominal turning diameter of 270 mm and a turning length of 710 mm. The machine has a maximum spindle speed of 5,000 RPM and a robust tool system with 12 positions. If you are looking to get high-quality turning capabilities, consider the Index G300 horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Index
year: 1998
MODEL: G300 retrofitted 2022
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Index G300 retrofitted 2022

Dimensions

Machine Weight: 6550 kg

Movement

Number of Axes: 3
X-axis Travel: 215 mm
Z-axis Travel: 710 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 43 kW
Spindle Speed: 5000 RPM

Additional Information

- RETROFIT IN 2022

- Max. Nominal Turning Diameter: 270 mm

- Turning Length: 710 mm

- Max. Swing Diameter: 590 mm

- Machine Weight: approx. 6,550 kg (Cabinet weight: 710 kg)

- Floor Space: approx. 8/10 m²

- Spindle Collet Clearance: 65 mm

- Spindle Diameter in Front Bearing: 110 mm

- Spindle Nose: ISO 702/1 Size 6

- Max. Torque (100%): 275 Nm

- Tailstock: Electrically movable

- Distance Between Centers: 740 mm

- Max. Pressing Force (electric): 10,000 N

- Compound Slide 1 XYZ (top) Travel (X-axis): 215 mm

- Compound Slide 1 XYZ (top) Travel (Y-axis): 180 mm

- Compound Slide 1 XYZ (top) Travel (Z-axis): 710 / 1,250 mm

- Feed Force (X-axis): 8,000 N

- Feed Force (Y-axis): 16,000 N

- Feed Force (Z-axis): 13,000 N

- Rapid Traverse Speed (X-axis): 20 m/min

- Rapid Traverse Speed (Y-axis): 7.5 m/min

- Rapid Traverse Speed (Z-axis): 20 m/min

- Axis Resolution (X-axis): 0.0005 mm

- Axis Resolution (Y-axis): 0.0005 mm

- Axis Resolution (Z-axis): 0.001 mm

- Number of Tools: 12

- Tool System: DIN 69880 (Ø30x55 mm)

- Complete documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
