➤ Used Weiler E30 Horizontal Lathe For Sale | gindumac.com

Show in original language

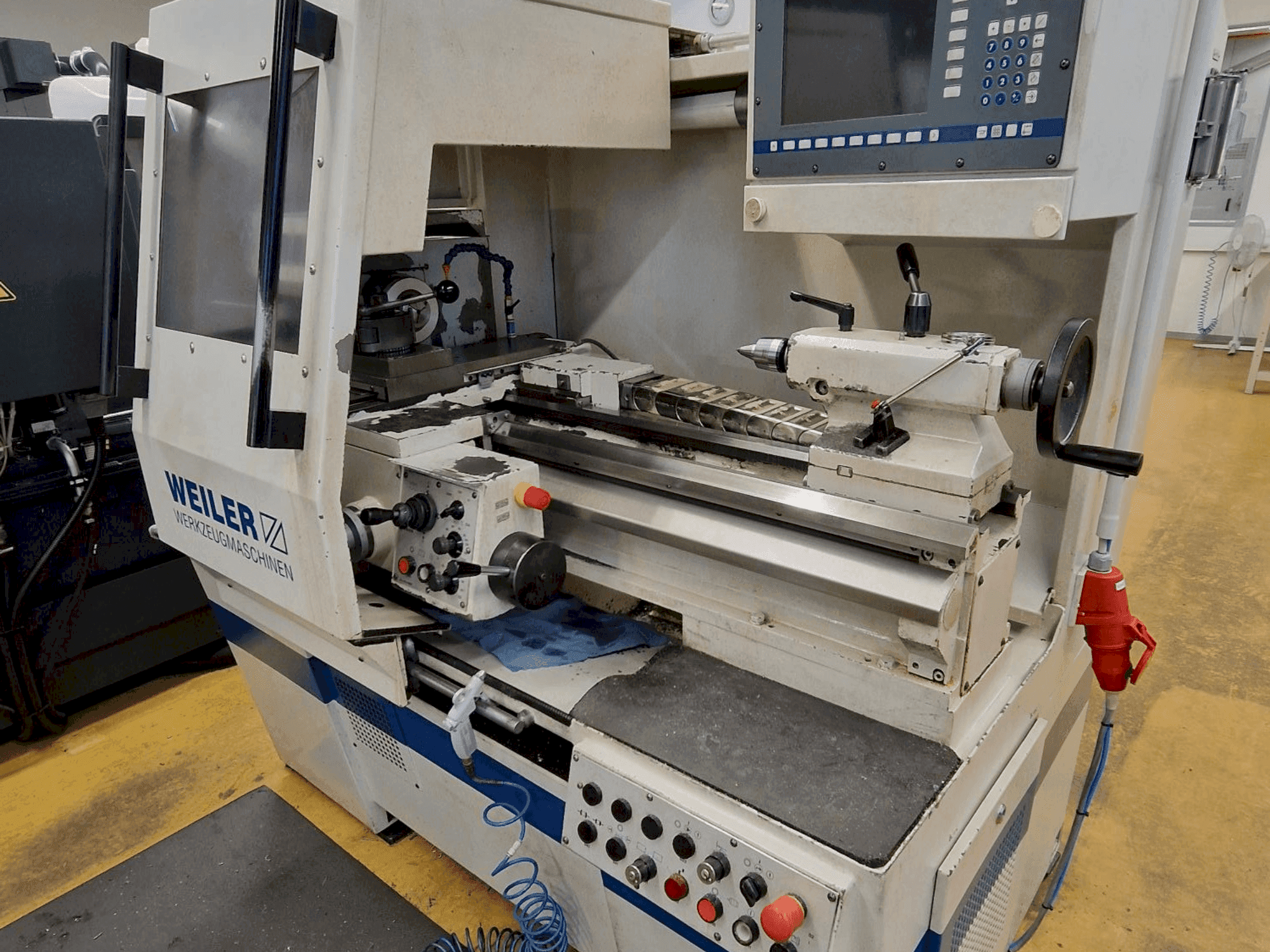

This Weiler E30 was manufactured in 1990. A robust horizontal turning machine featuring a spindle bore of 42mm and a swing diameter over bed of 330mm. It supports a wide range of thread cutting, from metric to DP thread, and includes a Multifix holder B. Ideal for detailed and versatile turning operations. Contact us for more information about this machine.

Overview

brand: Weiler
year: 1990
MODEL: E30
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Weiler E30

General Data

Measurements width: 1200 mm
Measurements depth: 1800 mm
Measurements height: 1700 mm
Machine weight: 1300 kg

Main drive

Spindle bore: 42 mm

Workpiece

Workpiece drm over bed: 330 mm

Additional Information

Additional equipment

Multifix holder B mounted
Fixed steady rest (option) clamping range: 15-100 mm
Moving steady rest (option) clamping range: 10-85 mm
Collets ranging from 3-28 mm (increments of 0.5 mm)
Tailstock with an MK3 chuck

Machine Benefits

Technical Machine Benefits

Drive power 100% / 60% ed: 9/11 kw
Max. Torque on the turning spindle: 180 nm
Total speed range: 1-4500 min⁻¹
Feed drive: three-phase ac feed drives
Feed range longitudinal: 0-20 mm/rev
Ellganggeschwindghell longitudinal/plan: 10/7. 5/5/3. 5 m/min
Quill diameter: 50 mm
Quill stroke: 110 mm
Inner taper of quill: mk 3

Extra Information

Swing diameter over facing slide: 160 mm Bed width: 240 mm Sliding movement of the facing slide: 180 mm Bed slide guide length: 395 mm Turning tool cross-section (height/width): 20 x 20 mm Spindle head according to DIN 55027 Gr. 5 Spindle diameter in the front bearing: 70 mm Inner taper of the main spindle: Mk 5 Workpiece Metric thread range: 0.1 - 400 mm Inch thread range: G/1" 1/4 - 56 Module thread range: 0.125 - 28 mm DP thread range: 1-224 G/" Number of threads max.: 50

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
