Mazak Quick Turn 10

Photo Gallery

Video gallery

£ 10,029

gindumac price

(Ex works)

Get an official quote

Mazak - Quick Turn 10DE-TUR-MAZ-1996-00001

Name: Mazak Quick Turn 10
Brand: Mazak
SKU: DE-TUR-MAZ-1996-00001
Price: 10029 GBP
Availability: InStock

£ 10,029

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Quick Turn 10 For Sale | gindumac.com

Show in original language

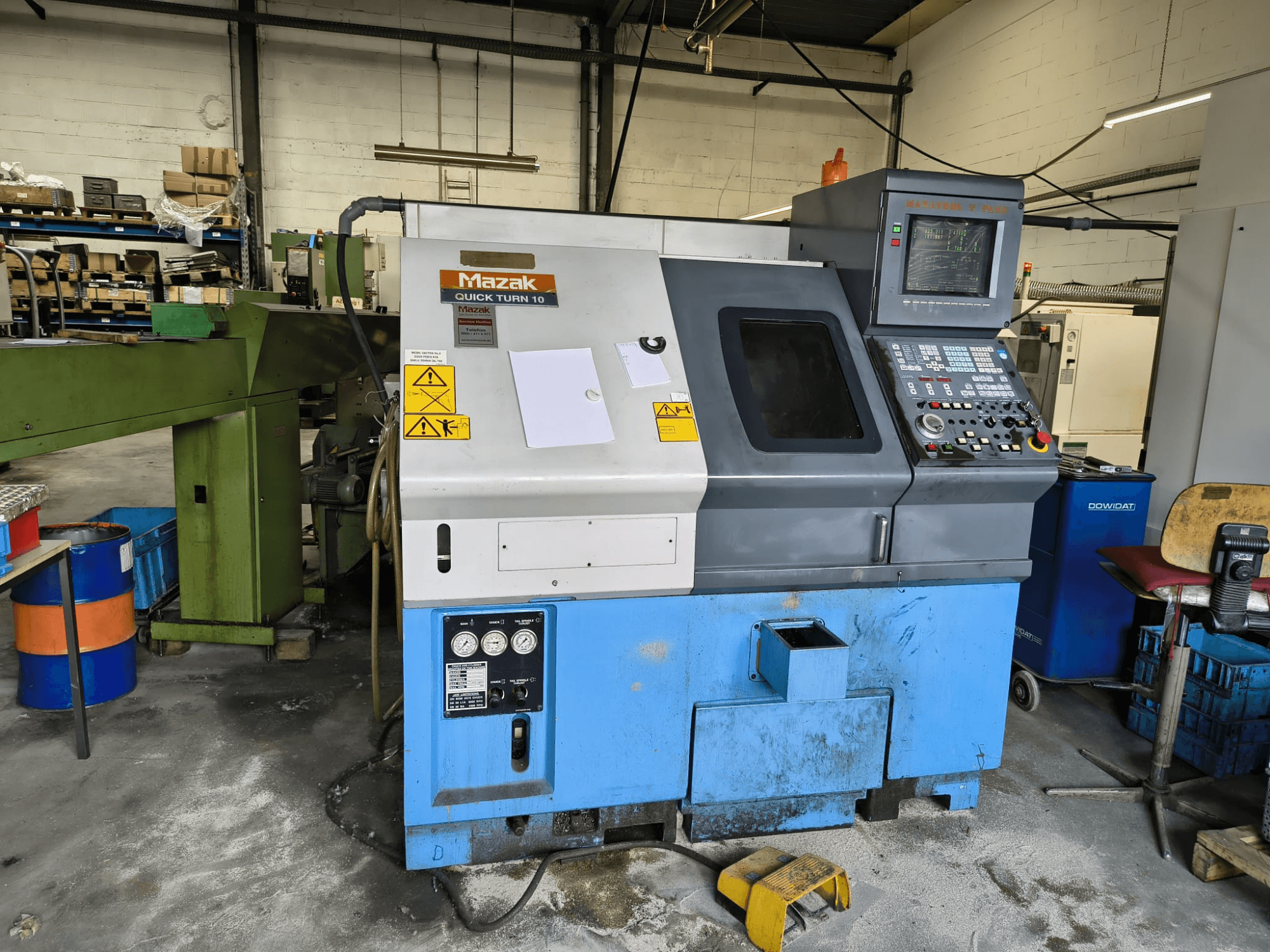

CNC Lathe manufactured in 1996. This Mazak Quick Turn 10 features a maximum turning diameter of 160 mm and a turning length of 256 mm. It is equipped with a robust 8-station drum turret and a main spindle speed of up to 6,000 rpm. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn 10 machine we have for sale. Contact us for further details.

Overview

brand: Mazak
year: 1996
MODEL: Quick Turn 10
production hours: 5736
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn 10

Control Unit

Control Brand: MAZATROL
Control Model: T PLUS

Dimensions

Machine Weight: 2600 kg

Movement

Number of Axes: 2
X-axis Travel: 100 mm
Z-axis Travel: 290 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Tool Stations: 8

Additional Information

- Model Designation: Quick Turn 10 (Nameplate: QTN-10)

- Year of Construction: 1996

- Control Unit: Mazak MAZATROL T PLUS

- Total Operating Hours (Gesamt / Betr. Zeit): 26,800 h 00 m 35 s

- Automatic Machining Hours (Aut. Zers.): 9,151 h 11 m 30 s

- Automatic Cycle Time (Aut. Abla.): 9,369 h 25 m 11 s

- Pure Cutting Time (Rei. Zers.): 5,736 h 15 m 38 s

- Max. Turning Diameter: 160 mm

- Circumferential / Swing Diameter: 300 mm

- Turning Length: 256 mm (Z-travel 290 mm)

- Tool Turret: 1 Turret, 8-station drum turret

- Tool Clamping: Block holder, shank 20 x 20 mm

- Main Spindle Speed: Up to 6,000 rpm

- Spindle Nose: A2-5

- Spindle Bore: 50 mm

- Drive Power: 7.5 kW

- Bar Capacity: Ø 42 mm (Standard chuck 6" / 165 mm)

- Tailstock: None visible / to be confirmed on inspection (optional MK 4)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
