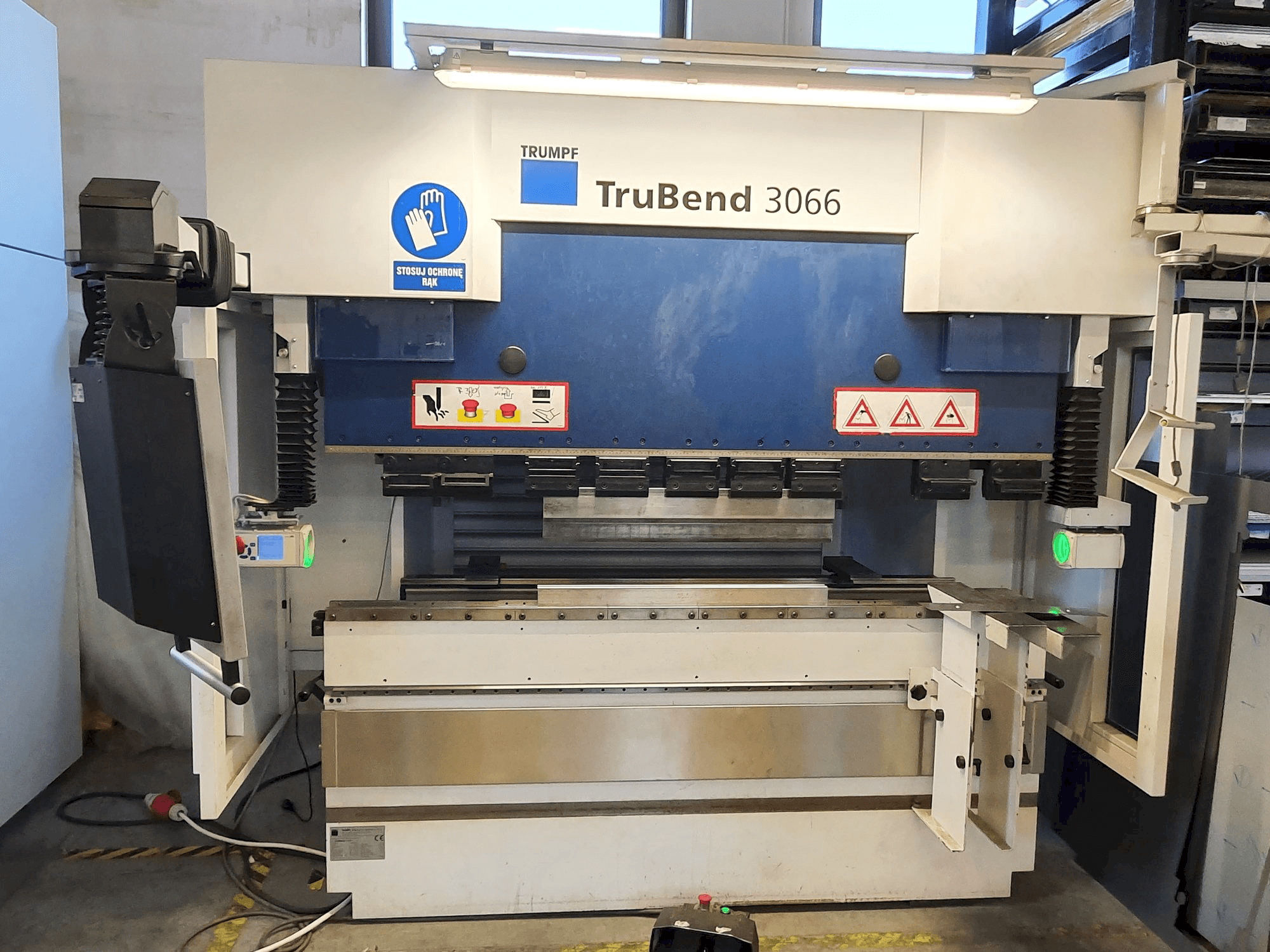

Front view of Trumpf TruBend 3066 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruBend 3066

Photo Gallery

TRUMPF - TruBend 3066PL-BEN-TRU-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Pre-Owned Trumpf TruBend 3066 Bending Machine

Show in original language

This Trumpf TruBend 3066 Bending Machine was manufactured in the year 2012 in Austria. It has a working record of 12940 working hours. It is equipped with a control unit of the same brand. It is a small 3 axis press brake (Y, Z, R - CNC and Z1 Z2 - manual). This machine can work with a pressing force up to 660 kN. It has a standard version 2-D Delem graphic control T3000 color and has the option of 3D-Visualisoerung TruBend Serie 3000. This machine presents very good conditions.

Overview

brand: TRUMPF
year: 2012
MODEL: TruBend 3066
production hours: 12940
application type: Bending
Location: Poland
machine type: Press Brake

Technical Information - TRUMPF TruBend 3066

General Data

Measurements width: 2600 mm
Measurements depth: 1750 mm
Measurements height: 2330 mm
Machine weight: 5400 kg

Main drive

Pressing force: 660 kN
Number of axis: 3

Table

Outer width: 80 mm

Media

Power consumption: 10 kVA

Additional Information

Additional equipment

Tools included

Machine Benefits

Qualitative Machine Benefits

Very good condition, on production.
Servicing always by trumpf poland
It is small 3 axis press brake (y, z, r - cnc and z1 z2 - manual)
There is a standard version 2-d delem graphic control t3000 color.
The machine has the option of 3d-visualisoerung trubend serie 3000

Technical Machine Benefits

Tool clamping system: promecam
Upper tool mathias s2033 / 28 / r 0,6 / 8 / h128 / 70t / m
Rolleritools lower tool h46 / 88 * / v = 8-12 / r 0. 5-0. 8 max 80t / m
Length of the bending edge is 2080 mm
Max distance between table and bending beam 470 mm
Speed 200 mm / s
Working speed 10mm / s
Return 180 mm / s
X axis speed 500 mm / s, r axis speed 200 mm / s
Y-axis stroke 200 mm, x axis displacement 600 mm, x-axis bumper range 880mm axis displacement r 340 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
