SUMITOMO SHI DEMAG - El-Exis S250/630-1600DE-INJ-SUM-2012-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used SUMITOMO SHI DEMAG El-Exis S250/630-1600 For Sale

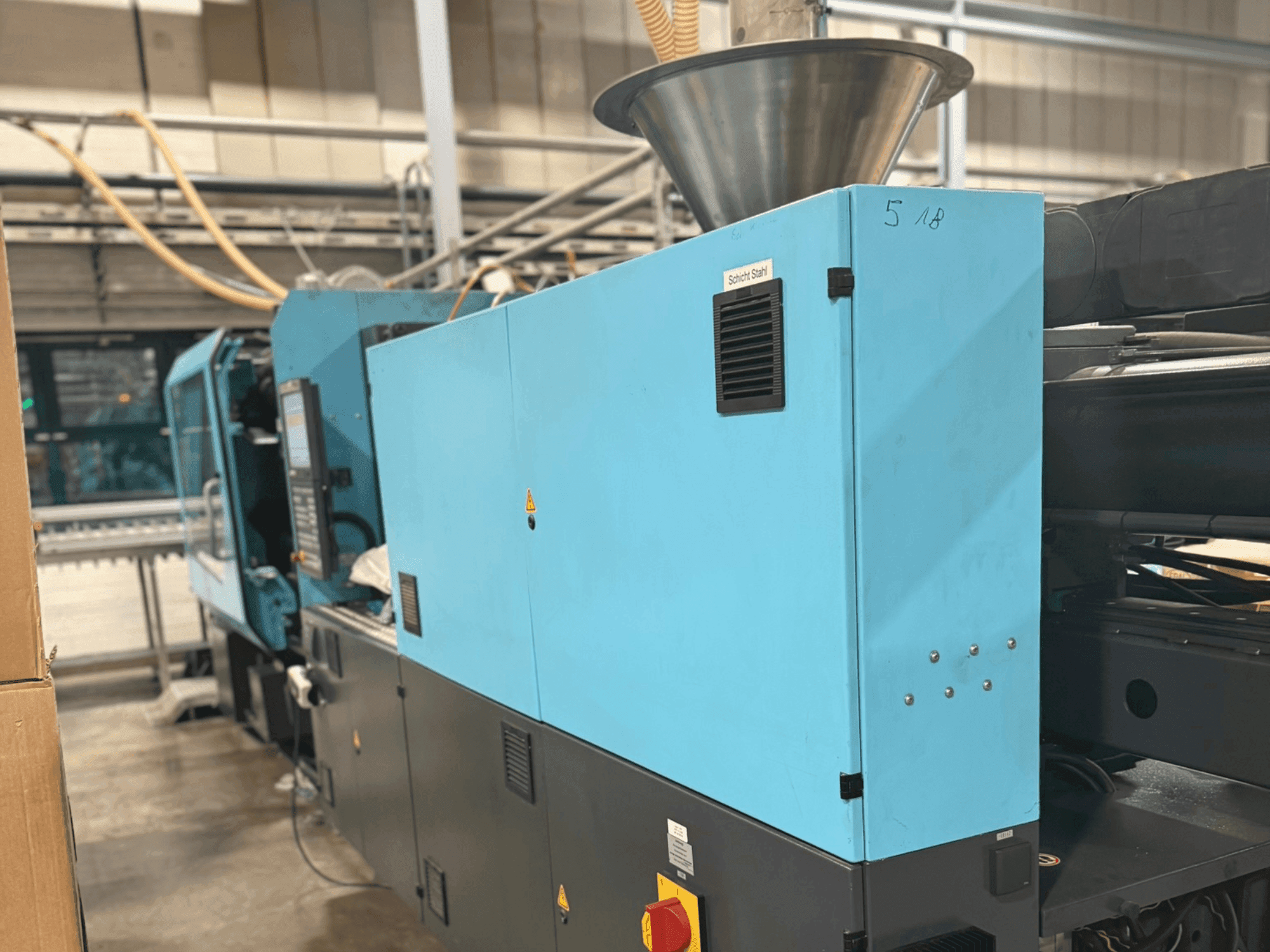

This SUMITOMO SHI DEMAG El-Exis S250/630-1600 was manufactured in 2012. It features a clamping force of 2500 kN, a screw diameter of 50 mm, and a shot weight maximum of 482 g. The machine has a dry cycle time of 1.2 seconds and a total installed power of 57.9 kW. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG El-Exis S250/630-1600 machine we have for sale. Contact us for more information.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 2012
- MODEL: El-Exis S250/630-1600
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - SUMITOMO SHI DEMAG El-Exis S250/630-1600
Dimensions
- Machine Depth: 6600 mm
- Machine Height: 2400 mm
- Machine Weight: 14900 kg
Technical Specification
- Clamping Force: 2500 kN
- Max. Shot Weight: 482 g
- Screw Diameter: 50 mm
Additional Information
Clamping unit size: 250
Holding force: 2750 kN
Platen size (H x V): 930 x 930 mm
Distance between tie bars (H x V): 630 x 630 mm
Ejector retraction force: 40 kN
Injection unit (size 1600)
Screw geometry: Standard
L/D ratio: 25
Injection rate (PS, without accumulator): 530 cm3/s
Metering stroke: 270 mm
Nozzle stroke (max): 110 mm
Material hopper capacity: 110 L
Electric metering drive: 13.1 kW
Cylinder heating: 14.8 kW
Dry cycle time (EUROMAP 6): 1.2 s
Dry cycle stroke (EUROMAP 6): 441 mm
Dimensions
Max drive overhang with nozzle contact: 184 mm
Max drive overhang with nozzle retraction: 1279 mm
The maximum injection weight in polypropylene is 482 g with a screw diameter of 50 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
