SUMITOMO SHI DEMAG - Systec 160/520-600 IT-INJ-SUM-2017-00001

Name: SUMITOMO SHI DEMAG Systec 160/520-600
Brand: SUMITOMO SHI DEMAG
SKU: IT-INJ-SUM-2017-00001
Price: 69612 GBP
Availability: InStock

£ 69,612

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used SUMITOMO SHI DEMAG Systec 160/520-600 For Sale

Show in original language

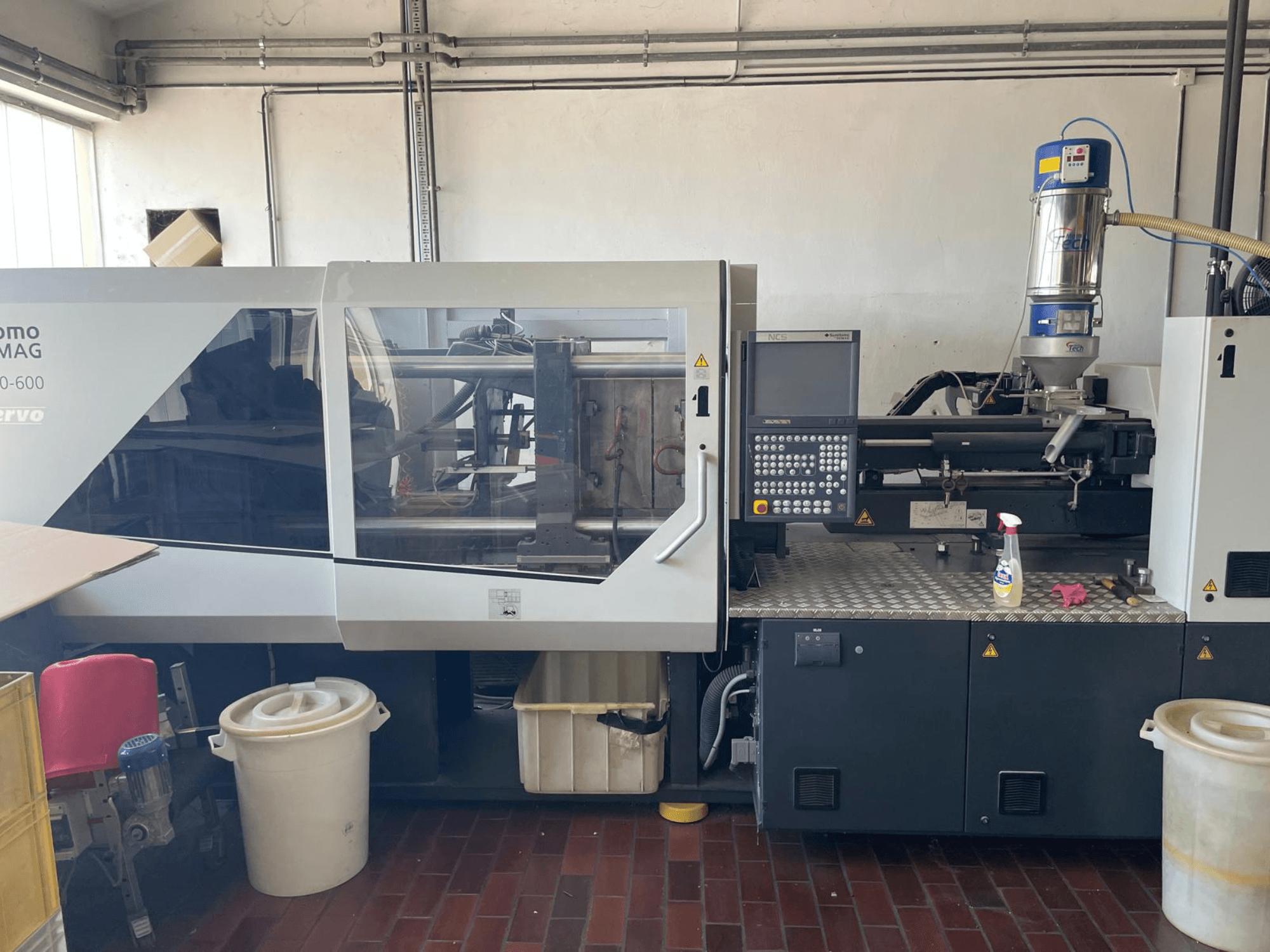

Hydraulic injection moulding machine manufactured in 2017. This SUMITOMO SHI DEMAG Systec 160/520-600 features a clamping force of 1600 kN and a tie bar distance of 520 mm. The machine includes an injection unit with a screw diameter of 40 mm, 45 mm, and 50 mm, and a maximum shot weight of 313 g. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG Systec 160/520-600 machine we have for sale. Contact us for further details.

Overview

brand: SUMITOMO SHI DEMAG
year: 2017
MODEL: Systec 160/520-600
production hours: 3548
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG Systec 160/520-600

Dimensions

Machine Weight: 6983 kg

Technical Specification

Clamping Force: 1600 kN
Max. Shot Weight: 294 g
Screw Diameter: 45 mm

Additional Information

Tie bar distance: 520 mm
Injection unit: 600
Control: S-Dias
Screw diameter: 45 mm
Injection pressure: 1914 bar
Shot volume: 294 cm³
Shot weight (PS): 254 g
Injection stroke: 469 mm
Installed heating capacity: 11.3 kW
Oil tank capacity: 290 l
Pump drive: 25 / 45 kW
Noise level: 69 dB(A)
Dimensions: 5.6 x 2.1 m
Main electrical connection: 3/400 V, 50 Hz, 167 A
Max pressure: 190 bar
Platen size: 770 x 770 mm
Max mold weight: 1300 kg
Max opening stroke: 500 mm
Min/Max mold height: 275 / 685 mm
Distance between platens: 1085 / 1185 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
