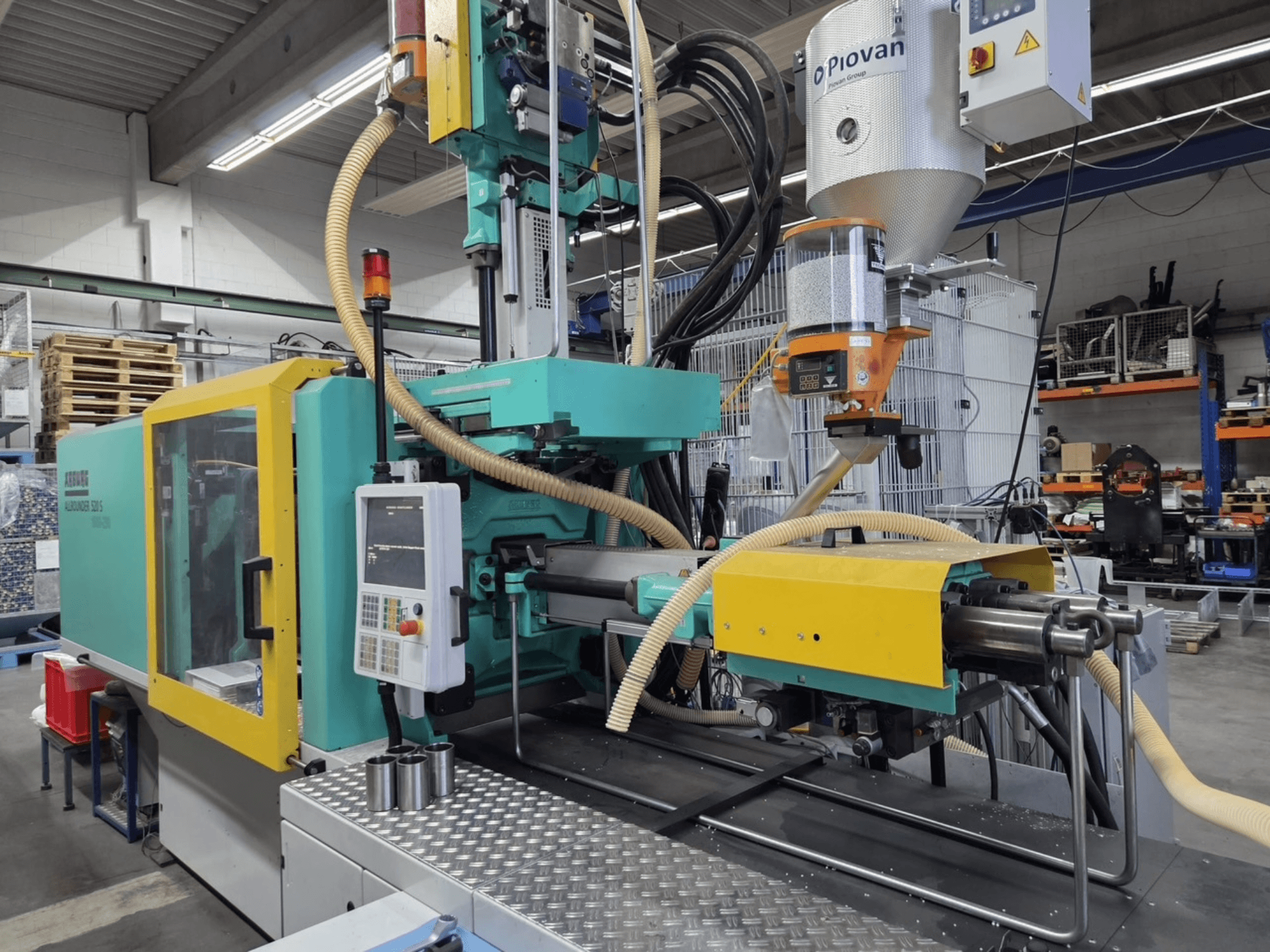

Arburg - Allrounder 520 S 1600-290 / 290DE-INJ-ARB-2015-00004

• Injection units and plasticizing

  • 1st injection unit:

    • Complete thermoplastic cylinder, 30 mm, highly wear-resistant

    • Nozzle contact force controlled, programmable

    • aXw Control ScrewPilot

  • 2nd injection unit:

    • 2nd injection unit 290, vertical

    • Complete thermoplastic cylinder, 30 mm, highly wear-resistant

    • Open nozzle 30 mm with nozzle tip; extended nozzle tip +20 mm; radius 15

    • Heating band for open nozzle

    • Nozzle contact force controlled, programmable

    • aXw Control ScrewPilot

  • Standard worm gear coupling; coupling geometry: double-sided

  • Multi-component processing; parting line setup on short runners for 2nd injection unit

  • Injection closing with mold (“flying injection”)

• Drive, hydraulics, and cooling

  • Drive unit with 30 kW motor

  • 65 l/min charging flow rate

  • Pressure accumulator module, 64 l storage volume (max. 230 bar); accumulator drive

  • Continuous oil cooling and filtration; increased cooling capacity

  • Machine cooling circuits controlled

• Clamping system, ejector, and core pulls

  • Clamping plate set; central Ø 125 mm

  • Minimum installation height 450 mm (extended)

  • Ejector pressure P/Q controlled (requires T2); ejector cross

  • Core pulls:

    • Core pull 1 simultaneous movement (P/Q controlled, programmable)

    • Core pull 2 simultaneous movement (P/Q controlled, programmable)

    • Core pull 3 simultaneous movement (P/Q controlled, programmable)

    • Pneumatic core pull control 4 incl. pressure reducer

    • Electric core pull control 1 (requires VE 436/00)

• Tool pneumatics/hydraulics connections

  • Electrical connection pneumatic NVD 1 (in tool)

  • Electrical connection pneumatic NVD 2 (in tool)

  • Electrical and hydraulic connection NVD 3 (in tool)

  • Electrical and hydraulic connection NVD 4 (in tool)

  • Blow-out device 1 with pressure reducer; connection for blow-out device 2

• Cooling water and mold circuits

  • Shut-off valve for cooling water (inlet); shut-off valve for cooling water (inlet 2)

  • Cooling water filter 100 µm (inlet)

  • 3 cooling water circuits to fixed mold plate; 3 cooling water circuits to moving mold plate

  • Basic equipment for 2nd cooling water distributor (manual) with 7 free cooling circuits

• Control and electrics

  • Selogica direct control; technology level

  • Fuse protection for heating circuits (1–6 with 16 A)

  • 15 electrical heating circuits for mold heating

  • Boost function for heating circuits (hot runner)

  • Upper guard open, raised to safety clearance

  • Fault indicator with flashing light

  • Operator authorization with chip card (EUROMAP 65)

• Interfaces and connectivity

  • Interface for conveyor belt (machine base)

  • Prepared for six-axis robot with SELOGICA interface

  • Robot interface (EUROMAP 67), 50-pin

  • Emergency stop interface (24-pin, 2-channel)

  • Basic equipment for electric axis control

  • Host computer interface OPC-UA

  • Temperature control unit interface (20 mA); temperature control cable HB-THERM

  • Serial printer interface USB; external USB keyboard interface

  • CompactFlash interface for data storage

  • Interface for color mixing unit (1st and 2nd injection unit)

  • Socket strip 1 CEE + 1 Schuko (additional)

  • Socket strip 3 CEE + 3 Schuko (separate supply)

  • Interface for safety gate (EUROMAP 73); connector for safety gate interlock (EM73)

• Equipment packages

  • Tool temperature control

  • Axis monitoring

  • Tool movements

  • Start-up and shutdown

Additional equipment

• No external accessories explicitly included in the list.

• Machine preparation/interfaces available for external equipment:

  • Six-axis robot (SELOGICA prep, EUROMAP 67)

  • Conveyor belt interface

  • Temperature control unit interface (20 mA)

  • Color mixing unit interface (incl. 2nd injection unit)

  • Safety gate interface (EUROMAP 73)
