➤ Used SUMITOMO SHI DEMAG Systec 120/470-430 For Sale

Show in original language

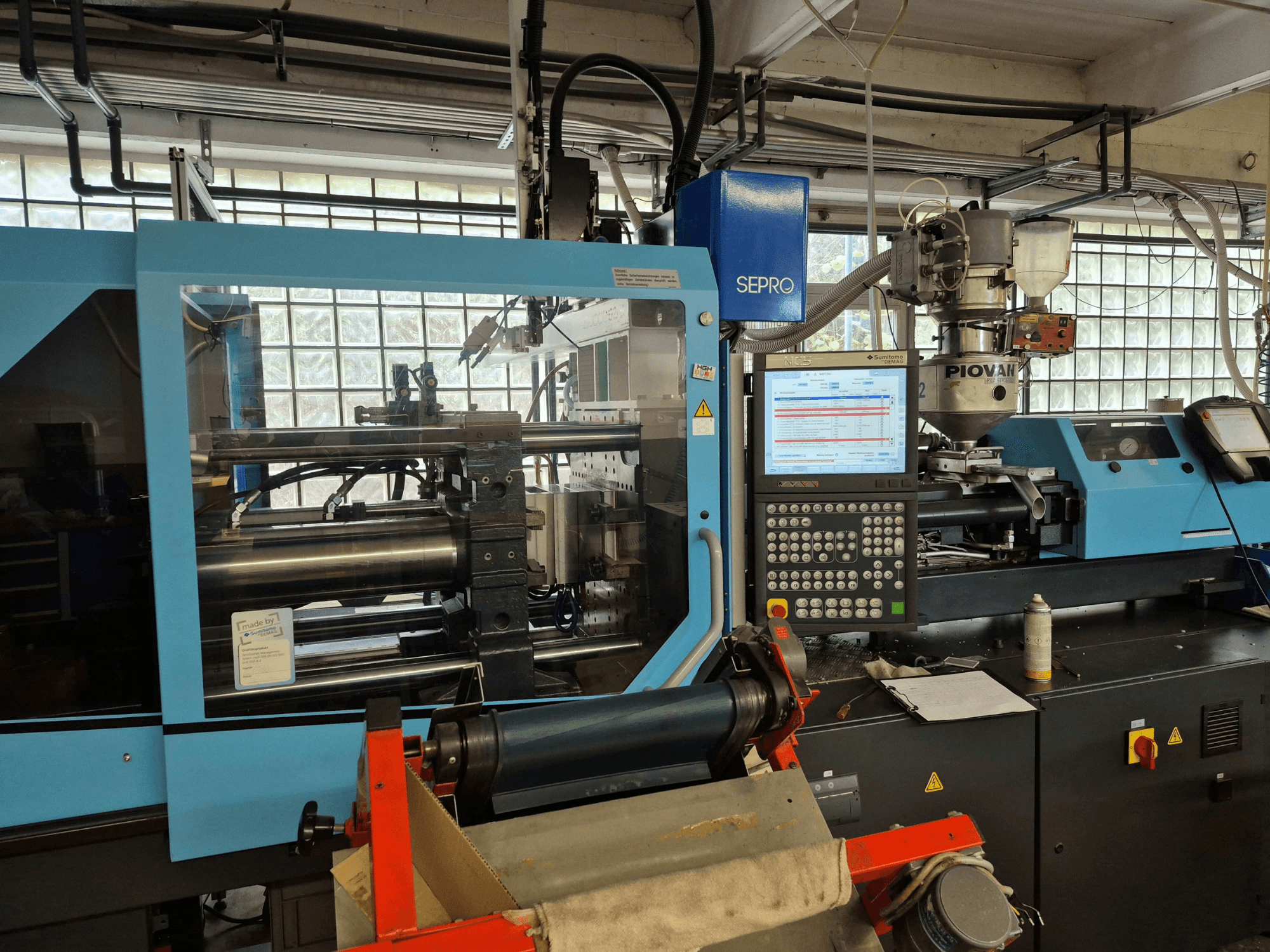

Hydraulic injection moulding machine manufactured in 2013. This SUMITOMO SHI DEMAG Systec 120/470-430 features a clamping force of 120 t and a screw diameter of 40 mm. It offers a maximum metering volume of 231 cm³ and a distance between tie bars of 470 x 470 mm. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG Systec 120/470-430 machine we have for sale. Contact us for further details.

Overview

brand: SUMITOMO SHI DEMAG
year: 2013
MODEL: Systec 120/470-430
production hours: 23000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG Systec 120/470-430

Technical Specification

Clamping Force: 1200 kN
Screw Diameter: 40 mm

Additional Information

- Max. Specific Injection Pressure: 2025 bar

- Max. Metering/Dosing Volume: 231 cm³

- Mold Height Min./Max.: 250 / 850 mm

- Distance Between Tie Bars: 470 x 470 mm

- Centering Ring Diameter (Ejector/Nozzle): 125 mm

- Core Pull: 1 circuit via switching valve on movable mold platen (Q-independent)

- Operating Hours: Drives 23,000 hrs

- Pump Drive Power: 22.0 kW

- Power Supply: 400 V +-10% / 50 Hz, 3 Ph + N + PE

- Oil Cooler Max Water Temp: 25°C

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
