➤ Used SUMITOMO SHI DEMAG Systec 25/320-80 For Sale

Show in original language

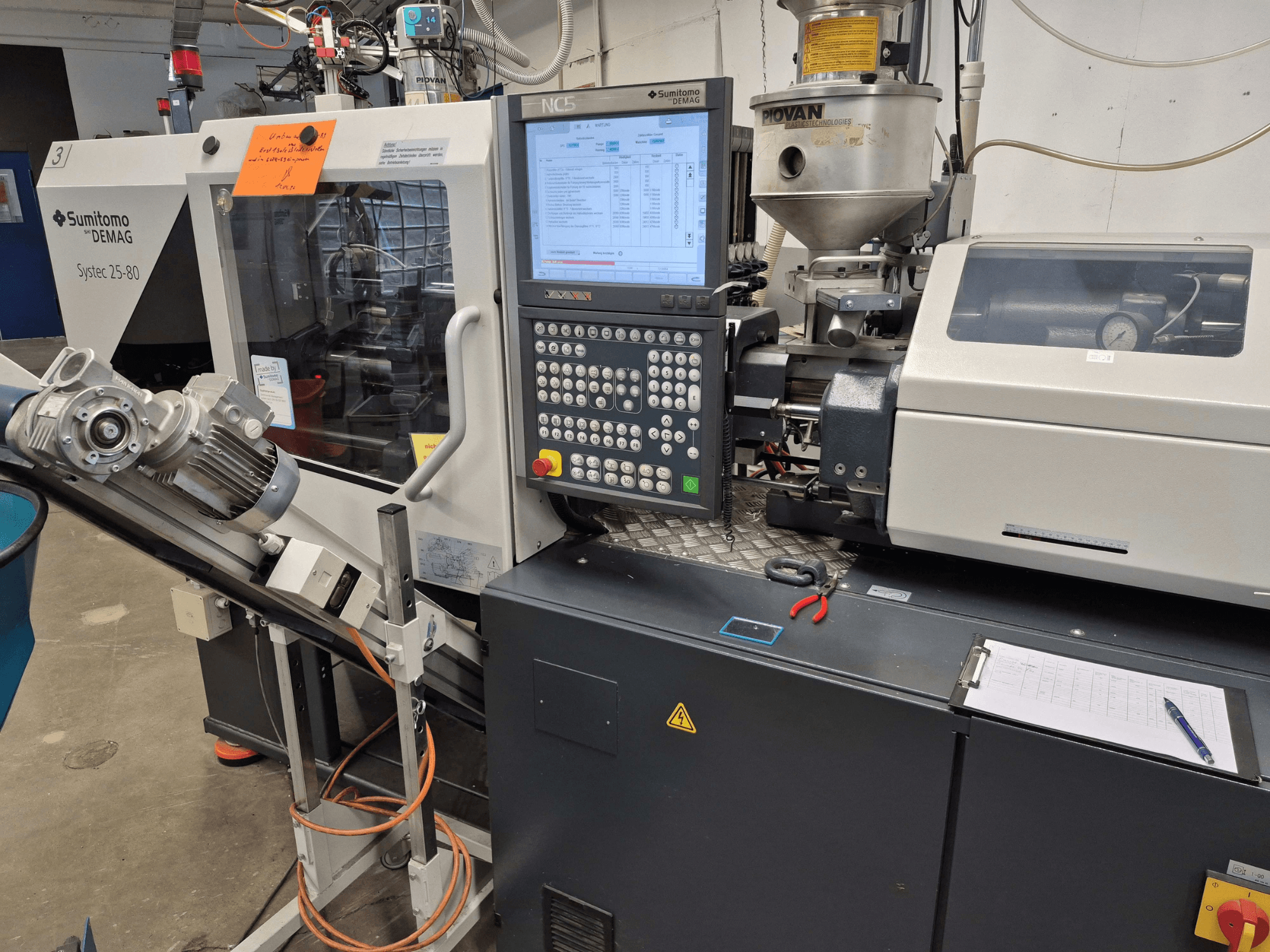

Hydraulic injection moulding machine manufactured in 2011. This SUMITOMO SHI DEMAG Systec 25/320-80 features a clamping force of 25 t and a screw diameter of 18 mm. It offers a maximum metering volume of 23 cm³ and a mold height range of 130 mm to 480 mm. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG Systec 25/320-80 machine we have for sale. Contact us for further details.

Overview

brand: SUMITOMO SHI DEMAG
year: 2011
MODEL: Systec 25/320-80
production hours: 46000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG Systec 25/320-80

Technical Specification

Clamping Force: 245 kN
Screw Diameter: 18 mm

Additional Information

- Max. Specific Injection Pressure: 2868 bar

- Max. Metering Volume: 23 cm³

- Mold Height: 480 mm

- Min. Mold Height: 130 mm

- Distance Between Tie Bars: 320 x 320 mm

- Centering Hole Diameter (Ejector/Nozzle): 110 mm

- Maintenance Group: 1

- Core Pull: 1

- Operating Hours: 46,000 hrs (Pump)

- Pump Drive Power: 17.5 kW

- Power Supply: 400 V ±10% / 50 Hz, 3 Ph+N+PE

- Cooling Circuit: Open, separated water connection for mold and machine cooling

- Cylinder / Screw: Bimetallic cylinder, wear-resistant 18 mm screw with 3-piece non-return valve

- Nozzle: Open nozzle M24x1.5, flat radius, 2.0 mm bore

- Integrated Sockets: 2 x Schuko 1Ph/230V/10A, 2 x IECEE 3Ph/400V/16A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
