STAR MICRONICS - SB-20R-GDE-TUR-STA-2024-00001

Additional equipment

• Linear slide
• 6-fold tool holder shank 12x12mm
• 2 cross drilling attachments ER11
• 2 cross drilling units ER16
• Drilling device for front/rear face machining with 4 drilling quills (2x ER16 single, 2x ER16 double)
• Drive unit for tools for main side machining
• ER16 front drilling unit for rear end machining with reinforced bearing
• 4 additional free M commands for valve control of the HP valve positions

Machine Benefits

Qualitative Machine Benefits

• 5 cross drilling units can be used if the 4-fold drilling unit is not used
• Rear end machining with 4 machining stations er16
• Drive unit for tools for rear end machining on 4 stations
• 4 additional m commands for valve control of the hp valve positions
• Hp pressure levels: up to 8 possible

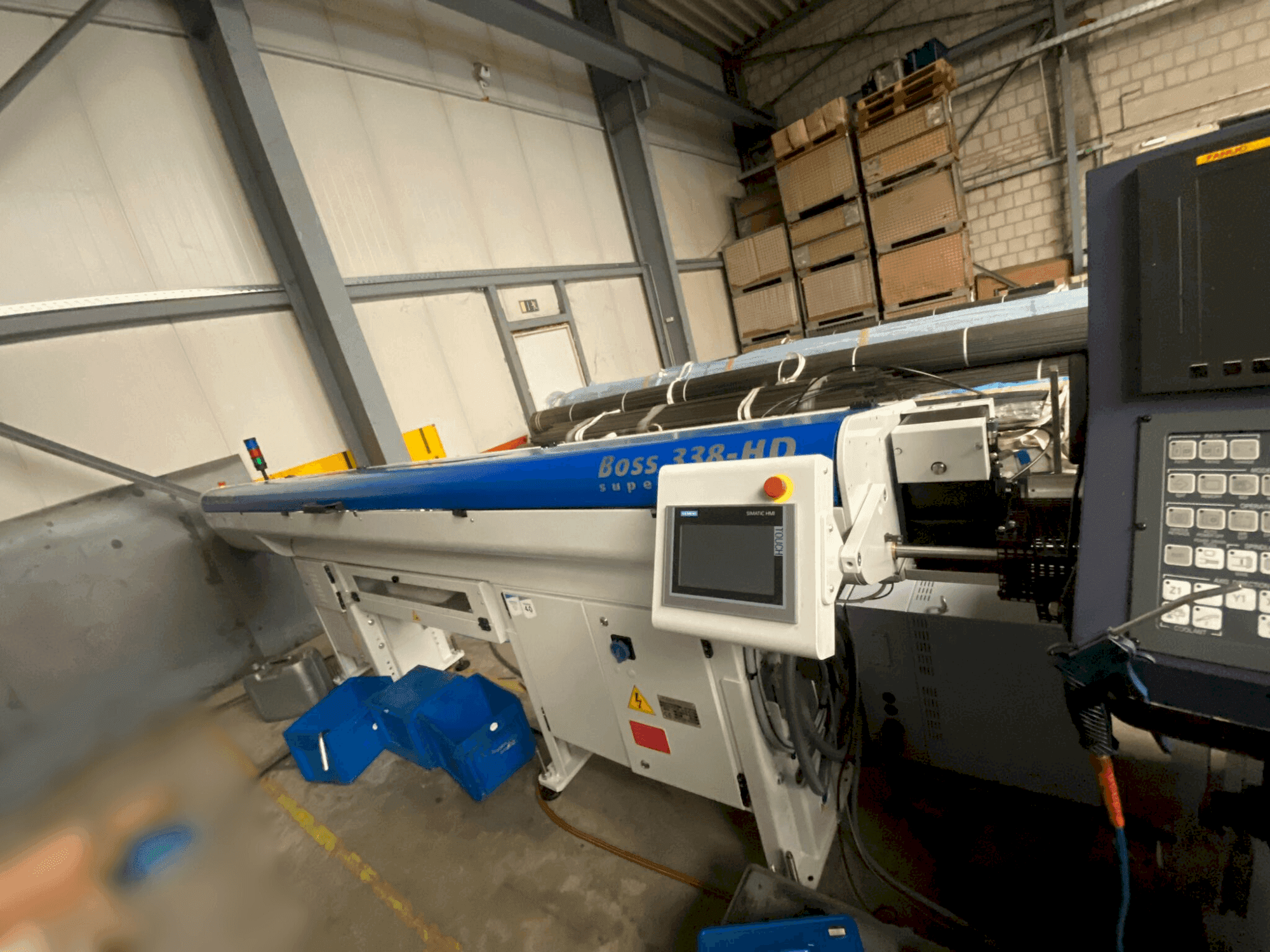

• Loading magazine iemca boss 338/32 h: channel diameter 24 mm, Ø 3-38 mm, slide diameter 23 mm

Technical Machine Benefits

• Counter spindle for rear end machining
• Cut-off steel breakage protection
• Mechanical workpiece ejection device
• Part ejection control
• Blow-out device for counter spindle
• Workpiece collector
• Workpiece conveyor for discharging the workpiecesworkpiece conveyor for discharging the workpieces
• Separate coolant tank with level and flow monitoring
• Automatic centralised lubrication with level monitoring
• Tool box with special tools

Extra Information

Machine still under power
