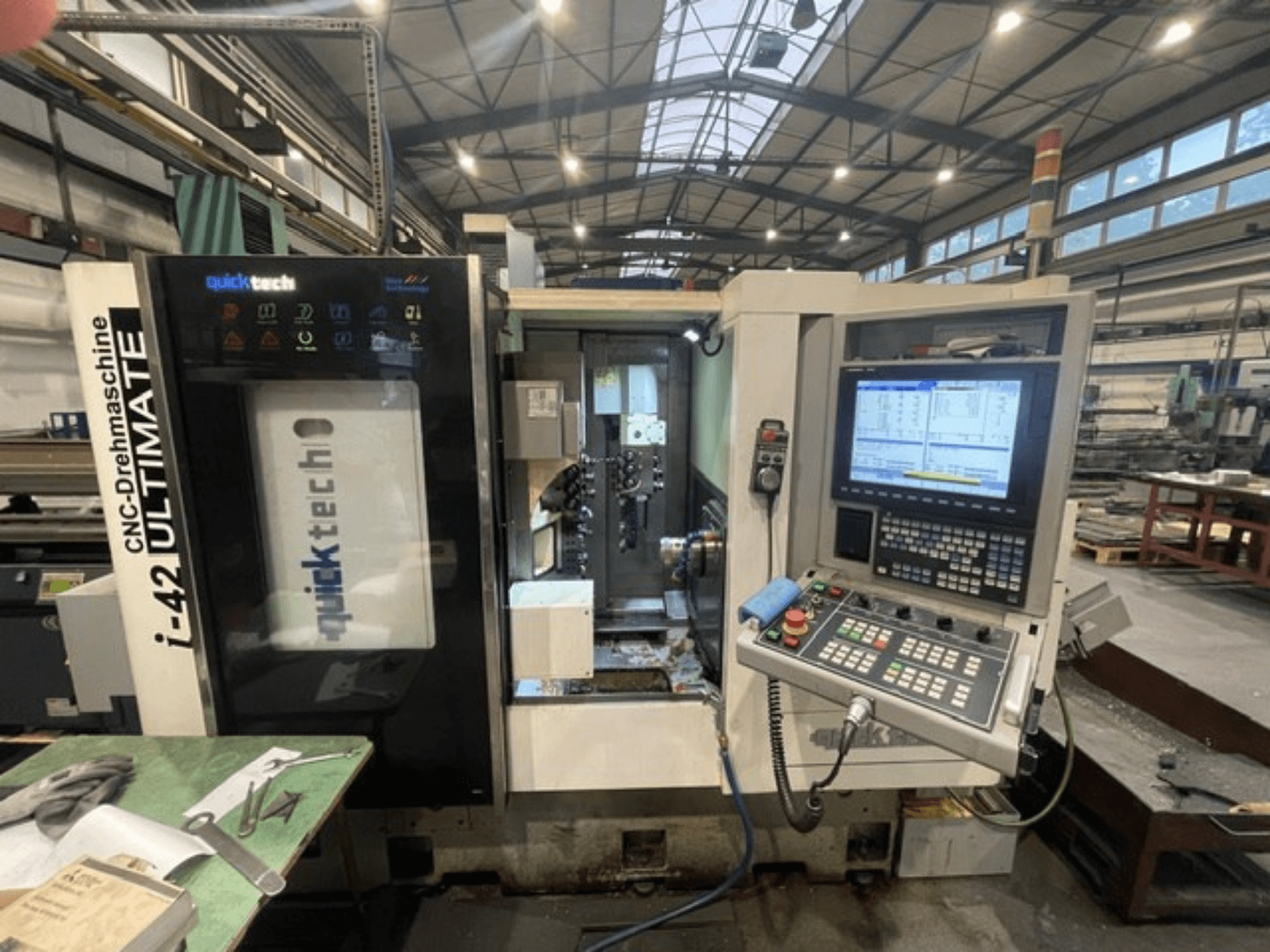

This 7-axis Quick-Tech I-42U was manufactured in 2015. It features a maximum bar diameter of 42 mm and a maximum machining length of 250 mm. The machine is equipped with a powerful spindle speed of 6000 rpm and includes an automatic bar feeder. If you are looking to get high-quality turning capabilities, consider the Quick-Tech I-42U swiss type turning machine we have for sale. Contact us for further details.
Overview
- brand: Quick-Tech
- year: 2015
- MODEL: I-42U
- production hours: 5159
- application type: Turning
- Location: Czech Republic
- machine type: Swiss Type Turning Machine
- control unit brand: MITSUBISHI
Technical Information - Quick-Tech I-42U
Control Unit
- Control Brand: MITSUBISHI
Dimensions
- Machine Height: 1900 mm
- Machine Length: 3500 mm
- Machine Weight: 4200 kg
- Machine Width: 1900 mm
Movement
- Number of Axes: 7
- X-axis Travel: 150 mm
- Y-axis Travel: 385 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 100 mm
- Spindle Power: 7.5 kW
- Spindle Speed: 6000 RPM
Additional Information
Control
Mitsubishi M720 CNC
15" color LCD display
Door with LED indicators
Operational signaling and automatic alarm switch
Built-in communication/interface with bar feeder
CE mark
Guide/manual
Main spindle
Bearing diameter: 100.0 mm
Max bar dia.: 42 mm
Max machining length: 250.0 mm
Collet: DIN-173E42B
Spindle nose: A2-5
Spindle bore: 44.0 mm
C axis: 0.001°
Counter spindle
Max bar dia.: 42 mm
Max machining length: 100 mm
Collet: DIN-173E-42B
Spindle nose: A2-5
Speed: 4000 rpm
Power: 3.7 kW
C1 axis: 0.001°
Travels and axes
X: 150.0 mm | Y: 385.0 mm | Z: 250.0 mm | B: 360°
X1: 400.0 mm | Y1: 400.0 mm | Z1: 300.0 mm
Servo motors (X, Y, Z, X1, Y1, Z1): Mitsubishi AC Servo, 1.5 kW each
Indexing from tool position: 0.3 s
Tool change time (cut/cut): 0.6 s
Tool head (main)
Combined type
Tools: 6 external, 5 internal
External tool size: 20.0 × 20.0 mm
Max internal tool: ER20 / 20.0 mm
Driven tools (main)
B axis with 12 driven tools
Power: Mitsubishi AC Servo, 15 kW
Speed: 4000 rpm
Max tool size: ER-20
Max drilling dia.: 12 mm
Max thread: M10 × 1.5
Tool head (counter)
Combined type
Tools: 5 external, 9 internal
External tool size: 20.0 × 20.0 mm
Max internal tool: ER20 / 20.0 mm
Driven tools (counter)
Number: 6 (3 axial, 3 radial)
Power: Mitsubishi AC Servo, 1.5 kW
Speed: 4000 rpm
Max tool size: ER-20
Max drilling dia.: 12 mm
Max thread: M10 × 1.5
Hydraulic system
Hydraulic motor: 0.75 kW
Max system pressure: 50 kg/cm3
Lubrication system
Lubrication motor: 25 W
Tank capacity: 2 l
Cooling system
Coolant tank: 200 l
Coolant motor: 1/4 HP
Coolant pressure: 2.5 MPa
Length: 2900 mm (3500 mm including chip conveyor, which is part of the machine)
Standard equipment included
Basic equipment with tools
Tool holder and collet set
Automatic lubrication
Chip remover/chip conveyor (integrated, per dimensions note)
Workpiece removal (shovel) – if integrated
15" color LCD display
Operational signaling and automatic alarm switch
Guide/manual
Door with LED indicators
Additional equipment
Automatic bar feeder, 1200 mm length
Workpiece removal conveyor
Workpiece removal shovel (if provided as an external unit)
Transformer 380–440 V, 60/50 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
