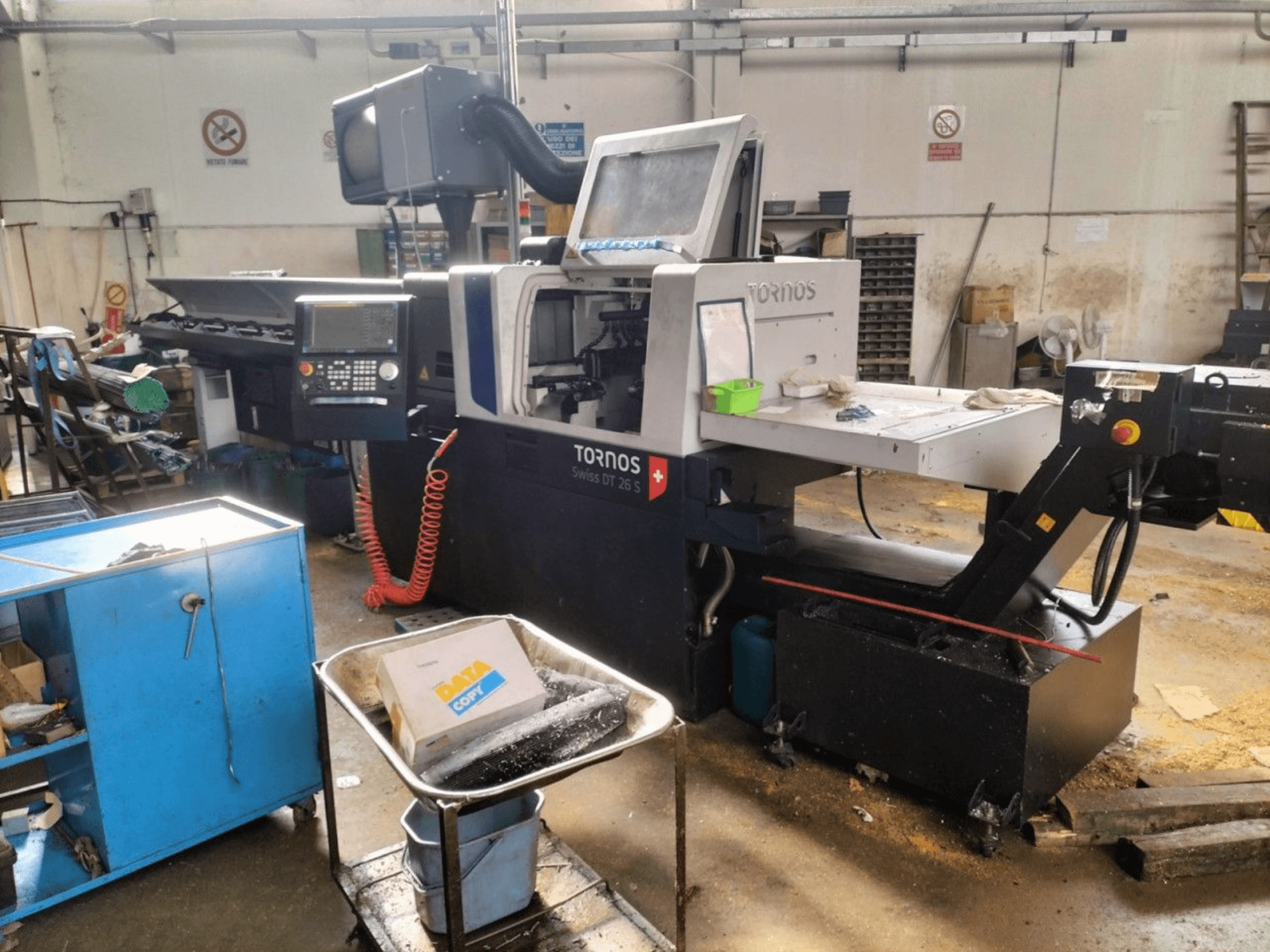

This 5-axis TORNOS Swiss DT 26 S was manufactured in 2022. It features a maximum bar capacity of 25.4 mm and a main spindle speed of 10,000 rpm. The machine includes a total tool capacity of up to 22 tools and live tool positions of up to 8. If you are looking to get high-quality turning capabilities, consider the TORNOS Swiss DT 26 S swiss type turning machine we have for sale. Contact us for further details.
Overview
- brand: TORNOS
- year: 2022
- MODEL: Swiss DT 26 S
- application type: Turning
- Location: Italy
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - TORNOS Swiss DT 26 S
Control Unit
- Control Brand: FANUC
- Control Model: Series 0i-TF Plus
Dimensions
- Machine Height: 1720 mm
- Machine Length: 2166 mm
- Machine Weight: 2400 kg
- Machine Width: 1300 mm
Movement
- Number of Axes: 5
Technical Specification
- Counter Spindle: Yes
- Max. Bar Diameter: 25.4 mm
- Spindle Power: 10.5 kW
- Spindle Speed: 10000 RPM
Additional Information
Max bar capacity: 25.4 mm (up to 26 mm depending on collets)
Main spindle (Z1): 10,000 rpm; 8.2 kW nominal / 10.5 kW peak; 26 Nm; liquid-cooled
Counter-spindle (X4/Z4): 10,000 rpm; 1.5 kW nominal / 2.2 kW peak
Linear axes: 5 (X1, Y1, Z1, X4, Z4)
C-axes: 2 (C1 on main spindle, C4 on counter-spindle)
Operation mode: With or without guide bush (direct drive guide bush)
Total tool capacity: up to 22 tools
Live (driven) tool positions: up to 8
Electrical connection: 400 V, 3-phase, 50/60 Hz
Installed power: 24 kVA
Nominal current: 35 A
Fuse rating: 50 A
Auxiliary voltage: 24 V DC
Control voltage: 220 V
Additional equipment
Bar feeder: Tornos Robobar SBF 326
Bar diameter range: 3–26 mm
Guidance: Hydrodynamic oil-filled guide channels
Interface: Delta HMI touch screen independent control panel
Quick change: Tool-less replacement of pusher and guide bushings
Chip conveyor: Ring Sun RSCW50
Model: RSCW50; Serial: TA39614110
Motor power: 0.2 kW
Operating voltage: 400 V, 50/60 Hz
Weight: 313 kg
YOM: 2022-06
Mist extraction/filtration: Micronfilter Kube Series oil mist collector (mounted on top-left bracket system)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
