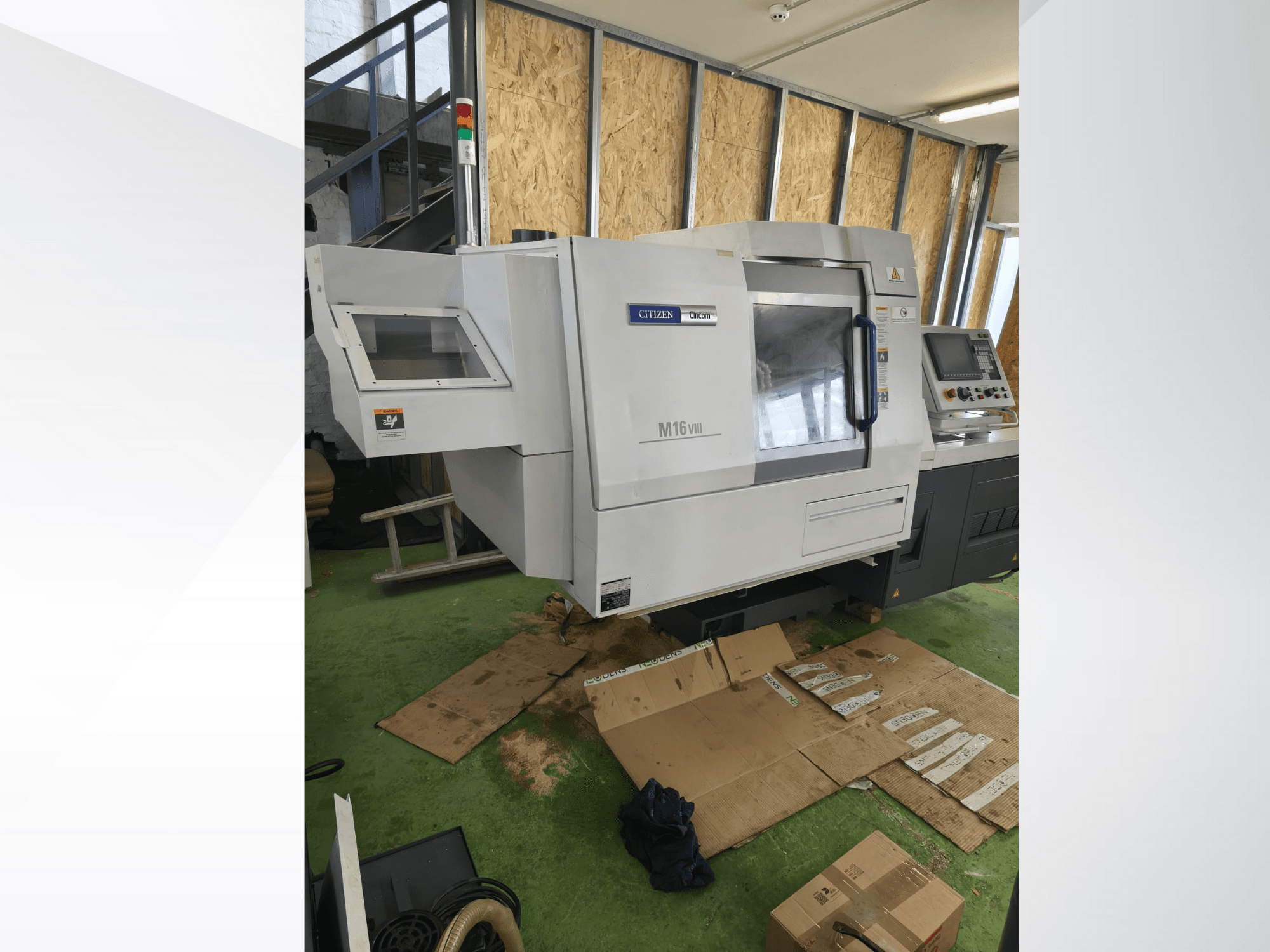

This 12-axis Citizen Cincom M16-4M8 was manufactured in 2021, featuring a robust configuration with up to 38 tools, including gang, turret, and back tool post options. It supports a rapid feed rate of 32 m/min, with specialized rates for X2, Y2, and B axes. The main spindle motor outputs 2.2/3.7 kW, ensuring efficient operations. Consider the opportunity to buy this Citizen Cincom M16-4M8 Swiss type turning machine. Contact us for more information about this machine.
Overview
- brand: Citizen
- year: 2021
- MODEL: Cincom M16-4M8
- application type: Turning
- Location: Croatia
- machine type: Swiss Type Turning Machine
Technical Information - Citizen Cincom M16-4M8
Dimensions
- Machine Weight: 2500 kg
Additional Information
Additional information
Tool Configuration:
Total number of tools: 32–38 (depending on configuration)
Gang turning tools: 5 pcs
Turret tools: 10 pcs
Back tool post: 4 pcs
Tool shank size: 10 mm
Sleeve size: Ø19.05 mm
Main spindle collet chuck: FC261-M
Guide bushing: FC251-M-K
Back spindle collet chuck: WFG660-M
Gang rotary tools:
Max. drilling diameter: 5 mm
Max. tapping diameter: M5
Spindle speed: up to 8000 min⁻¹ (rated 3600 min⁻¹)
Turret rotary tools:
Max. drilling diameter: 5 mm
Max. tapping diameter: M5
Spindle speed: up to 8000 min⁻¹ (rated 3500 min⁻¹)
Back tool post rotary tools:
Max. drilling diameter: 5 mm
Max. tapping diameter: M5
Spindle speed: up to 8000 min⁻¹ (rated 4500 min⁻¹)
Feed and Axis Data:
Rapid feed rate (all axes except X2, Y2, B): 32 m/min
X2 axis: 16 m/min
Y2, B axes: 8 m/min
Motors and Electrical Data:
Main spindle motor: 2.2 / 3.7 kW
Rotary tool drive (gang/turret/back): 0.69 – 0.75 / 1.5 kW
Total power consumption: 10.75 kW
Full-load current: 28 A
Required air pressure: 0.4 MPa (84 NL/min)
Center height: 1150 mm
Condition: Excellent working condition
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
