TRAUB - TNL 32 PDE-TUR-TRA-2012-00001

£ 44,877
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

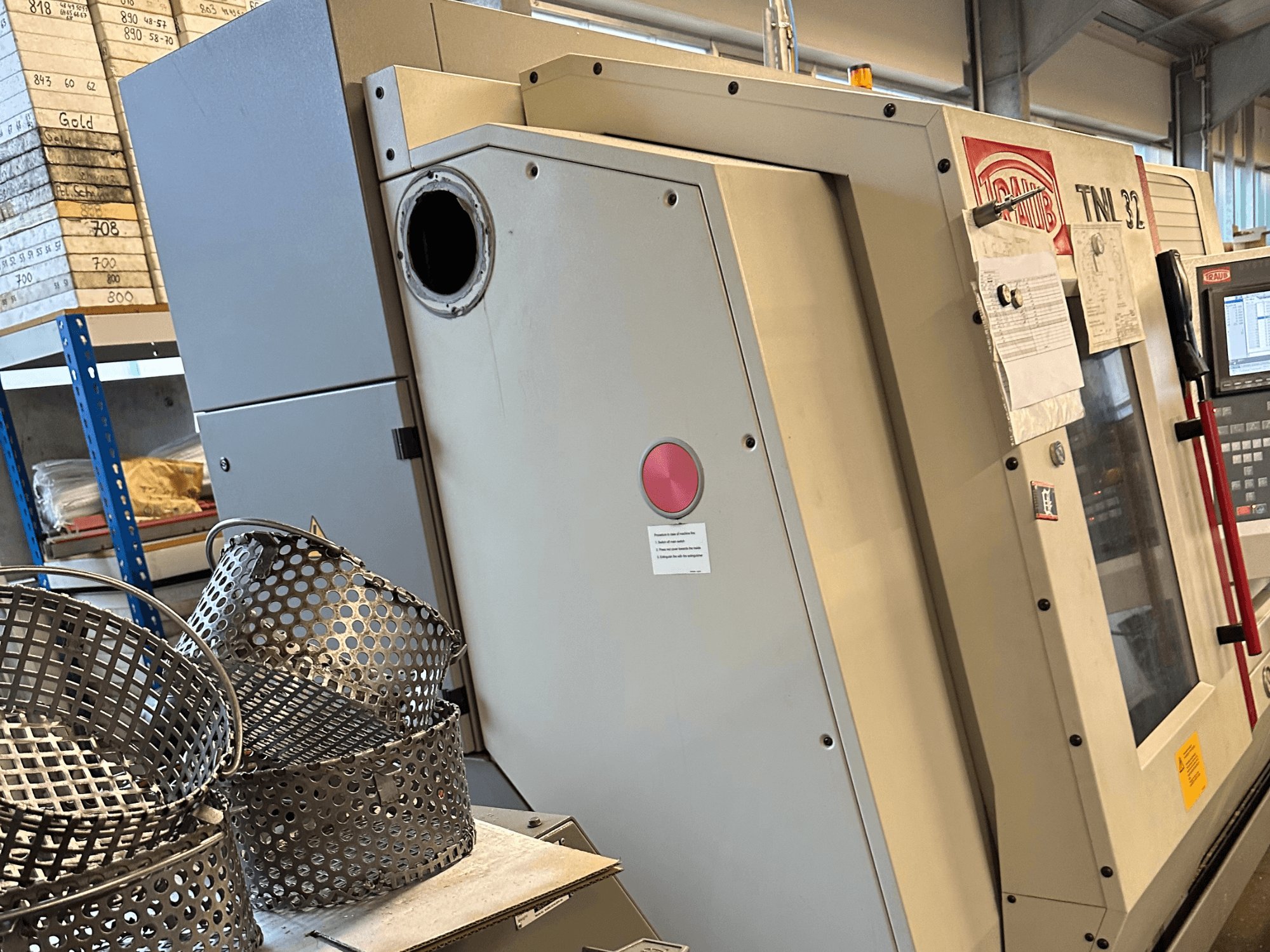

This 7-axis TRAUB TNL 32 P was manufactured in 2012. It features a maximum bar diameter of 32 mm and a maximum Z-axis travel of 305 mm. The machine includes two turrets with live tooling capabilities, offering 10 and 9 tool stations respectively. If you are looking to get high-quality turning capabilities, consider the TRAUB TNL 32 P swiss type turning machine we have for sale. Contact us for further details.

Overview

  • brand: TRAUB
  • year: 2012
  • MODEL: TNL 32 P
  • production hours: 19295
  • application type: Turning
  • Location: Germany
  • machine type: Swiss Type Turning Machine
  • control unit brand: TRAUB

Technical Information - TRAUB TNL 32 P

Control Unit

  • Control Brand: TRAUB
  • Control Model: TX 8i-p

Dimensions

  • Machine Height: 2600 mm
  • Machine Length: 4500 mm
  • Machine Weight: 6000 kg
  • Machine Width: 2500 mm

Movement

  • Number of Axes: 7
  • X-axis Travel: 140 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Max. Bar Diameter: 32 mm
  • Spindle Power: 10.7 kW
  • Spindle Speed: 8000 RPM
  • Through-spindle Coolant: Yes

Additional Information

  • Number of Turrets: 2

  • Maximum Z-Axis Travel: 305 mm

  • Main Spindle Torque: 21 / 32 Nm

  • Main Spindle C-Axis Resolution: 0.001°

  • Turret 1 Tool Stations: 10

  • Turret 1 Live Tool Stations: 10

  • Turret 1 Live Tool Speed: 12,000 rpm

  • Turret 1 Live Tool Power: 1.5 / 2.5 kW

  • Turret 1 Tool Holder Diameter: 45 mm

  • Turret 1 Turning Tool Shank: 16 x 16 mm

  • Turret 1 X-Axis Travel: 140 mm

  • Turret 1 Z-Axis Travel: 305 mm

  • Turret 1 H-Axis Resolution: 0.001°

  • Turret 1 Chip-to-Chip Time: 0.3 sec

  • Turret 2 Tool Stations: 9

  • Turret 2 Live Tool Stations: 9

  • Turret 2 Live Tool Speed: 12,000 rpm

  • Turret 2 Live Tool Power: 1.5 / 2.5 kW

  • Turret 2 Tool Holder Diameter: 45 mm

  • Turret 2 Turning Tool Shank: 16 x 16 mm

  • Turret 2 X-Axis Travel: 140 mm

  • Turret 2 Y-Axis Travel: -25 / +40 mm

  • Turret 2 Z-Axis Travel: 320 mm

  • Turret 2 Chip-to-Chip Time: 0.3 sec

  • Counter Spindle Speed: 8,000 rpm

  • Counter Spindle Power: 1.5 / 2.5 kW

  • Counter Spindle Torque: 4.5 / 7.7 Nm

  • Counter Spindle C-Axis Resolution: 0.001°

  • Maximum Clamping Length: 250 mm

  • Maximum Bar Diameter (Counter Spindle): 32 mm

  • Back Working Tool Stations: 8

  • Back Working Live Tool Stations: 3

  • Back Working Live Tool Speed: 12,000 rpm

  • Back Working Live Tool Power: 1.5 / 2.5 kW

  • Back Working Tool Holder Diameter: 36 mm

  • Rapid Traverse (X / Y / Z): 20 / 20 / 20 m/min

  • Maximum Feed Rate: 20,000 mm/min

  • Total Power Requirement: 46 kW

  • Space Requirement incl. Bar Feeder: 8,000 x 2,500 x 2,600 mm

  • Chip Conveyor: Optional

  • Coolant System: Yes

  • Tool Turrets: 2

  • Back Working Unit: Yes

  • Bar Feeder Interface: Yes

  • Bar Feeder: LNS Hydrobar Express 332 S2 / 3 m

  • Electronic Handwheel: Yes

  • Hydraulic Unit: Yes

  • Operating Hours: approx. 19,295 h

Machine defects: The counter spindle is currently unusable due to prolonged inactivity. Either the sensor or the motor is defective.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
