SPINNER TM

SPINNER - TMDE-TUR-SPI-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

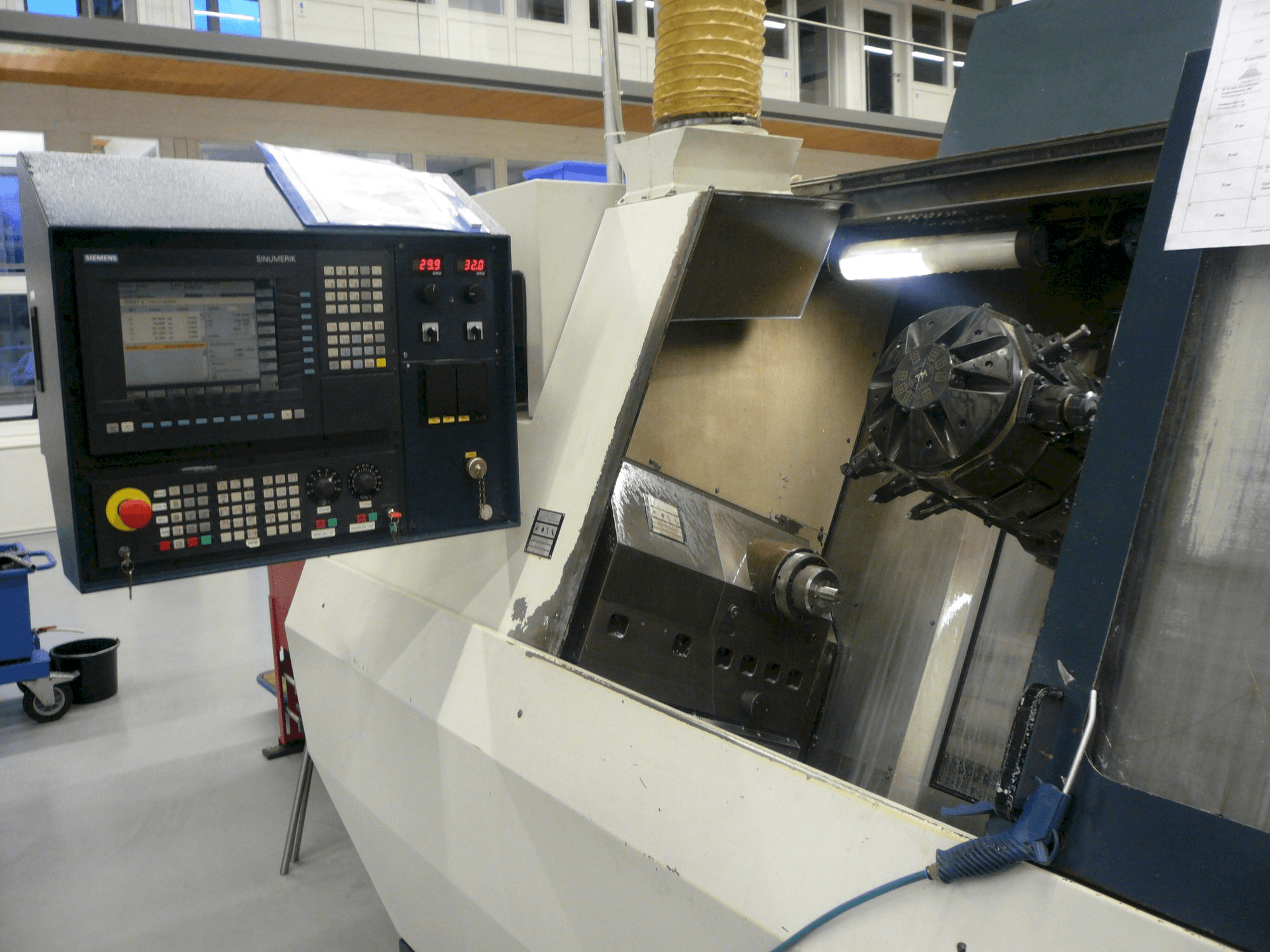

This SPINNER TM Lathe was made in the year 1999. It is equipped with a Siemens Sinumerik control unit. This turning and milling center can operate with a speed up to 6000 rpm. Several additional tools are included as additional equipment.

Overview

brand: SPINNER
year: 1999
MODEL: TM
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - SPINNER TM

General Data

Measurements width: 3300 mm
Measurements depth: 2900 mm
Measurements height: 2300 mm
Machine weight: 7500 kg

Main drive

Spindle speed range: 6000 rpm 1/MIN
Spindle motor power: 11 / 15 kW

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm

Media

Main electronic connection: 400 V

Additional Equipment

- bar short loader 1m
- various spindle reductions
- clamping devices
- measuring probe chip conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck diameter 140 mm
- - Number of positions revolver 1 total 24
- - Rapid traverse 20 m/min
- - Tool holder static and driven

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
