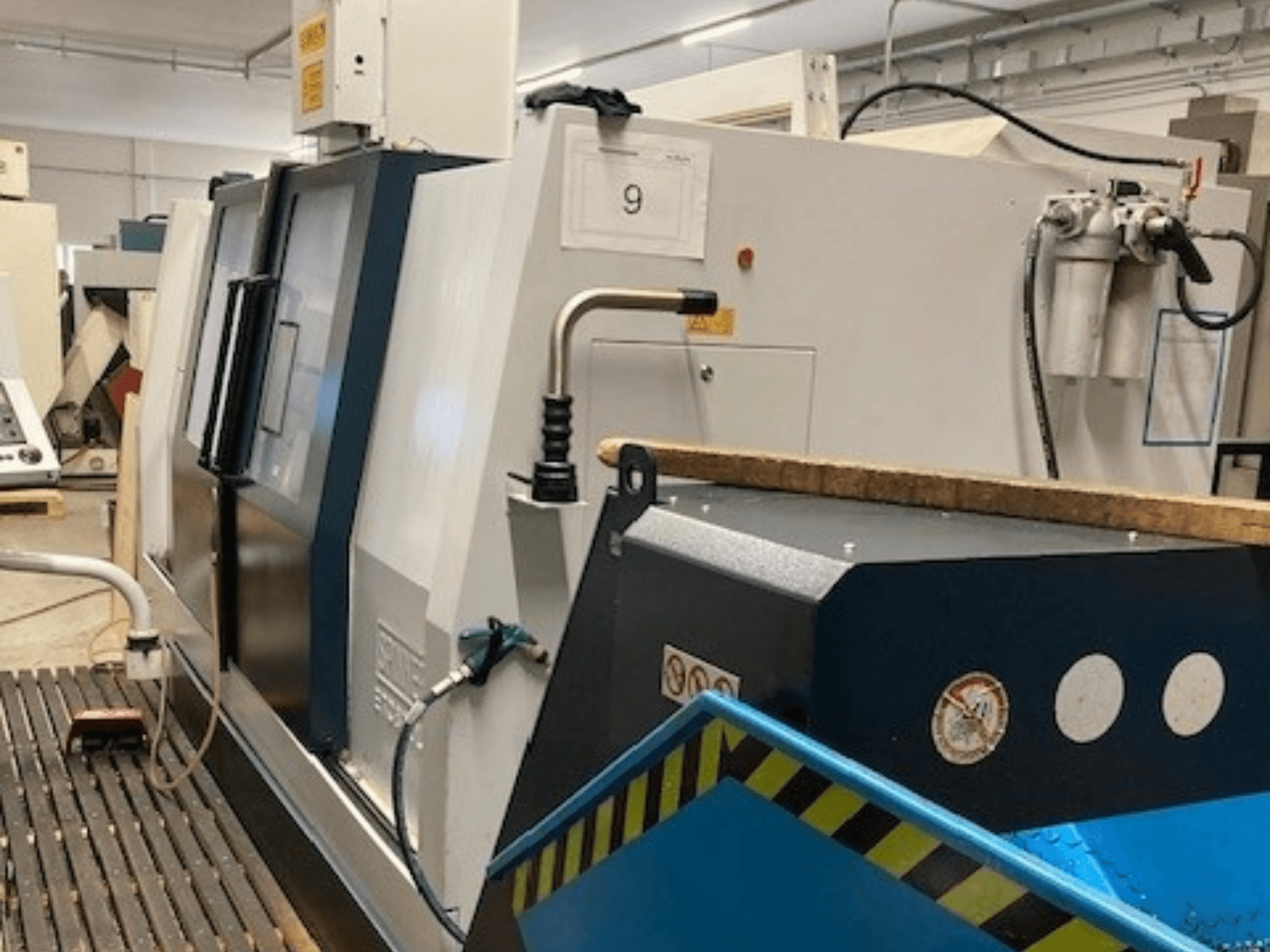

SPINNER - TC800L 110DE-TUR-SPI-2023-00001

• Status/condition

  • Machine powered on and still in operation

  • Fully functional; steady rest requires sensor bang-up replacement

• Configuration and capacities

  • Turret without AgW (adjustable power supply)

  • Turret type: axial/radial

  • Number of tool stations: 12x VDI50 (option: 16x VDI40 or 12x BMT65)

  • Tool holder type: VDI50 (option: VDI40/BMT65)

  • Number of driven tools: 12 (option)

  • Driven tool speed: 4000 rpm

  • Driven tool power (S1/S3): 2.2 / 5.5 kW

  • Driven tool torque (S1/S3): 17.5 / 43 Nm (axial), 14 / 35 Nm (radial)

  • Maximum turning diameter: 500 mm

  • Maximum swing diameter: 800 mm

  • Turning length: 800 mm / 1580 mm (L version)

  • Distance between centers: 800 mm / 1580 mm

  • Maximum workpiece weight: 800 kg

• Axes

  • Rapid traverse X/Z: 15 / 24 m/min

• Spindles

  • Number of spindles: 2

  • Main spindle

    • Nose: A11

    • Bar capacity: 110 mm

    • Torque (100% / 40%): 175 / 235 Nm

    • Torque gear stage 2: 700 / 939 Nm

  • Sub spindle (option)

    • Nose: A6

    • Bar capacity: 52 mm

    • Chuck size: 210 mm

    • Power (S1/S6): 15 / 19 kW

    • Torque (S1/S6): 95 / 121 Nm

• Tailstock (if equipped)

  • Pinole diameter: 110 mm

  • Taper: MK4

  • Stroke: 100 mm

  • Thrust force: 850 daN

• Fluids and tanks

  • Coolant tank capacity: approx. 235 l (up to 270 l in L-version)

  • Hydraulic tank: approx. 31 l

  • Central lubrication tank: approx. 2–3 l

• Electrical data

  • Electrical connection: 3-phase 400 V + N + PE

  • Frequency: 50/60 Hz (also stated as 50 Hz)

  • Rated current: 44 A

  • Fuse protection current: 50 A

  • Rated current protection: 63 A

  • Connected load: approx. 40 kVA (up to 50 kVA with 2 spindles)

  • Protection class: BA 3 (Chap. 3.4.5)

  • Network type: TN network with grounded neutral point

  • Recommended protection: without FI switch (recommended)

Additional equipment

• Steady rest (note: sensor bang-up replacement needed)

• Tailstock

• Chip conveyor

• Oil mist extraction system

• Possibly chuck and tool holder (to be confirmed)
