Sodick - VL600QCZ-EDM-SOD-2016-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Sodick VL600Q Erosion machine
Show in original language

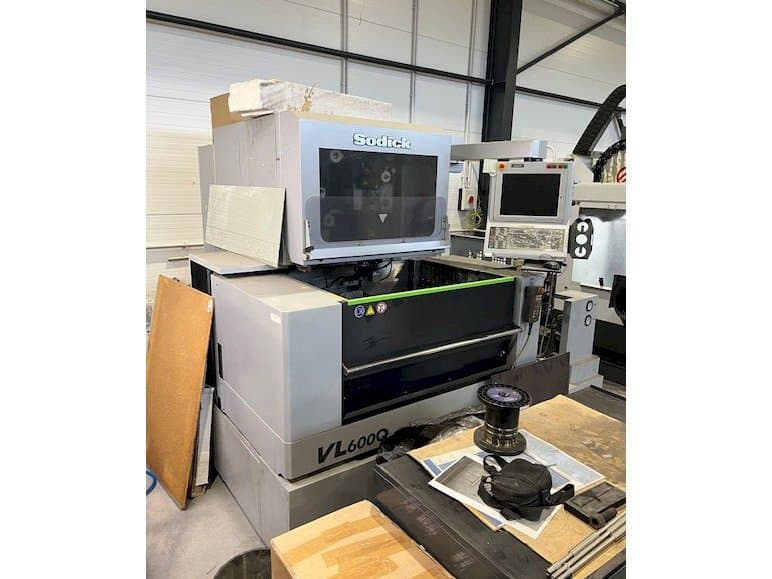

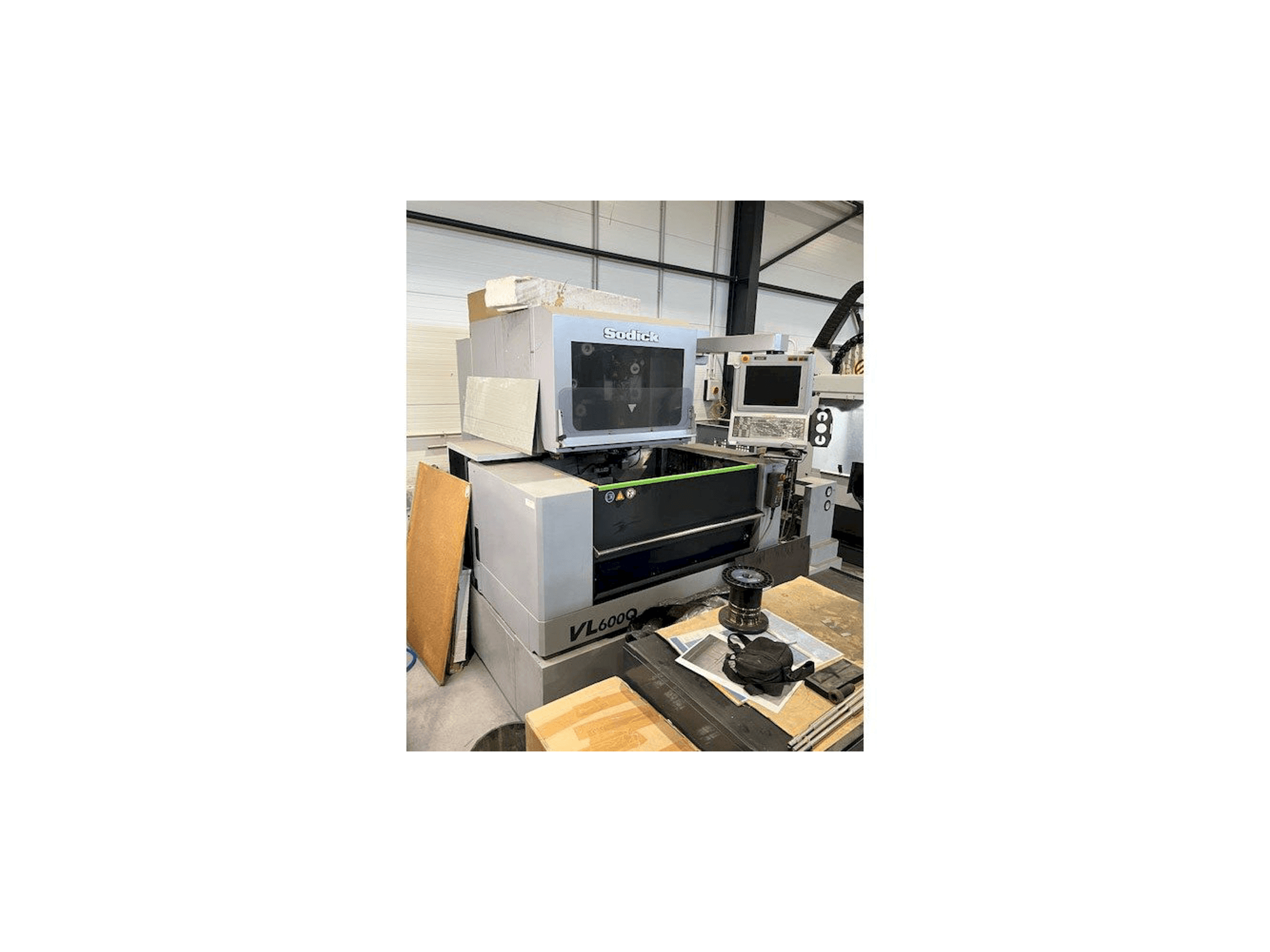

This Sodick VL600Q Erosion machine was manufactured in the year 2016 and has 9958 hours. It is equipped with a Sodick LN2W control unit. The machine has a Wire diameter of 0.1-0.3 mm.
Overview
- brand: Sodick
- year: 2016
- MODEL: VL600Q
- production hours: 9958
- application type: EDM
- Location: Czech Republic
- machine type: Wire EDM Machine
- control unit brand: SODICK
Technical Information - Sodick VL600Q
Control Unit
- Control Brand: SODICK
- Control Model: LN2W
Dimensions
- Machine Depth: 2605 mm
- Machine Height: 2080 mm
- Machine Weight: 3140 kg
- Table Length: 1040 mm
- Table Width: 780 mm
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 270 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- U x v axis travel 90 x 90 mm
- Wire feed speed (max. ) 420 mm/sec
- Working tank dimensions (w×d) 1040 x 780 mm
- Machining at an angle (working height 120mm) +/- 15 degrees
- Wire tension 3-23 n
- Distance from floor to table top 930 mm
- Dielectric capacity/amount 420 kg/890 l
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
