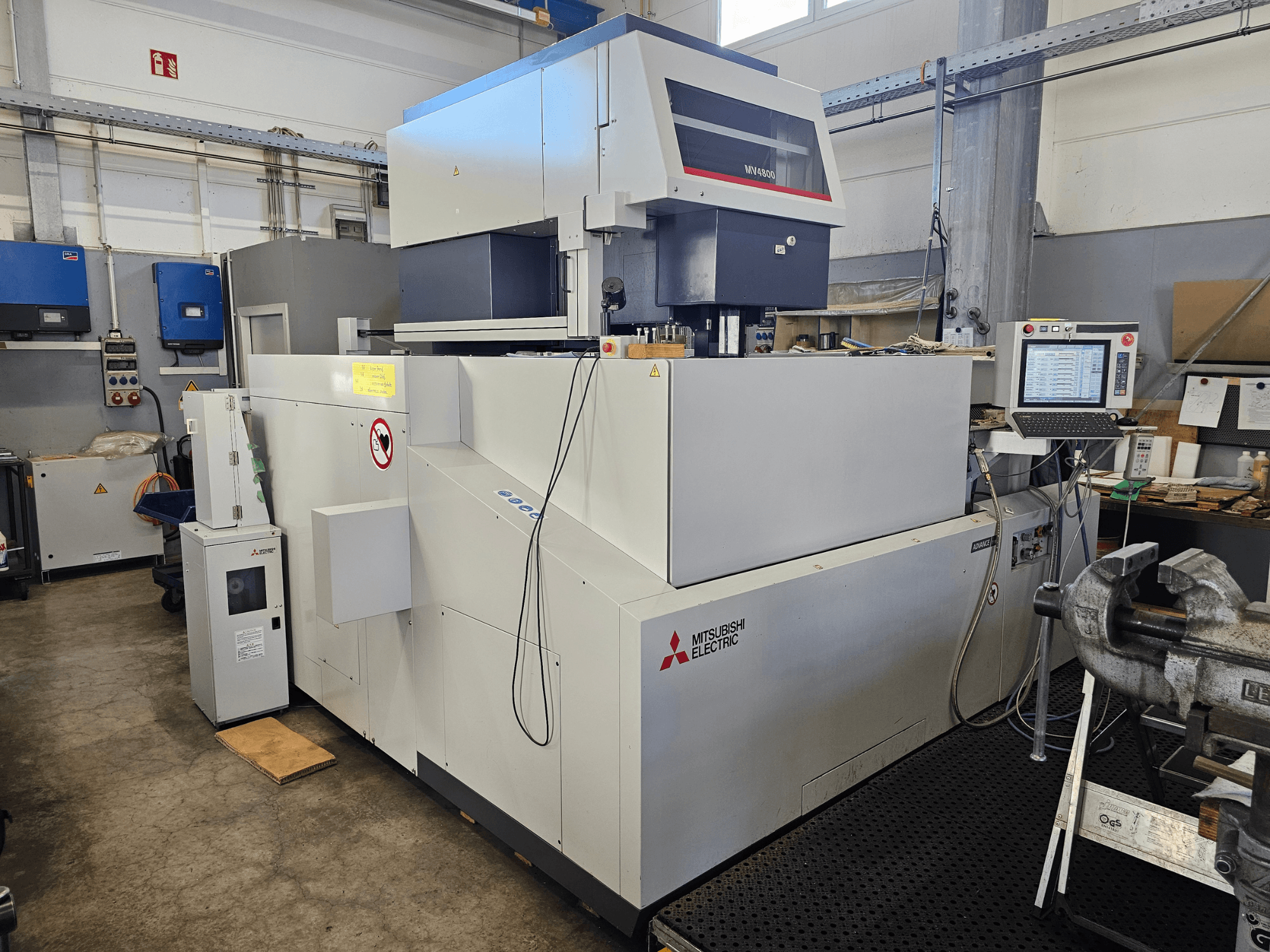

Mitsubishi - MV4800DE-EDM-MIT-2018-00003

• Control: Mitsubishi CNC control

• Machining type: wire erosion cutting (Wire EDM)

• Dielectric system: water-based dielectric system

• Cooling/filtration: integrated dielectric filtration system

• Automatic wire threading: included

• Wire type: brass wire (e.g. OBN 0.25 mm)

• Wire diameter capability: approx. 0.1–0.3 mm

• Wire diameter (standard range): 0.15–0.30 mm (standard 0.30 mm)

• Application: precision cutting of conductive materials

• Typical materials: hardened steel, tool steel, carbide, aluminum

• Axis travels: U ±100 mm, V ±100 mm

• Maximum workpiece dimensions: X 1250 mm, Y 1020 mm, Z 505 mm

• Maximum workpiece weight: 3000 kg

• Tank weight (empty): 450 kg

• Generator weight: 240 kg

• Required door opening (W x H): 2587 x 2815 mm

• Power supply: 3 phase 400 V AC ±10% 50/60 Hz

• Minimum fuse protection: 32 A slow

• Pneumatic pressure: 5–7 kgf/cm² (500–700 kPa)

• Air consumption: minimum 42 l/min (more than 75 l/min for AT system with 0.1 mm wire)

• Air connection: 3/8"

• Machine footprint length: approx. 3299 mm

• Minimum clearance around machine: 1 m

• Recommended working platform height: minimum 500 mm

• Handling requirement: forklift minimum 10 t capacity, fork length minimum 3.5 m

Additional equipment

• Power supply transformer: 20 kVA

  • Dimensions: 1.2 x 0.4 x 1.2 m

  • Weight: 300 kg

• Ionizer unit: E.KO ionizer system (included)
