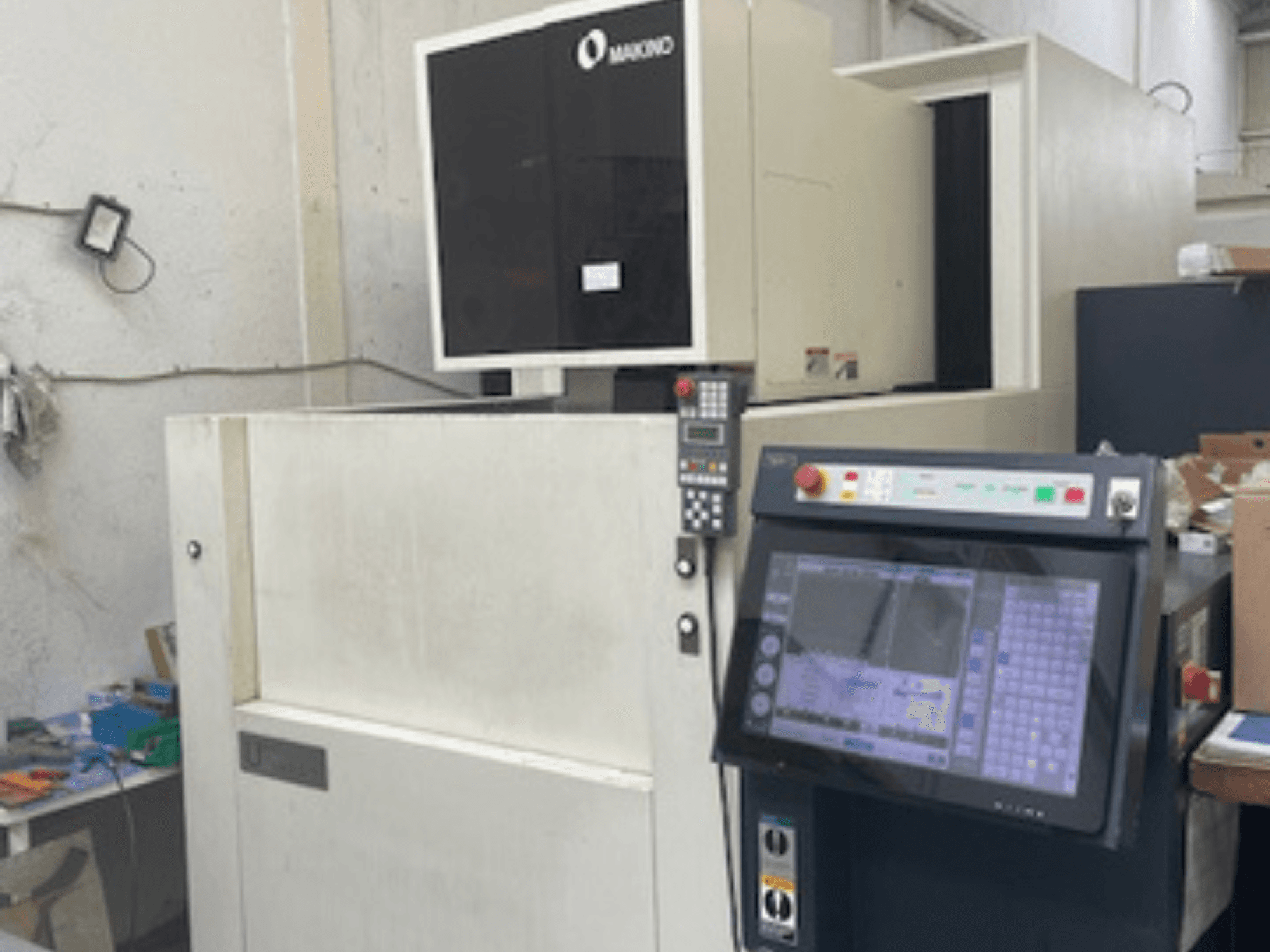

This 5-axis Makino U6 HEAT was manufactured in 2016. It features an impressive X-axis travel of 650 mm, Y-axis travel of 450 mm, and Z-axis travel of 420 mm. The machine has a maximum workpiece size of 1,000 x 800 x 400 mm and can handle a maximum workpiece weight of 1,500 kg. If you are looking to get high-quality wire EDM capabilities, consider the Makino U6 HEAT wire EDM machine we have for sale. Contact us for further details.
Overview
- brand: Makino
- year: 2016
- MODEL: U6 HEAT
- application type: EDM
- Location: Spain
- machine type: Wire EDM Machine
Technical Information - Makino U6 HEAT
Dimensions
- Machine Height: 850 mm
- Machine Length: 800 mm
- Machine Weight: 250 kg
- Machine Width: 780 mm
Movement
- Number of Axes: 3
- X-axis Travel: 185 mm
- Y-axis Travel: 125 mm
- Z-axis Travel: 200 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Spindle speed: 150–2000 rpm
Spindle drive power: 0.75 kW (at 100% duty cycle)
Tool changer: Automatic, 10 stations
Tool holder: SK 30 (DIN 2080 / DIN 69871)
Feed rate (X/Y/Z): 5–500 mm/min
Rapid traverse: 500 mm/min
Clamping area: 420 x 125 mm
Max. workpiece weight: 10 kg
Power supply: 230 V / 50 Hz
Availability: Not specified
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
