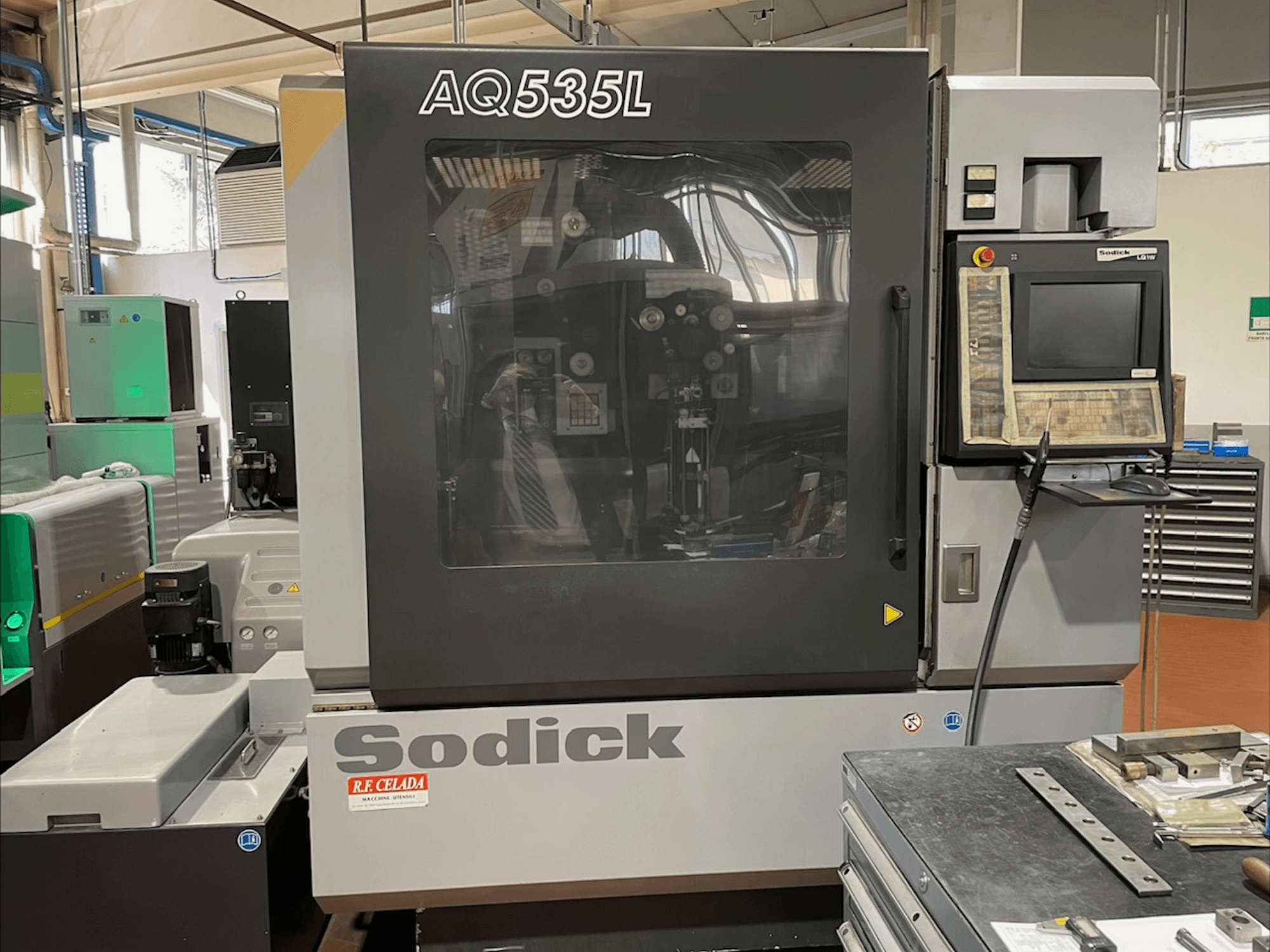

Sodick - AQ535L IT-EDM-SOD-2007-00002

Axis travels:

• U: 80 mm

• V: 80 mm

Table / Tank:

• Work table size (W x D): 790 x 500 mm

• Work tank dimensions (W x D): 1100 x 720 mm

• Distance from floor to table top: 1005 mm

Workpiece capacity:

• Maximum workpiece height: 290 mm (standard) / 270 mm (submerged)

• Maximum workpiece weight: 800 kg (standard) / 680 kg (submerged)

Wire system:

• Taper angle: 20° / 80 mm

• Wire tension: 300 g to 2300 g

• Max wire feed speed: 250 mm/sec

• Max wire spool weight: 6 kg

Dielectric tank:

• External dimensions (W x D x H): 640 x 2400 x 1843 mm

• Empty weight: 350 kg

• Capacity: 730 L

• Deionizer: 10 L

• Filtration system: 2 replaceable paper filters
