➤ Used Mitsubishi MV1200S Wire EDM For Sale | gindumac.com

Show in original language

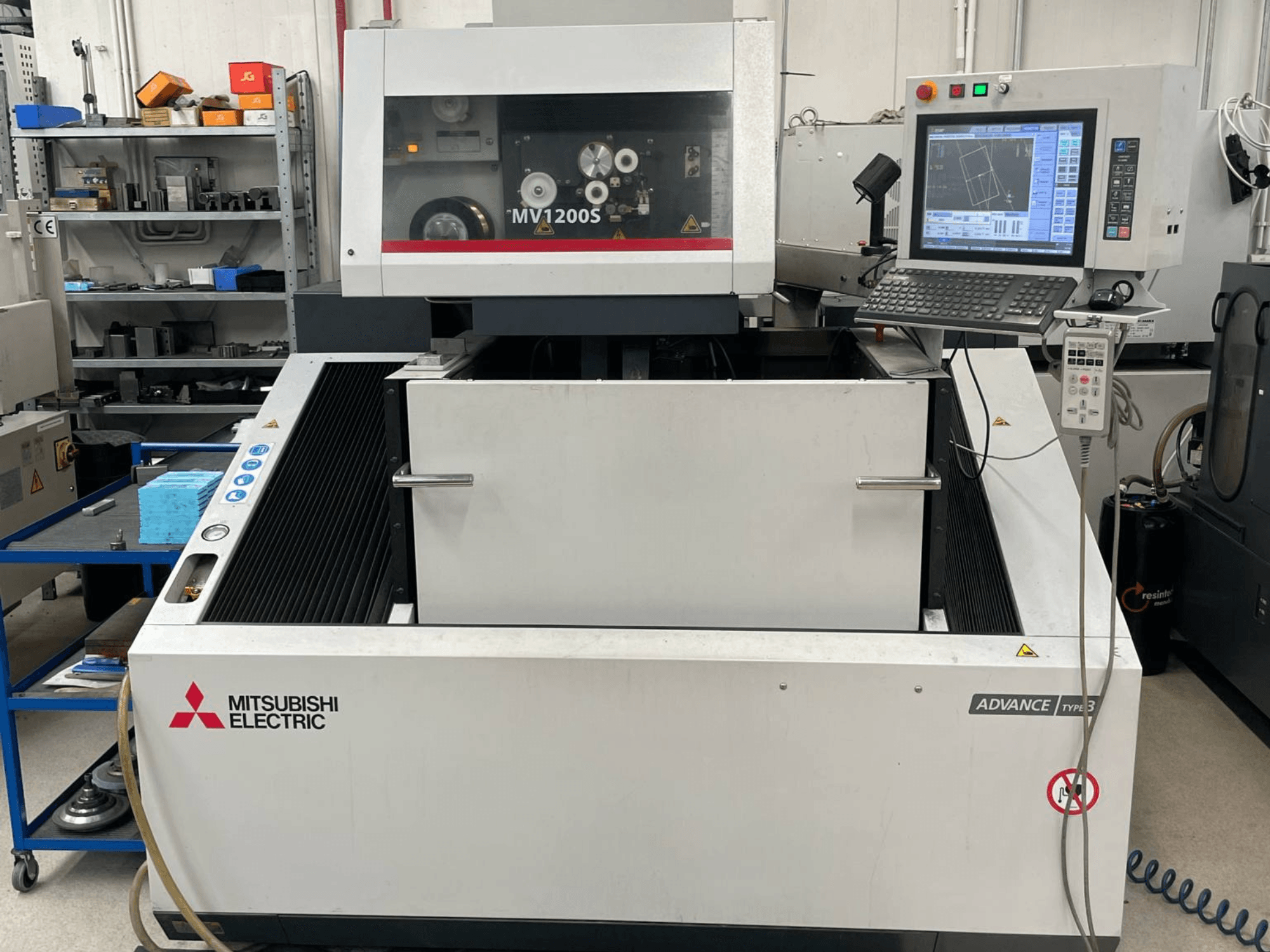

This Mitsubishi MV1200S wire EDM machine was manufactured in 2017. It features an X-axis travel of 400 mm, Y-axis travel of 300 mm, and Z-axis travel of 220 mm. The machine is equipped with automatic wire threading and the Mitsubishi D-CUBES control system, ensuring efficient and stable production. If you are looking to get high-quality wire EDM capabilities, consider the Mitsubishi MV1200S machine we have for sale. Contact us for further details.

Overview

brand: Mitsubishi
year: 2017
MODEL: MV1200S
production hours: 28500
application type: EDM
Location: Poland
machine type: Wire EDM Machine
control unit brand: MITSUBISHI

Technical Information - Mitsubishi MV1200S

Control Unit

Control Brand: MITSUBISHI
Control Model: D-CUBES

Dimensions

Machine Weight: 2700 kg

Movement

Number of Axes: 5
X-axis Travel: 400 mm
Y-axis Travel: 300 mm
Z-axis Travel: 220 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.1 mm

Additional Information

Control: Mitsubishi D-CUBES
Automatic wire threading: Yes
U/V travel: 120 / 120 mm
Maximum workpiece dimensions: 810 x 700 x 200 mm
Maximum taper angle: ±30° @ 87 mm, ±15° @ 200 mm
Condition: Regularly used and well maintained; very good technical condition
Operating hours: approx. 28,500 h
Inspection: Machine can be inspected under power
Documentation: Available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
