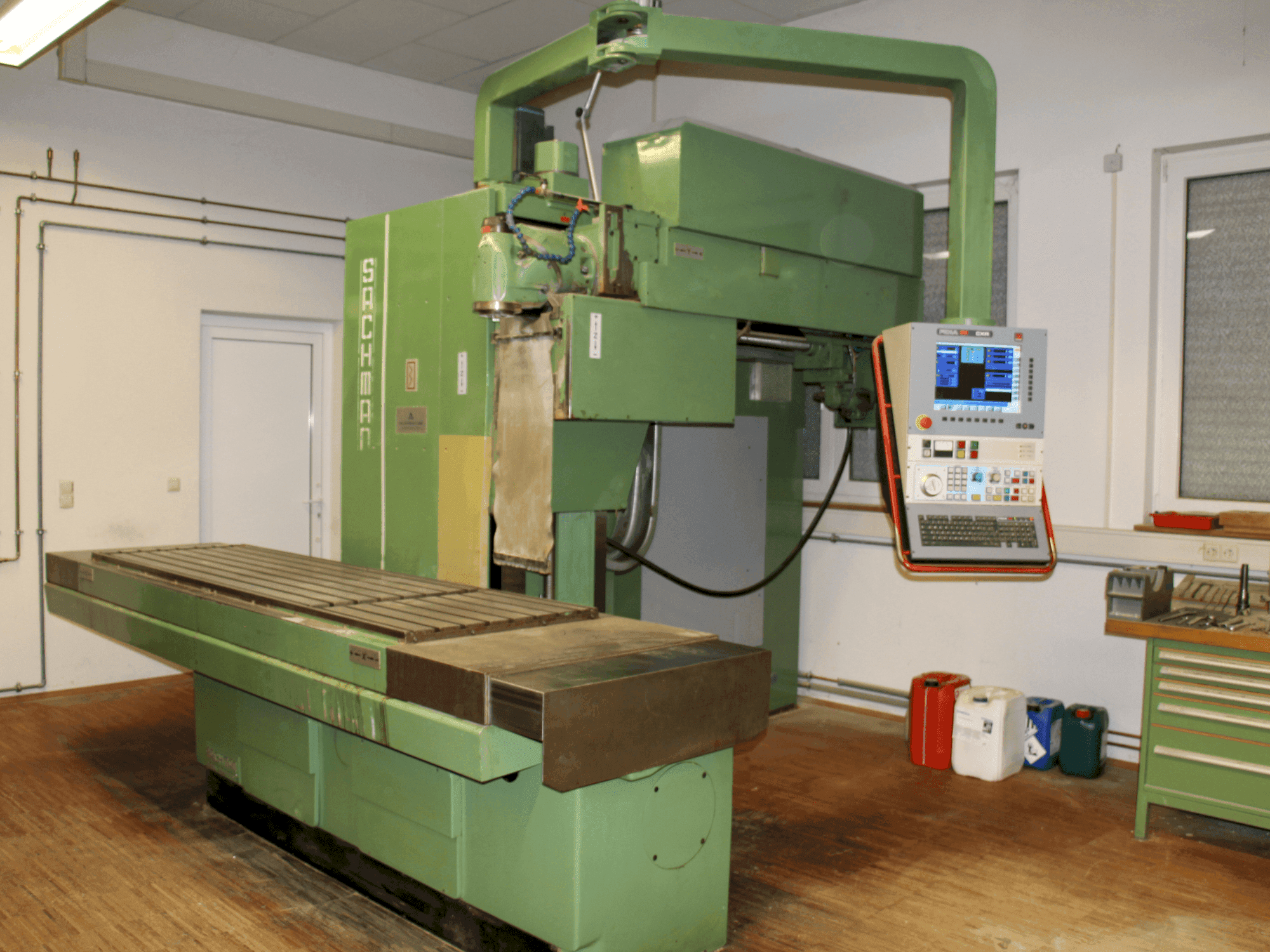

This SACHMAN RP3CC Milling machine was manufactured in the year 1990 in Italy. It is equipped with a FIDIA freely programmable control unit. Extension arm for copy sensor and FIDIA copy sensor are no longer available. These have been dismantled.
Overview
- brand: SACHMAN
- year: 1990
- MODEL: RP3CC
- application type: Milling
- Location: Germany
- machine type: Bed Type Milling Machine
- control unit brand: FIDIA
Technical Information - SACHMAN RP3CC
Control Unit
- Control Brand: FIDIA
Dimensions
- Machine Weight: 8500 kg
Movement
- Number of Axes: 3
- Z-axis Travel: 1000 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Extension arm for copy sensor and fidia copy sensor are no longer available. These have been dismantled.
Technical Machine Benefits
- Freely programmable control
- Dimensions 2000x730mm
- Spindle speed infinitely variable
- Spindle mount iso 50
- Constant torque 10-90 l/min
- Max. Width (x-direction) approx. 4700mm // max. Depth (y-direction) 3300mm // max. Height (z-direction) 2925mm
- Longitudinal travel 1800mm
- Travel of the cross slide y-axis 815mm
- Z-axis travel 1000mm
- Thermal expansion length compensation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
