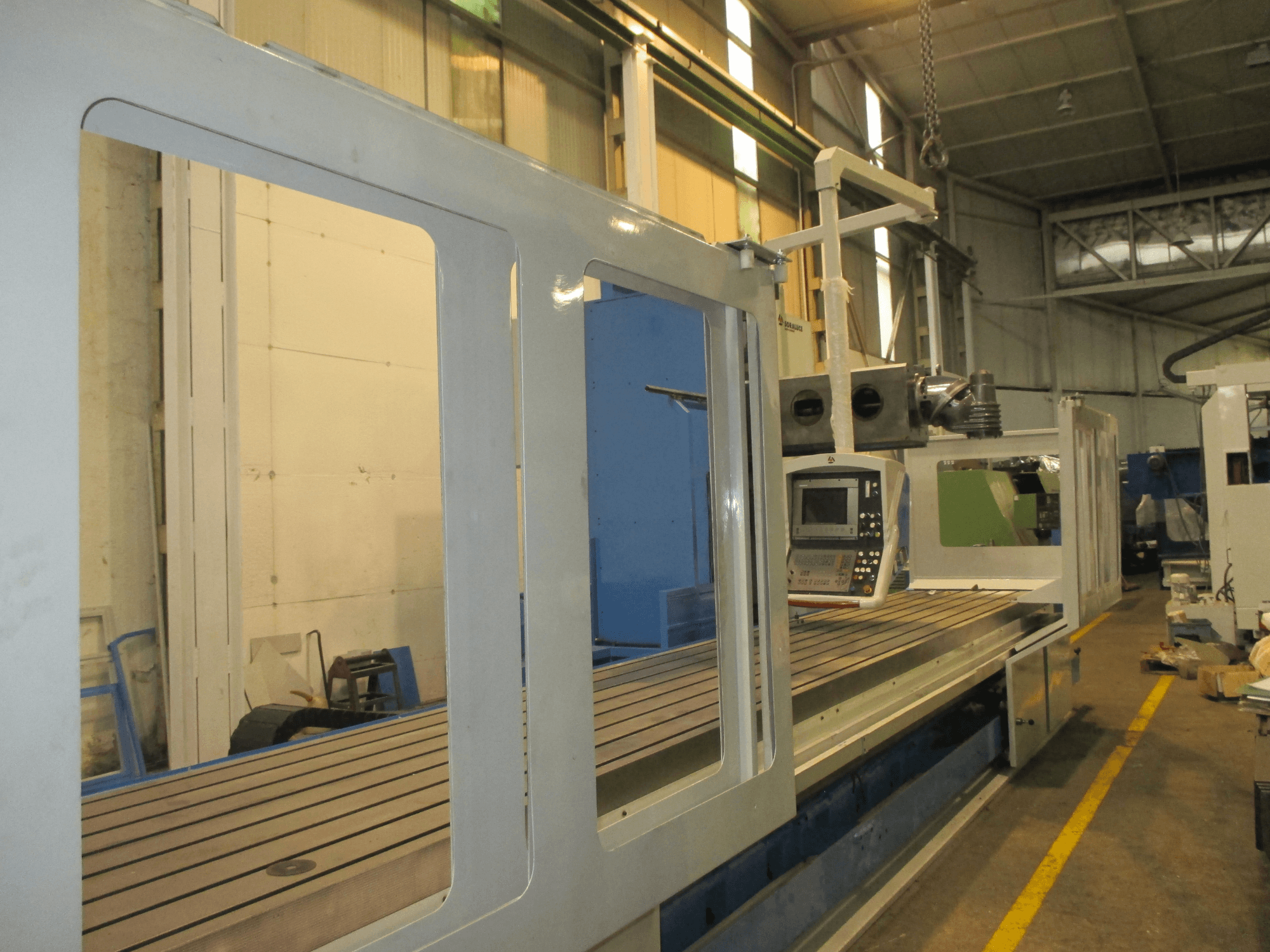

This 3-axis Soraluce SM 8000 Bed Type Milling Machine was manufactured in 1999. It features an impressive X-axis travel of 6,250 mm, Y-axis travel of 1,200 mm, and Z-axis travel of 1,500 mm. The machine includes a spacious table dimension of 8,000 x 1,100 mm and a powerful 30 kW spindle. If you are looking to get high-quality milling capabilities, consider the Soraluce SM 8000 machine we have for sale. Contact us for further details.
Overview
- brand: Soraluce
- year: 1999
- MODEL: SM 8000
- application type: Milling
- Location: Spain
- machine type: Bed Type Milling Machine
Technical Information - Soraluce SM 8000
Movement
- Number of Axes: 3
- X-axis Travel: 6250 mm
- Y-axis Travel: 1200 mm
- Z-axis Travel: 1500 mm
Technical Specification
- Spindle Power: 30 kW
- Spindle Speed: 3000 RPM
- Taper Size: ISO 50
Additional Information
Table dimensions: 8,000 x 1,100 mm
Bed height: 870 mm
Working feeds: 5,000 mm/min
Rapid traverse (X/Y/Z): 15,000 mm/min
Feed motor torque (X/Y/Z): 45 / 27 / 27 Nm
Coolant system pressure: 3 bar
Coolant tank capacity: 500 L
Max coolant flow rate: 50 L/min
Air supply: 300 L/min at 4.5 bar
Milling head: Manual
Additional equipment
Oil chiller / cooler
Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
