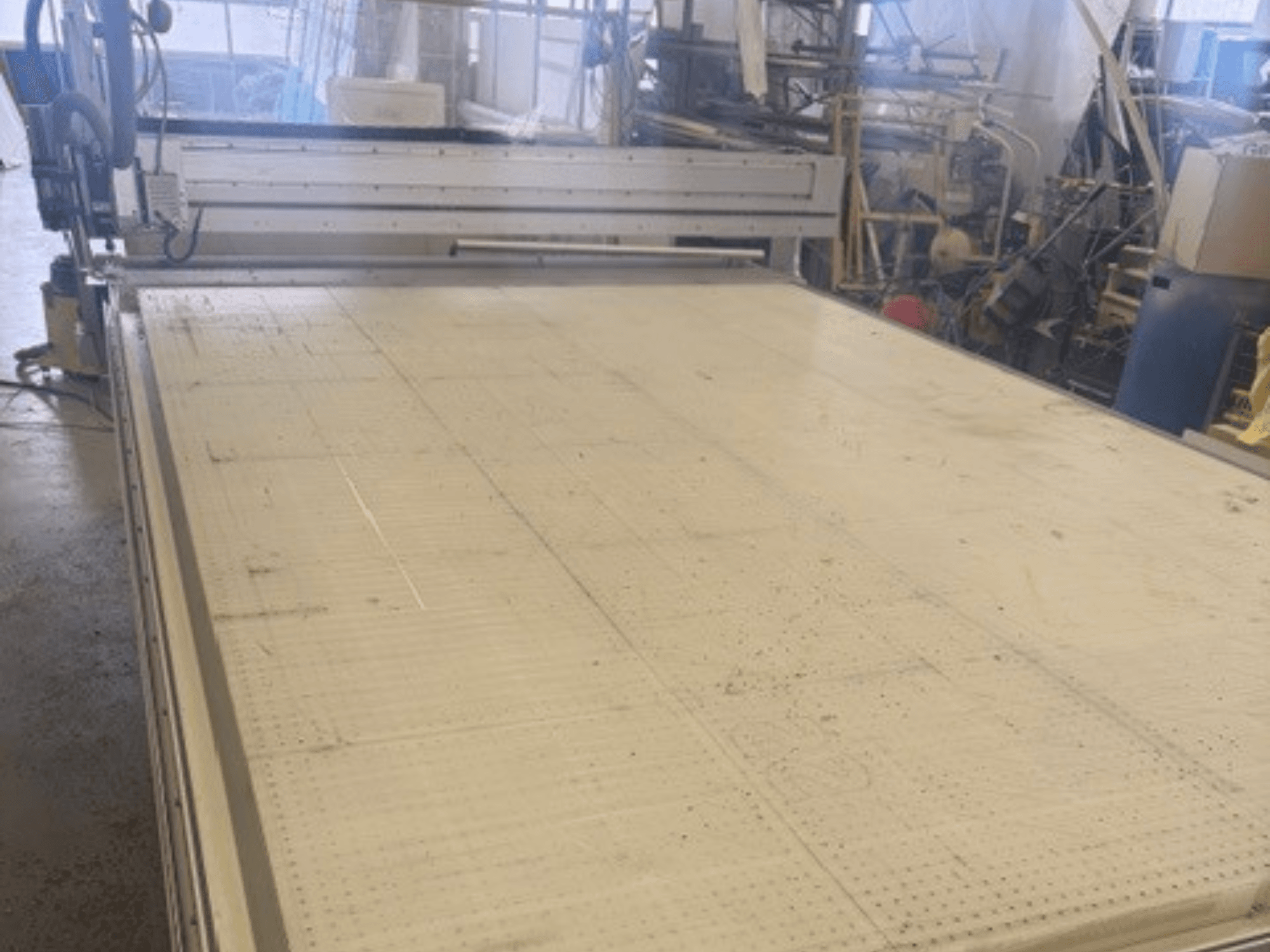

This 3-axis VHF CAM 20230 Bed Type Milling Machine was manufactured in 2004. It features a substantial weight of 450kg, ensuring stability and robust performance for precision milling. Consider the opportunity to buy this VHF CAM 20230 Bed Type Milling Machine. Contact us for more information.
Overview
- brand: VHF
- year: 2004
- MODEL: CAM 20230
- production hours: 30
- application type: Milling
- Location: Germany
- machine type: Bed Type Milling Machine
Technical Information - VHF CAM 20230
Dimensions
- Machine Weight: 450 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2020 mm
- Z-axis Travel: 50 mm
Technical Specification
- Spindle Speed: 28300 RPM
Additional Information
Working Area: 3000 x 2000 mm
Control Unit: Included
Computer: Included
Software: Included
Connection Cables: Included
High-Frequency Milling Spindle: Replaced
Operating Hours of New Spindle: Approximately 30 hours
Total Machine Operating Hours: Approximately 200 hours
Vacuum Suction System: Included
Tool Changer: Not Included
Tool Changer Retrofit Capability: Possible
Spindle Manufacturer: Perske
Spindle Type: VS 31.09-24
Spindle Protection Class: IP54
Standard: VDE 0530
Voltage: 220–220 V
Current: 4.1–3.9 A
Power Factor (cos φ): 0.77–0.88
Speed Range: 17000–28300 1/min
Frequency Range: 300–500 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
