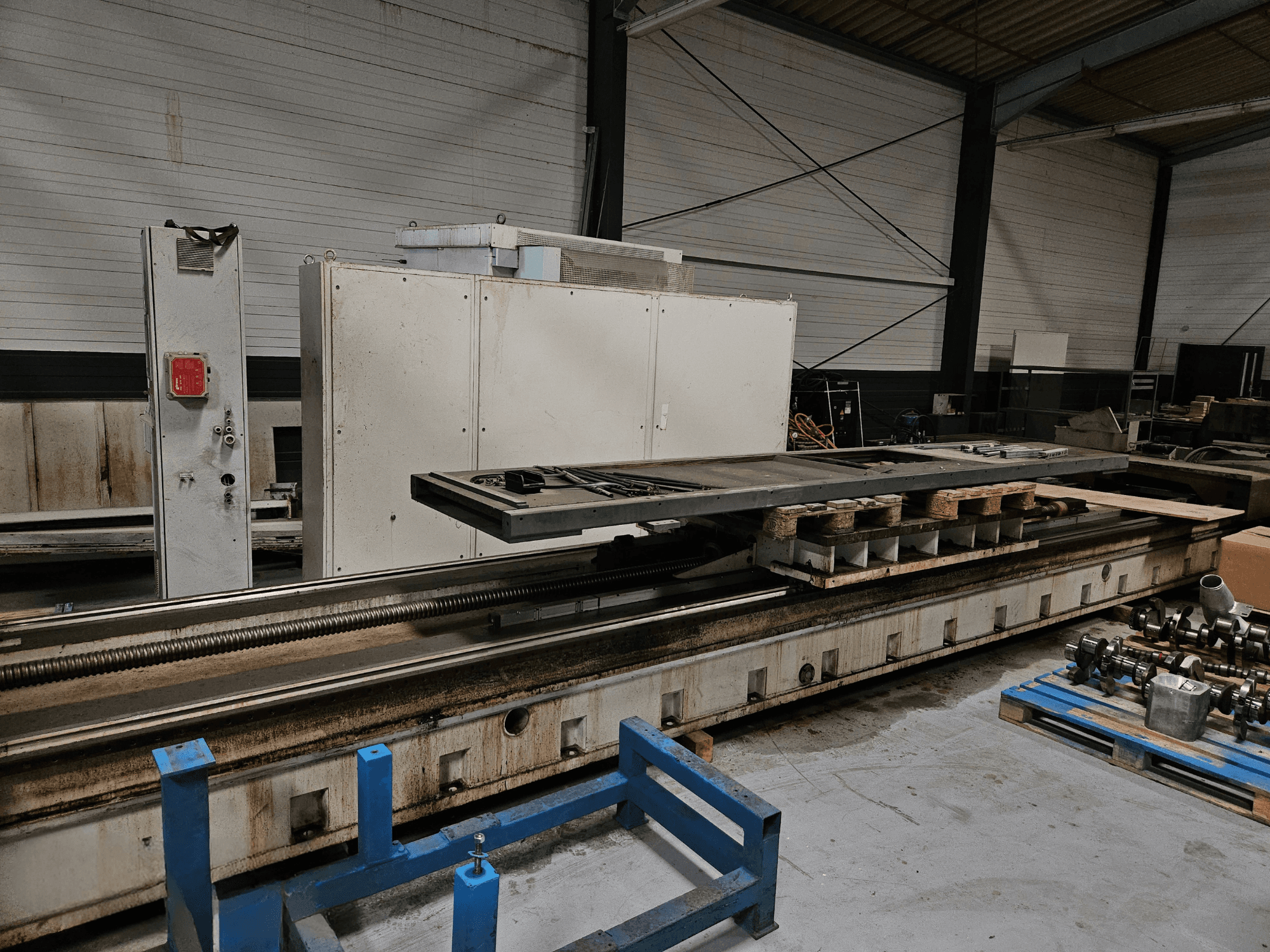

SHW - UFZ 6LDE-MIL-SHW-2008-00001

Spindle operating time: 12,897 hours

Hydraulic operating time: 43,912 hours

• W-axis travel: 1500 mm

• Digital feed drives

  • X-axis: 2–20000 mm/min

  • Y-axis: 2–24000 mm/min

  • Z-axis: 2–24000 mm/min

• Rapid traverse

  • X-axis: 20000 mm/min

  • Y-axis: 24000 mm/min

  • Z-axis: 24000 mm/min

• Spindle

  • Head: Automatic universal milling head

  • Main spindle motor: Siemens 1PH7 167

  • Gearbox: ZF 2K300 / SEW FF37 / FA47 B / KA Z37

  • Repeatability: ±0.002 mm

  • Spindle Speed (60 min Max): 3200 rpm

  • Spindle Speed (15 min Max): 4000 rpm

• Tool changer

  • Type: Automatic

  • Capacity: 150 tools

  • Max tool length: 400 mm

  • Max tool weight: 25 kg

  • Tool taper: SK50 DIN 69871

  • Station: Pickup-station

• Table/plates

  • Clamping plate surface: 3600 x 3750 mm

• Electronics and control

  • Control panel: Integrated CNC in work platform

  • Servo motors: Siemens 1FT6 series

  • Drives/regulators: Indramat ECOdrive 3

  • Measuring systems: Heidenhain LS 186C / LB 382C / ROD 480 / ROQ 425

  • Electronic pressure switch: ifm PN 5, PN 7

• Power supply

  • Voltage: 400 V, 3-phase, 50 Hz

  • Power connection: approx. 80 kVA

  • Main fuse: 160 A (slow-blow)

  • Conductor cross-section: 70 mm²

• Pneumatics and hydraulics

  • Pressure: 4–6 bar

  • Connection: G1/4

  • Air consumption: approx. 320–400 l

  • Valve terminal: Festo CP10+

  • Hydraulic system: Bosch with 1 x 50 l accumulator

Additional equipment

• CNC rotary table unit: Demmeler DRTN

  • Table surface: 2000 x 1800 mm

  • Max rotation speed: 4 min^-1

• Collision monitoring: Brankamp Typ CMS (1-channel)

• Safety brake: Mayr Typ 891...

• Cooling unit: Schimpke DK 38 V / BKW SK 250D

• Coolant filter: Knoll KF110/1100

• Oil filter: ARGO D 062-156

• Chip conveyor: Richter SP 250/63 (x2)

• Measurement system: m&h 20.10 Set Multi SK50 / m&h 35.10 TS plug

• Lubrication: Automatic

• Machine enclosure: 3-sided
