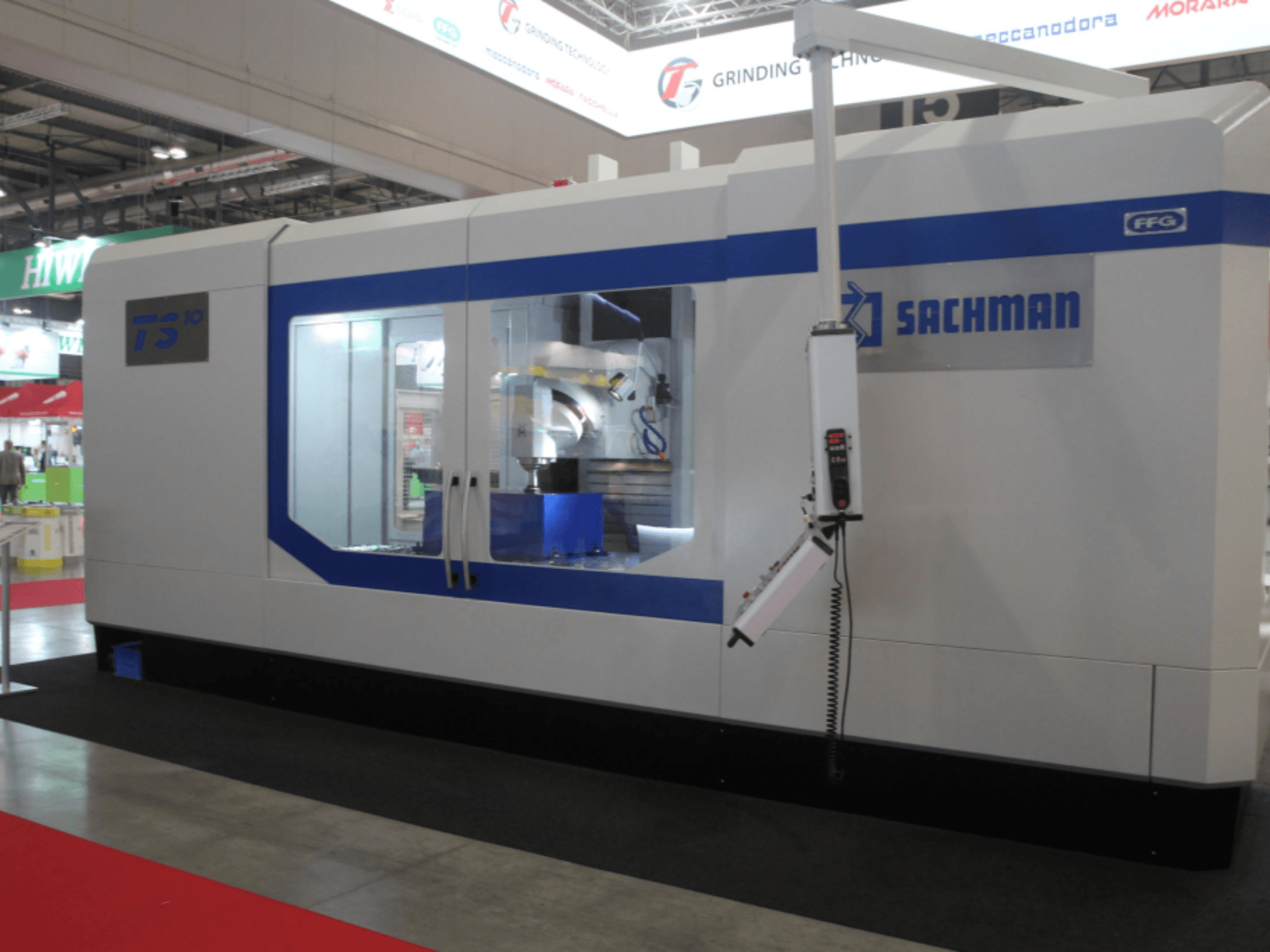

This 5-axis SACHMAN TS10 bed type milling machine was manufactured in 2025. It features an impressive X-axis travel of 2,500 mm, Y-axis travel of 1,210 mm, and Z-axis travel of 1,200 mm. The machine includes a robust table size of 2,700 x 800 mm and a maximum table load capacity of 3,000 kg. If you are looking to get high-quality milling capabilities, consider the SACHMAN TS10 machine we have for sale. Contact us for further details.
Overview
- brand: SACHMAN
- year: 2025
- MODEL: TS10
- production hours: 0
- application type: Milling
- Location: Germany
- machine type: Bed Type Milling Machine
- Available from: 27/07/2026
- control unit brand: HEIDENHAIN
Technical Information - SACHMAN TS10
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640 HSCI
Dimensions
- Table Load: 3000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 2500 mm
- Y-axis Travel: 1210 mm
- Z-axis Travel: 1200 mm
Technical Specification
- Spindle Power: 20.5 kW
- Spindle Speed: 5000 RPM
Additional Information
Gooseneck: 1,000 mm
Axis speed (rapid): 25 m/min
Table size: 2,700 x 800 mm
Handwheel: Portable HR 510
Milling head: KOSMO3 Universal
Spindle taper: SK50 BIG PLUS
Indexing: B/A 0.02°/0.02° (Hirth coupling)
Tool magazine: MRT24 (24 positions), vertical change position
Enclosure: Standard housing (no roof)
Training: 2-day operator course at customer site
Delivery time: Approx. 4 months from order
Warranty: 12 months
Additional equipment
Chip management: 2 x screw conveyors along X-axis + additional belt conveyor in Y-direction
Internal cooling: 15 bar through-spindle coolant with bag filter
External blow-out air
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
