PO LY GIM Mini-88

Photo Gallery

PO LY GIM - Mini-88IL-TUR-PO -2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

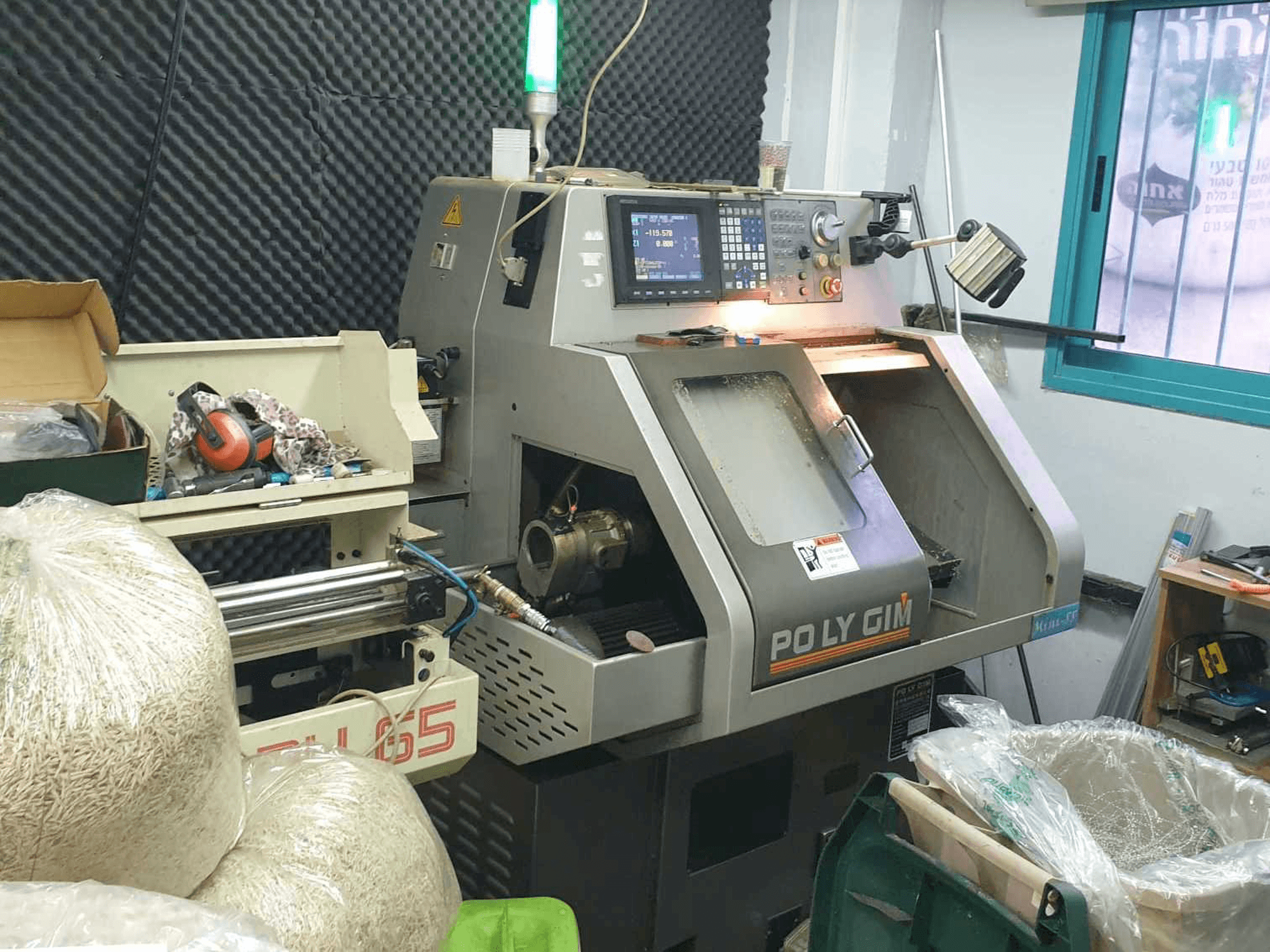

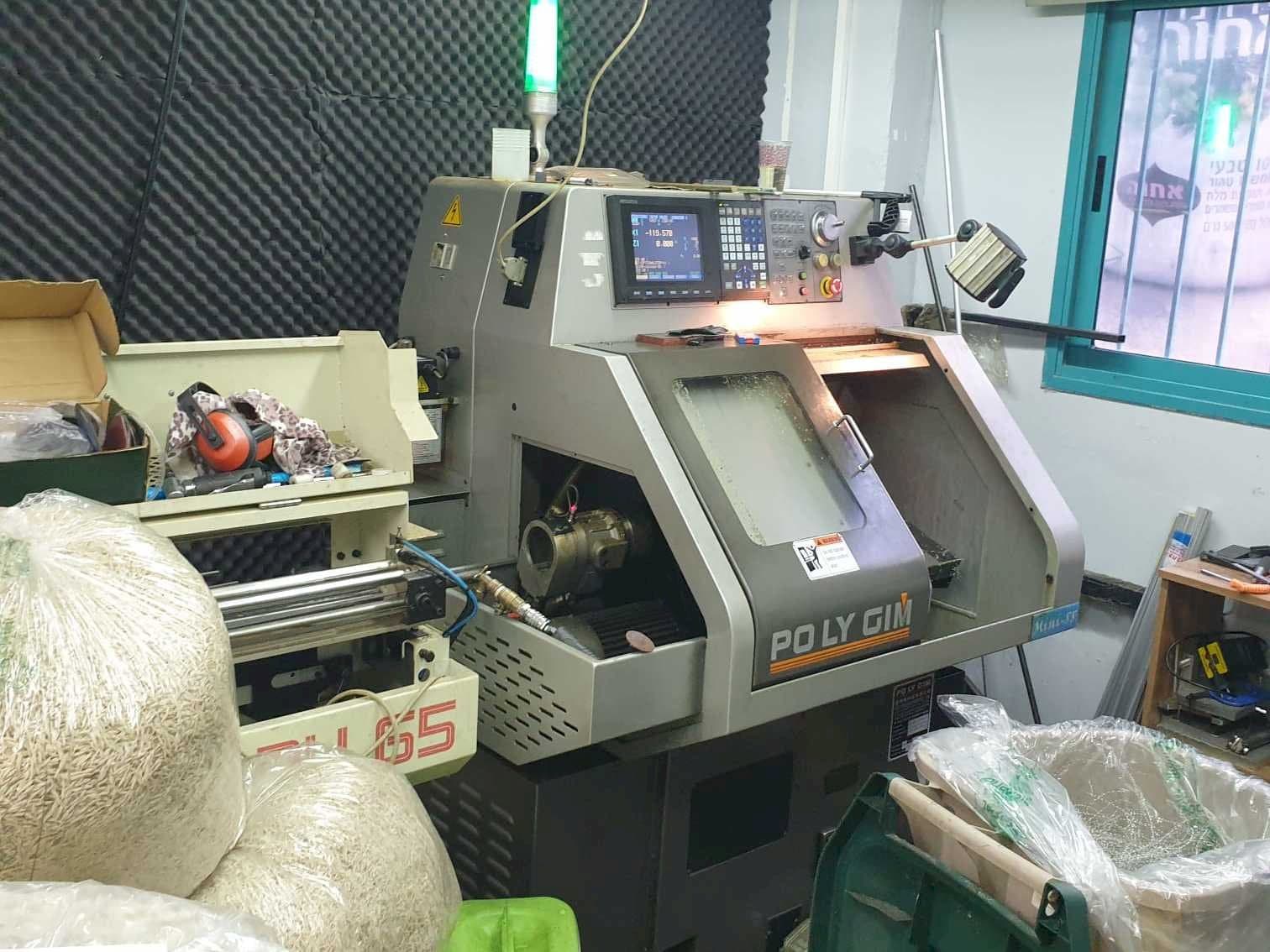

PO LY GIM Mini-88 Lathe

Show in original language

This PO LY GIM Mini-88 Lathe machine was manufactured in the year 2018 in Taiwan. This machine can work with a spindle speed range 100-5000 rpm. It presents very good conditions.

Overview

brand: PO LY GIM
year: 2018
MODEL: Mini-88
application type: Turning
Location: Israel
machine type: Swiss Type Turning Machine
control unit brand: MITSUBISHI

Technical Information - PO LY GIM Mini-88

Control Unit

Control Brand: MITSUBISHI

Dimensions

Machine Depth: 1000 mm
Machine Height: 1500 mm
Machine Weight: 1058 kg

Technical Specification

Spindle Power: 2.2 kW
Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Max. Bore size of tool: Ø20 mm
Coolant pump motor: 1/4 h. P.

Technical Machine Benefits

Max. Machining dia: 60 mm (with chuck), 26 mm (with collet chuck)
Max. Machining length: 120 mm
Swing over cross slide: 120 mm
Max. Cross trave (x axis): 170 mm
Max. Longitudinal travel (z axis): 170 mm
Bore of spindle: 34 mm
Max. Bar feeding dia: 26 mm
Spindle nose: Ø85 mm
Hydraulic chuck: 4"
Cutting tool size: 16 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
