Miyano - BNA42S2CZ-TUR-MIY-2018-00001

Name: Miyano BNA42S2
Brand: Miyano
SKU: CZ-TUR-MIY-2018-00001
Price: 73799 GBP
Availability: InStock

£ 73,799

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Miyano BNA42S2 For Sale | gindumac.com

Show in original language

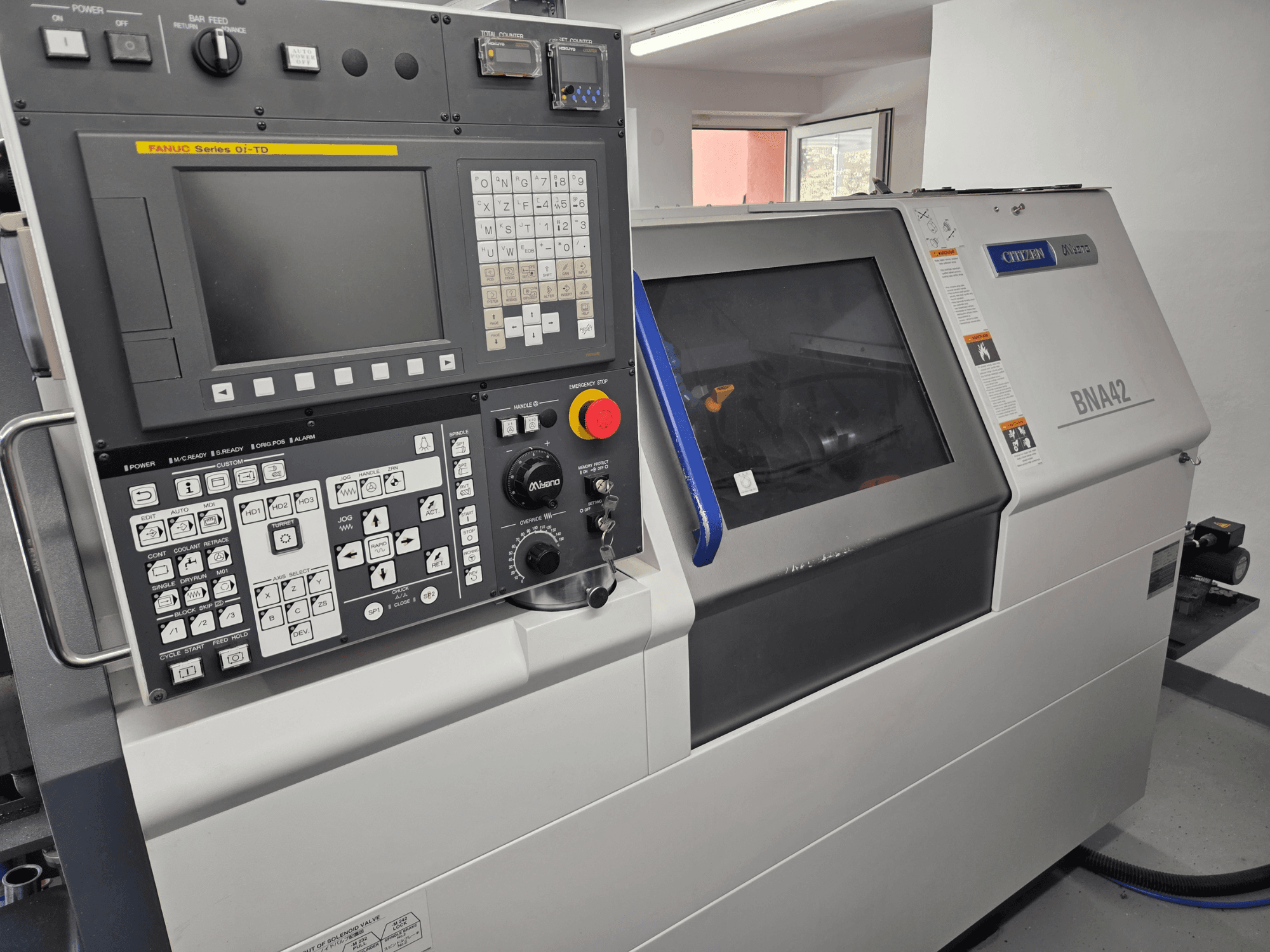

This 3-axis Miyano BNA42S2 was manufactured in 2018. It features a maximum bar machining diameter of ø42 mm and a spindle speed range of 60 – 6,000 min⁻¹. The machine includes an 8-station turret capable of live tools and a maximum machining length of 100 mm. If you are looking to get high-quality turning capabilities, consider the Miyano BNA42S2 horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Miyano
year: 2018
MODEL: BNA42S2
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Miyano BNA42S2

Control Unit

Control Brand: FANUC
Control Model: Series Oi-TD

Dimensions

Machine Height: 1660 mm
Machine Length: 2190 mm
Machine Weight: 2800 kg
Machine Width: 2150 mm

Movement

Number of Axes: 3
X-axis Travel: 135 mm
Z-axis Travel: 235 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 7.5 kW
Spindle Speed: 6000 RPM
Tool Stations: 8

Additional Information

Main Drive

Number of spindles: 2
Spindle motor power: Main spindle: 7.5 / 5.5 kW; Sub-spindle: 5.5 / 3.7 kW
Spindle speed range: Main spindle: 60 – 6,000 min⁻¹; Sub-spindle: 50 – 5,000 min⁻¹

Movement

B-Axis: 310 mm

Turret

Number of tool slots: 8
Rotating tools: All positions capable of live/revolving tools with half-indexing

Media

Main electronic connection: 28 KVA (100 A fuse)
Cooling pressure: Coolant tank capacity: 165 L

Extra Information

Maximum bar machining diameter: Main spindle ø42 mm (1.65 in); Sub-spindle ø34 mm
Power chuck: 5 inches
C-axis control and rigid tapping included on main spindle
C-axis control included on sub-spindle
Maximum machining length: 100 mm
Live tool motor: 2.8 / 1.0 kW
Live tool speed: Up to 5,000 min⁻¹
Turning tool shank height: Square tool □20 mm
Drill shank diameter: ø25 mm (1 in)
B-axis is specified as Z2-axis stroke for pick-off and back machining

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
