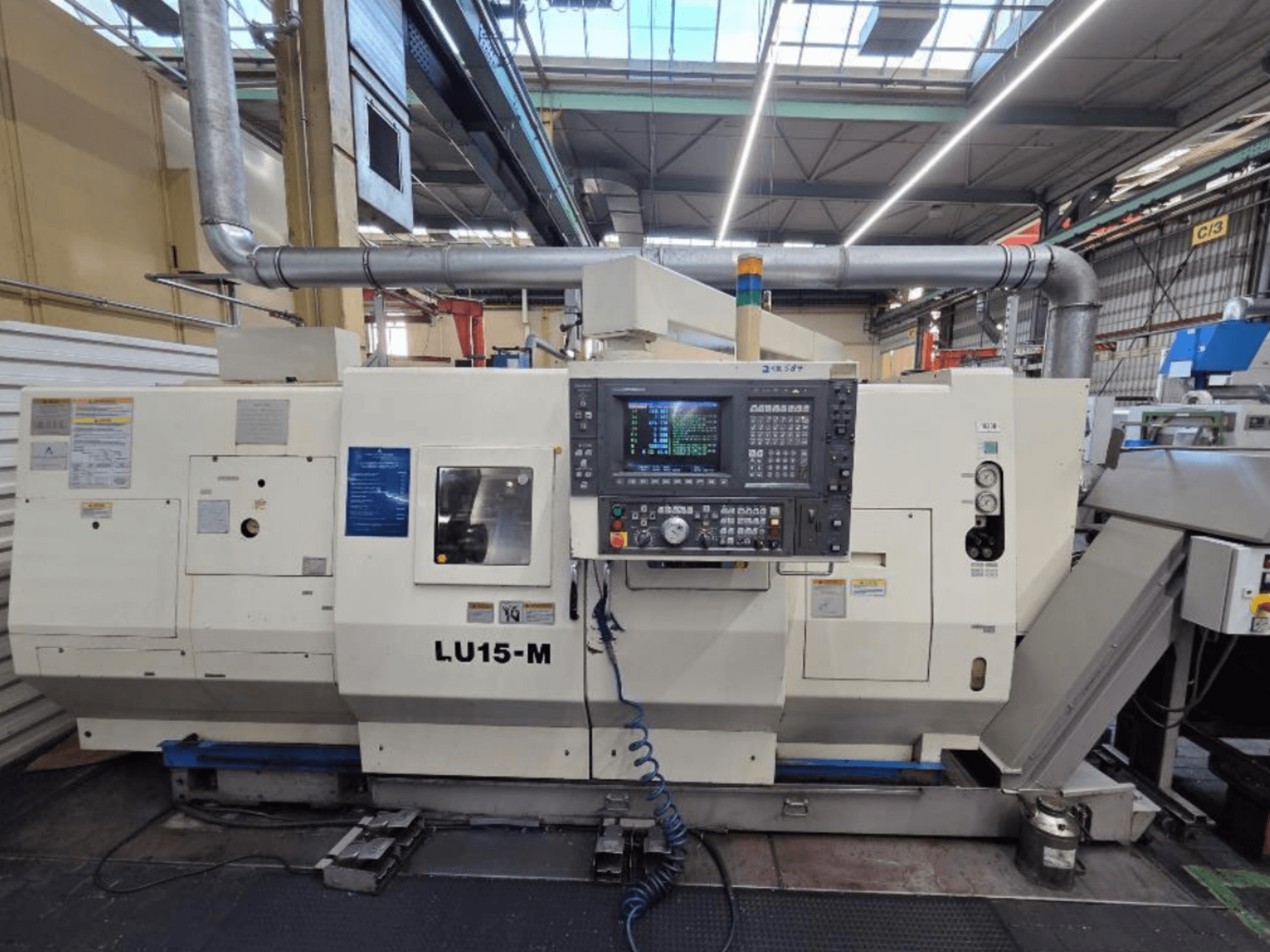

This 4-axis Okuma LU15 M-2SC 1000 was manufactured in 1998. It features two tool turrets, live tooling with C-axis capabilities, and synchronous tapping for enhanced productivity. The machine includes an integrated tool setter for precise measurements and a programmable tailstock for versatility. If you are looking to get high-quality turning capabilities, consider the Okuma LU15 M-2SC 1000 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 1998
- MODEL: LU15 M-2SC 1000
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma LU15 M-2SC 1000
Control Unit
- Control Brand: OKUMA
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Z-axis Travel: 1020 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
Additional Information
Longitudinal Travel (X): 1020 / 995 mm
Cross Travel (Z): 260 / 140 mm
Turning Range: 340 mm
Swing Diameter over Bed Cover: 530 mm
Swing Diameter over Cross Slide: 380 mm
Spindle Nose: ASA-A2 / DIN 55026 Gr. 6
Spindle Bore: 62 mm
Spindle Diameter in Front Bearing: 100 mm
Chuck Diameter: 200 mm
Main Drive: Motor spindle (hollow shaft motor) frequency-regulated 60% ED
Power (Main Drive): 22 kW
Max Torque: 412 Nm
Speed Range: 45 - 4,500 rpm
Speed Levels (Electrical): 2
Feed Drive: AC servo motors, digitally regulated
Feed Range X/Z: 0 - 1,000 mm/U
Rapid Traverse X/Z: 15 / 20 m/min
Power X, Z: 2.4/1.5 kW and 4/4 kW
Feed Force X, Z: 11/3.7 kN and 7/6.7 kN
Turrets: 2 tool turrets
Live tooling: Yes (C-axis and driven units)
Tapping: Synchronous tapping
Spindle interpolation: Automatic main spindle interpolation
Tool monitoring: Wear and breakage monitoring
Tool measurement: Integrated tool setter / measuring device
Tailstock: Programmable, towable with bed slide, automatic clamping
Tailstock quill: Controllable via M-command
Draw tube bore: 55 mm (partial hollow clamping cylinder)
Interface: DNC Interface RS-232C
Cooling system: Reinforced pump (8 bar at 30 l/min)
Programming: ONE TOUCH Dialog-NC (automatic work plan generation)
Additional equipment
Chip conveyor (1,200 mm discharge height)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
