➤ Used Okuma LB 300M X 500 For Sale | gindumac.com

Show in original language

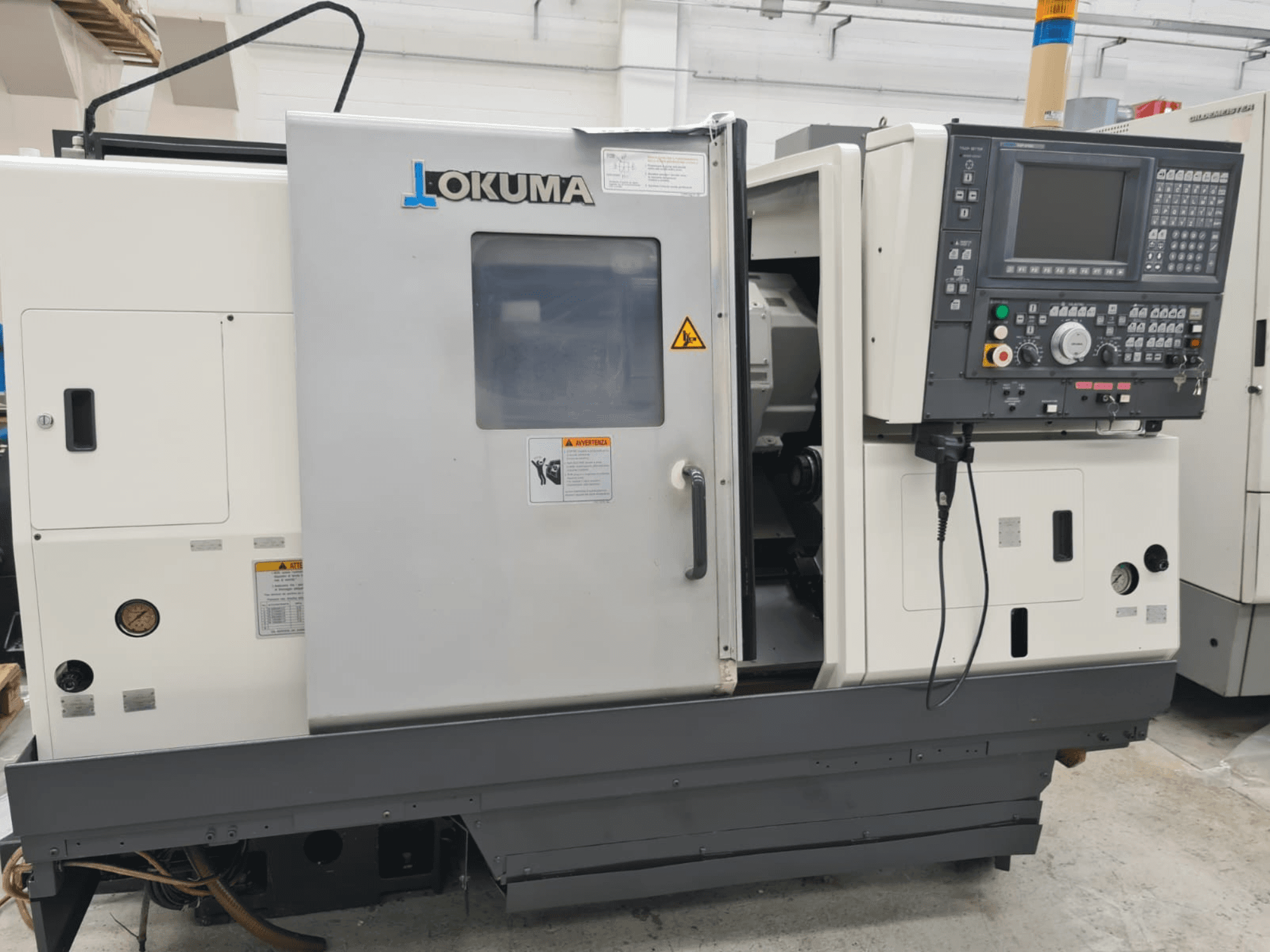

This 5-axis Okuma LB 300M X 500 was manufactured in 2012. It features a maximum turning diameter of 340 mm and a turning length of 480 mm. The machine is equipped with a powerful spindle speed range of 45 - 3,800 rpm and a robust turret with 12 stations. If you are looking to get high-quality turning capabilities, consider the Okuma LB 300M X 500 horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Okuma
year: 2012
MODEL: LB 300M X 500
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Okuma LB 300M X 500

Movement

Number of Axes: 5
X-axis Travel: 280 mm
Z-axis Travel: 500 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 22 kW
Spindle Speed: 3800 RPM
Taper Size: VDI 40

Additional Information

CNC: OSP U100L
Max turning diameter: 340 mm
Max turning length: 480 mm
Distance between centers: 500 mm
C-axis: 360° (0.001° increment)
Rapid feed: X 20,000 mm/min; Z 25,000 mm/min
Spindle nose: ASA 6
Bar capacity: 65 mm
Live tooling: 45–4,500 rpm; 3.3 kW
Turret: V 12 NCM (12 stations); VDI 40
Tool section: 25 mm (square) / 40 mm (boring bar)
Tailstock: quill Ø 90 mm; travel 120 mm; taper MT5
Certification: CE certified with manuals

Additional equipment

Kitagawa B208 chuck
Chip conveyor
High-pressure coolant pump
Robot interface
Automatic door
Air blow
Turning tool holder kit
4 radial live tools
4 axial live tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
