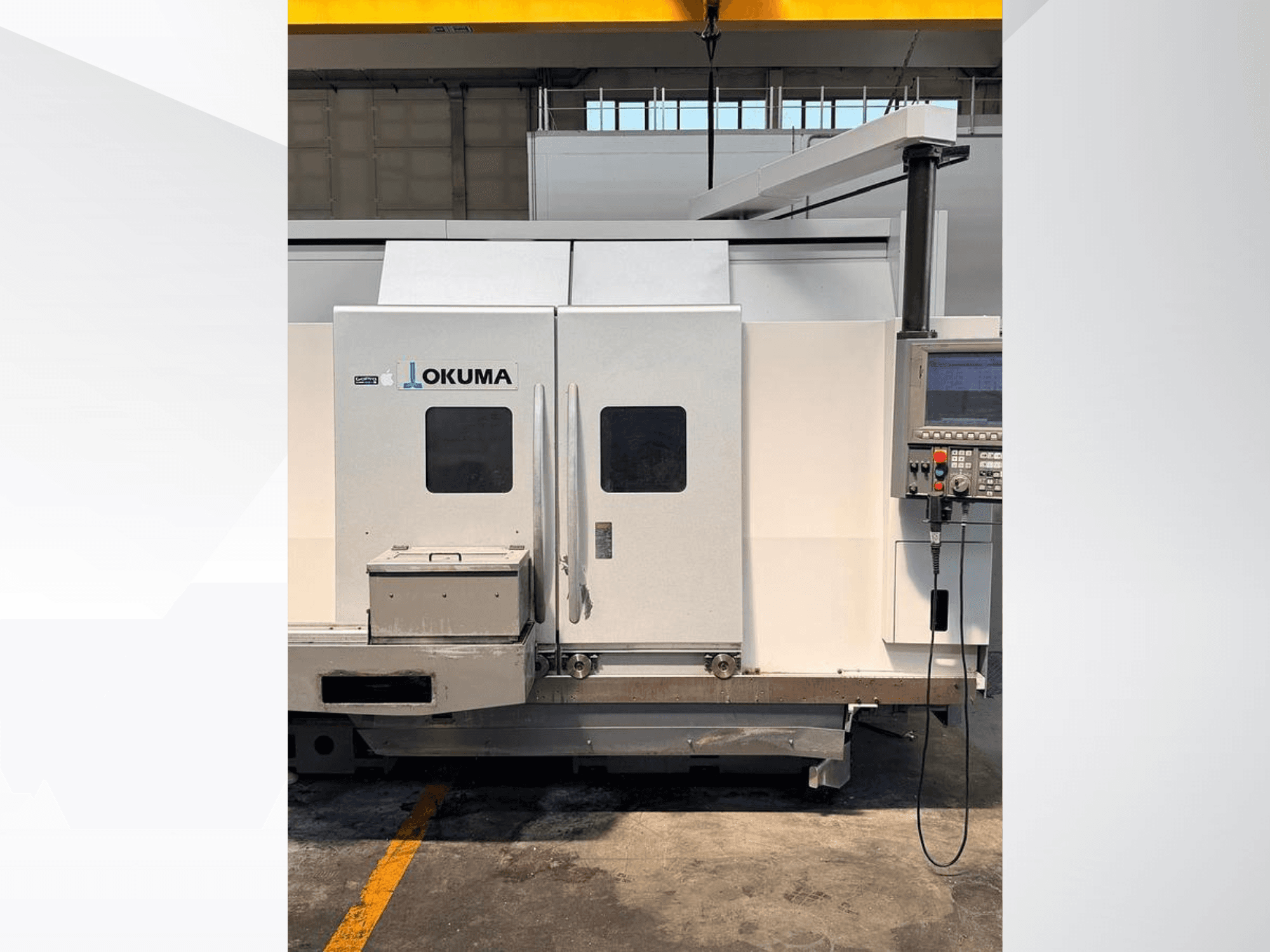

This 5-axis Okuma LB 3000 EX MYW 800 was manufactured in 2011. It features a maximum turning diameter of 410 mm and a distance between centers of 1,020 mm. The machine includes a robust tool turret with 12 positions and a maximum spindle speed of 4,200 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LB 3000 EX MYW 800 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2011
- MODEL: LB 3000 EX MYW 800
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - Okuma LB 3000 EX MYW 800
Dimensions
- Machine Height: 1970 mm
- Machine Length: 3310 mm
- Machine Weight: 6000 kg
- Machine Width: 1900 mm
Movement
- Number of Axes: 5
- X-axis Travel: 260 mm
- Y-axis Travel: 115 mm
- Z-axis Travel: 1065 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 30 kW
- Spindle Speed: 4200 RPM
Additional Information
Working capacity:
Distance between centers: 1,020 mm
Maximum swing over covers: 580 mm
Swing diameter between centers: 470 mm
Maximum turning diameter (standard tools): 410 mm
Maximum turning diameter (driven tools): 340 mm
Main spindle:
Type: Big Bore ASA 8
Air blow system for the self-centering chuck
Spindle opening and closing possible during rotation
Axis travel:
W: 825 mm
Rapid traverse:
X: 25 m/min
W: 25 m/min
Z: 30 m/min
Y: 12.5 m/min
Sub-spindle:
Connection: Flat 140
Maximum speed: 6,000 rpm
Tool turret:
Type: OKUMA
Tool positions: 12
Driven-tool power: 7.1 kW / 4.1 kW
Maximum driven-tool speed: 6,000 rpm
Additional equipment
LNS Quick Load Servo III bar feeder
Bar interface preparation
Right-side chip conveyor
Finished-part catcher arm
MSCTN80 A8 collet chuck with various collets
Tool holder kit
Kitagawa BB210 self-centering chuck
Kitagawa B206 self-centering chuck
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
