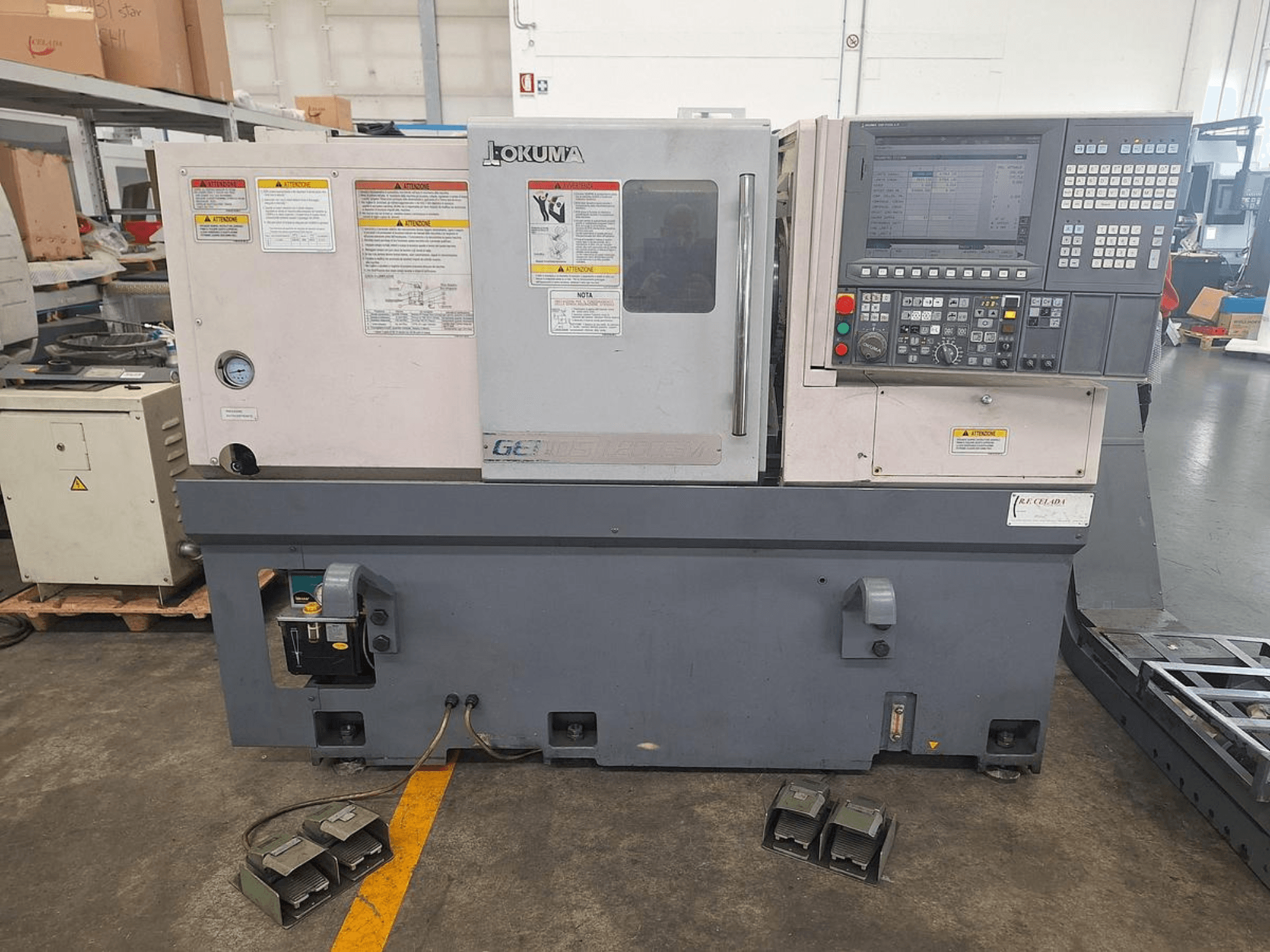

This 3-axis Okuma GENOS L200E-M was manufactured in 2010. It features a maximum turning diameter of 200 mm and a turning length of 380 mm. The machine is equipped with a spindle speed of 4,500 rpm and a main spindle power of 11 kW. If you are looking to get high-quality turning capabilities, consider the Okuma GENOS L200E-M horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2010
- MODEL: GENOS L200E-M
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma GENOS L200E-M
Control Unit
- Control Brand: OKUMA
- Control Model: OSP P200 L
Dimensions
- Machine Height: 1569 mm
- Machine Weight: 3800 kg
Movement
- Number of Axes: 3
- X-axis Travel: 165 mm
- Z-axis Travel: 400 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 11 kW
- Spindle Speed: 4500 RPM
Additional Information
Max swing over covers: 450 mm
Max turning diameter: 200 mm
Max turning length: 380 mm
Spindle nose: ASA A2-6
Front bearing diameter: 100 mm
Spindle bore: 62 mm
Bar capacity: 50 mm
Rapid traverse (X/Z): 20–25 m/min
Tailstock taper: MT No. 5
Tailstock quill stroke: 100 mm
Turret type: VDI-30 V12
Indexing time (1 position): 0.1 sec
OD tool size: 20 x 20 mm
ID tool size: 32 mm
Live tool speed: 6,000 rpm
Live tool power: 4.0 / 1.8 kW
Floor space: 2.081 x 1.550 m
Total power on time: 23,498 hours
Operating time: 6,490 hours
Cutting time: 5,278 hours
Additional equipment
Static tool holder kit included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
