MORI SEIKI - NLX 2500MIT-TUR-MOR-2011-00003

Name: MORI SEIKI NLX 2500M
Brand: MORI SEIKI
SKU: IT-TUR-MOR-2011-00003
Price: 51524 GBP
Availability: InStock

£ 51,524

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NLX 2500M For Sale | gindumac.com

Show in original language

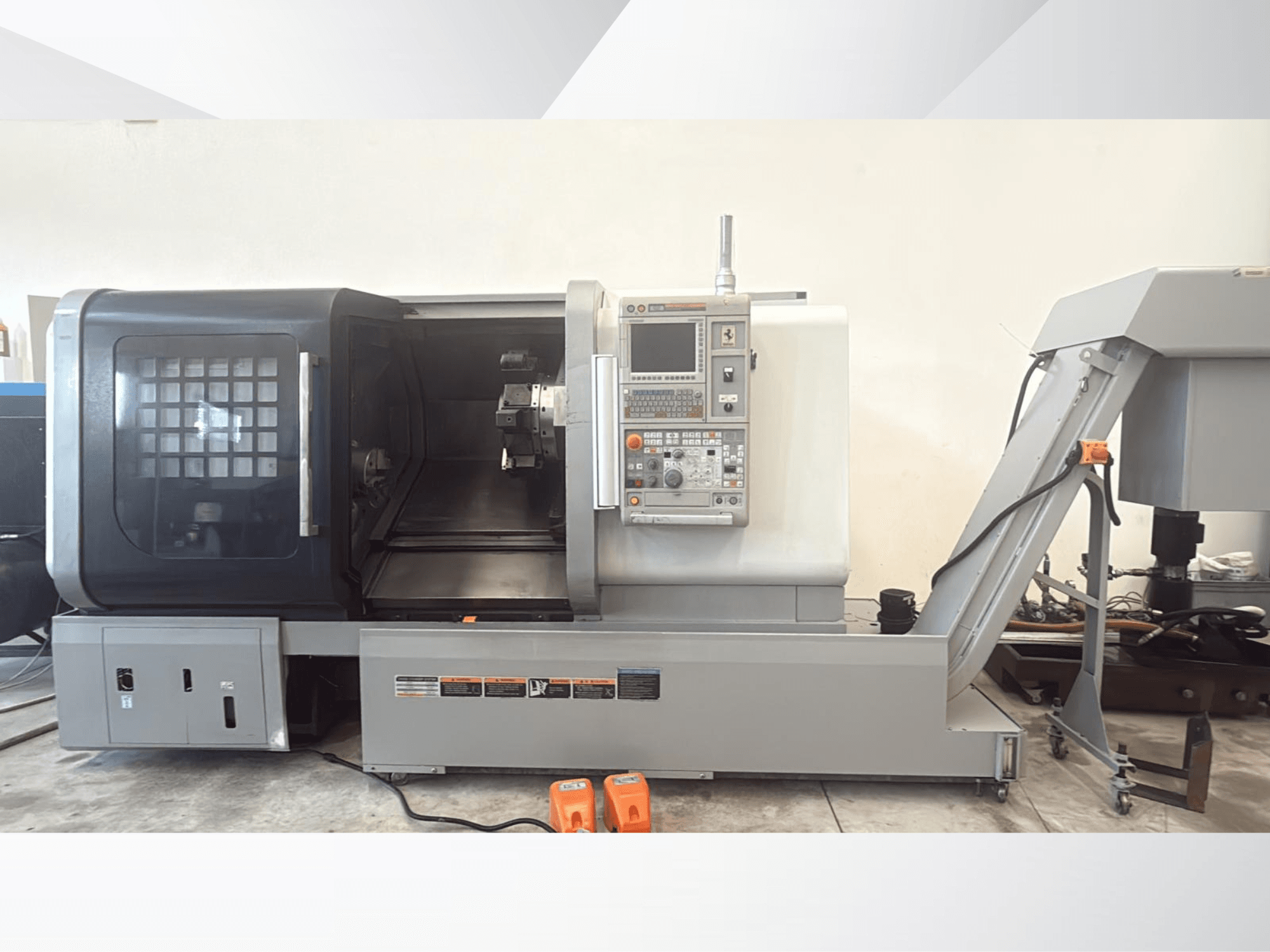

This 3-axis MORI SEIKI NLX 2500M was manufactured in 2011. It features a maximum turning diameter of 366 mm and a maximum turning length of 705 mm. The machine is equipped with a powerful spindle motor of 18.5 kW and a turret with 12 positions for enhanced productivity. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NLX 2500M horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: MORI SEIKI
year: 2011
MODEL: NLX 2500M
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - MORI SEIKI NLX 2500M

Dimensions

Machine Weight: 5500 kg

Movement

Number of Axes: 3
X-axis Travel: 260 mm
Z-axis Travel: 795 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 18.5 kW
Spindle Speed: 4000 RPM

Additional Information

Control unit: MSX-853IV
Maximum swing over bed: 787 mm
Maximum turning diameter: 366 mm
Maximum turning length: 705 mm
Maximum bar capacity: 80 mm
Spindle nose: ASA 8"
Tailstock: MT5, 80 mm quill diameter, 734 mm travel
Turret stations: 12
Motorized/live tool positions: 12
Turret interface: BMT
Turning tool size: 25 × 25 mm
Boring bar capacity: 50 mm
Maximum live tool speed: 6,000 rpm
Live tool motor power: 5.5 / 7.5 kW
Operating time: 212 h 39 min
Cutting time: 140 h 19 min
Power-on time: 15,408 h 57 min

Additional equipment

Chip conveyor
Various/assorted tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
