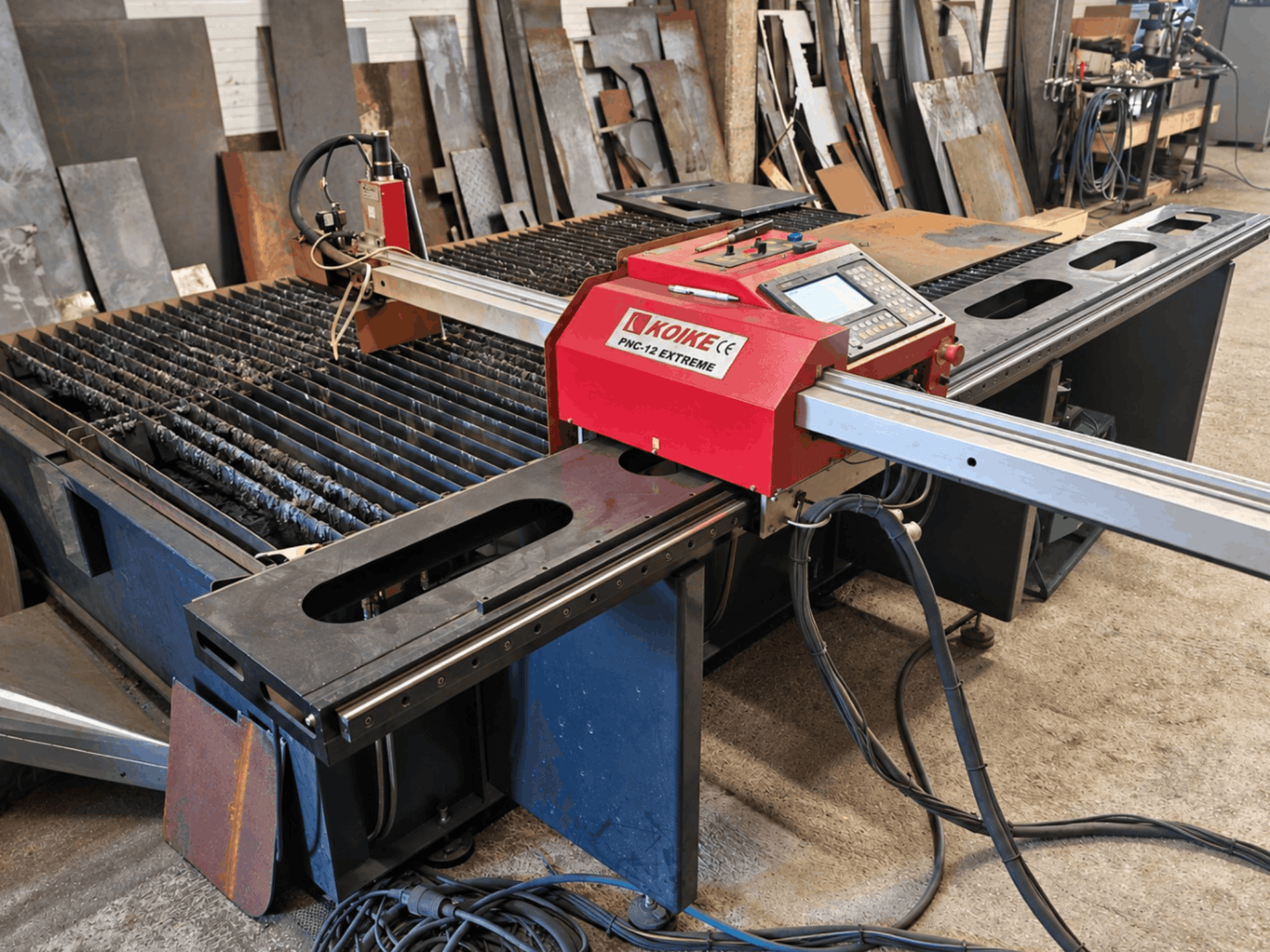

KOIKE - PNC-12 extremeSI-CUT-KOI-2019-00001

• Operating hours: approx. 600 h

• Condition: Excellent

• Effective cutting area: 1,500 x 3,000 mm

• Rapid travel speed: 4,000 mm/min

• Maximum programmed cutting speed: 3,000 mm/min

• Drive system: Rack-and-pinion X/Y with linear guides

• Control unit: KOIKE D420, 7-inch colour display, USB and manual program input

• Torch control features: Initial height sensing, arc-voltage height control, collision/breakaway protection

• Plasma cutting performance:

  • Maximum cutting current: 110 A

  • Recommended mild-steel cutting capacity: up to 35 mm

  • Maximum cut: approx. 40 mm

  • Maximum severance: up to 50 mm

  • Mild-steel piercing capacity: up to 20 mm

  • Duty cycle: 90 A at 100% / 95 A at 60% / 110 A at 50%

• Oxy-fuel cutting performance:

  • Mild-steel cutting capacity: up to 80 mm (depending on nozzle, gas type, material and cutting conditions)

  • CNC-controlled piercing sequence

Additional equipment

• Plasma power source: Cebora Plasma Sound PC 110/T (Art. 336)

• Machine torch: Cebora automatic torch with approx. 10 m cable package

• Oxy-fuel: Original KOIKE motorised oxy-fuel cutting torch; automatic gas solenoid valves

• Downdraft cutting table: Sideros Engineering Sirion 1000 (2019), S/N 1027/19

  • Max air pressure: 6 bar

  • Max table load: 500 kg/m²

  • Design: Sectional/zoned downdraft table with central extraction channel

• Nesting/CAD-CAM software on USB drive

• Available documentation and accessories
