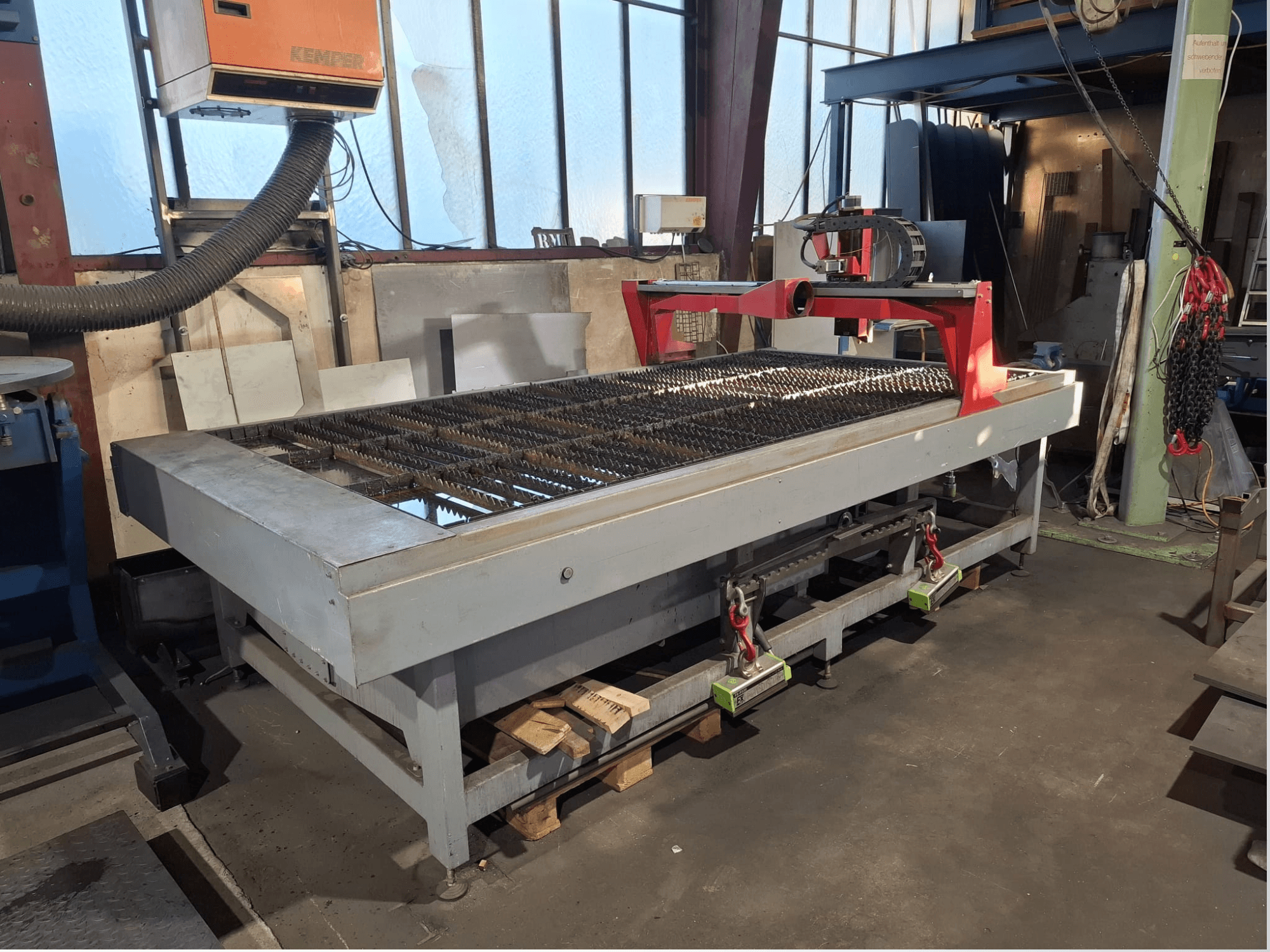

Plasma cutting machine manufactured in 2020. This PLASMACUT 3015T features a cutting area of 3,020 × 1,520 mm and a maximum plate thickness of 50 mm. It includes a robust gantry drive system and operates with a Hypertherm Powermax 105 Sync plasma power source. If you are looking to get high-quality plasma cutting capabilities, consider the PLASMACUT 3015T machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: PLASMACUT
- year: 2020
- MODEL: 3015T
- application type: Cutting
- Location: Austria
- machine type: Plasma Cutting Machine
Technical Information - PLASMACUT 3015T
Dimensions
- Machine Height: 1500 mm
- Machine Length: 3560 mm
- Machine Weight: 1080 kg
- Machine Width: 1960 mm
- Table Length: 3020 mm
- Table Load: 400 kg
- Table Width: 1520 mm
Movement
- Number of Axes: 2
- X-axis Travel: 3020 mm
Additional Information
Cutting Area: 3,020 × 1,520 mm
Operating Voltage: 230 V
Phase: 1 Ph
Power Consumption: 300 VA
Maximum Table Load: 400 kg
Maximum Plate Thickness: 50 mm
X-Axis Guide System: Hardened Precision Round Steel Guides with Adjustable Rollers
Y-Axis Guide System: Profile Rail Guides
X-Axis Drive: Reinforced Timing Belt (5M15)
Y-Axis Drive: Reinforced Timing Belt (2 × 8MR30)
Gantry Drive: Dual-Sided Drive with Rigid Coupling Shaft
Positioning Speed: 24 m/min
Repeatability: Better than 0.1 mm
Control Software: CNC-Workbench Plasma
CAD/CAM Software: CNC-Workbench Plasma
File Format Support: DXF
Plasma Power Source: Hypertherm Powermax 105 Sync
Plasma Power Source Voltage: 400 V
Maximum Cutting Current: 105 A
Piercing Capacity: 22 mm
Maximum Severance Capacity: 44 mm
Duty Cycle at Full Load: 80%
Process Gases: Air, Nitrogen
Manual Torch Connection: Optional
Water Tank Capacity: Approx. 300 L
Exhaust Connection Preparation: DN 150 mm
Portal Clearance: 300 mm
Laser Pointer: Yes
Torch Height Control (THC): Automatic Arc Voltage Control
Operating System Requirement: Windows XP / 7 / 8.1 (PC Not Included)
Additional Equipment
Water Tank
Rittal Operator Panel
PC with Installed Control Software
Hand Control Unit
Operating Manual
Serial Connection Cable
Consumables Kit
Hypertherm Powermax 105 Sync Plasma Power Source
Automatic Nesting Module (License for One PC)
Laser Alignment
Scribing Option
Fume Extraction Bridge Preparation (DN 150 mm)
Portal Height Extension to 300 mm Clearance
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
