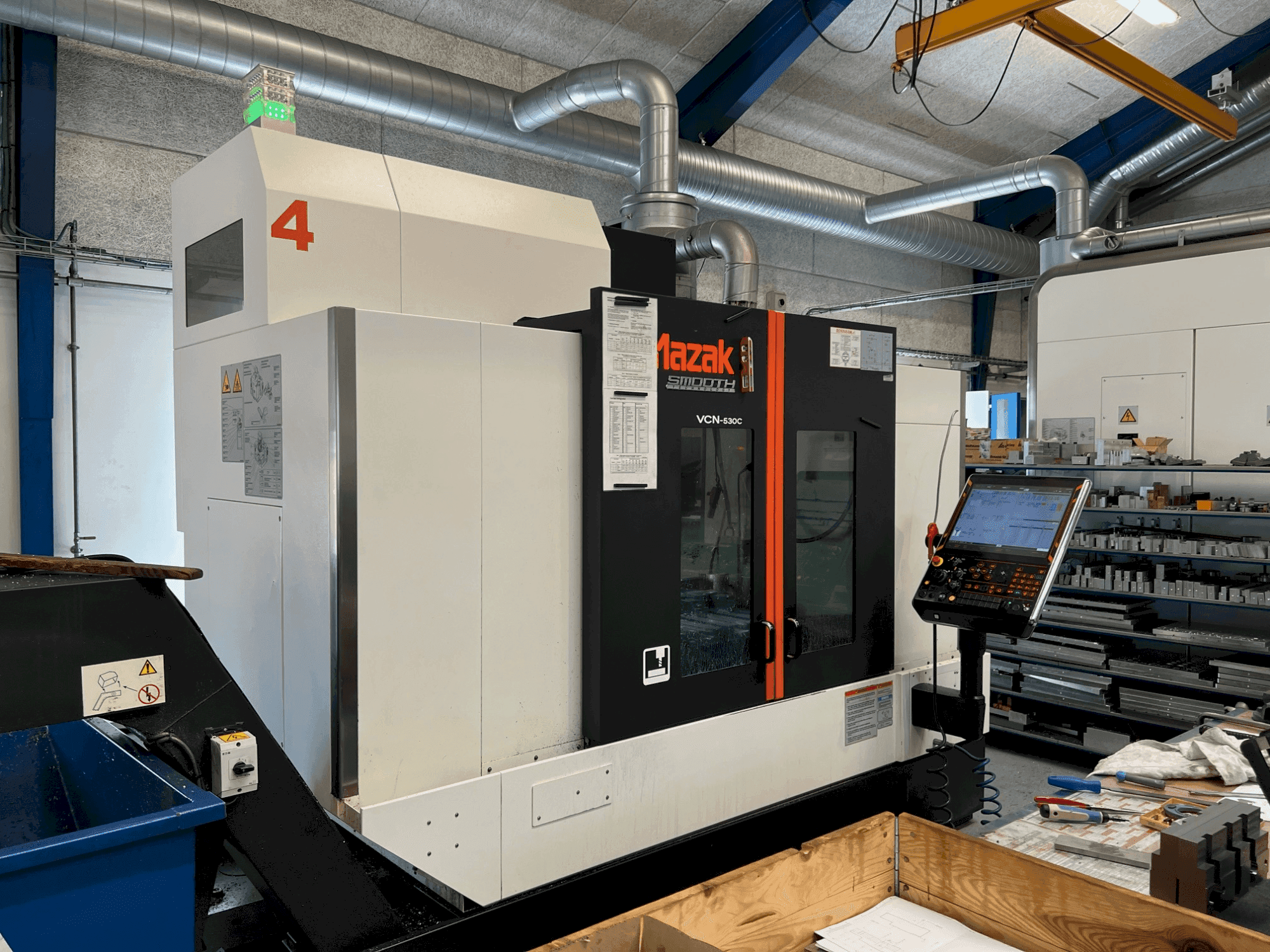

This 3-axis Mazak VCN-530C was manufactured in 2017 and features high-pressure coolant through the system, synchronized tapping, and Ethernet operation functionality. Ideal for precise and efficient machining, it also includes a chip conveyor for steel and a signal tower with three colors. If you are looking to get high-quality milling capabilities, consider the Mazak VCN-530C machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Mazak
- year: 2017
- MODEL: VCN-530C
- application type: Milling
- Location: Denmark
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak VCN-530C
Control Unit
- Control Brand: MAZATROL
Additional Information
Additional equipment
- Workpiece air blast / Chip conveyor left disposal (hinge/for steel) / Signal tower (3 colors lights)/ Renishaw, RMP60 / Renishaw, TS27 / Ekstra kolevandskar 1000 x 1000 mm
Machine Benefits
Technical Machine Benefits
- Ethernet operation function
- Air through spindle in running / hi-press coolant thru system (15 kgf, 213 psi) / cover coolant (required for chip conveyor)
- Synchronized tapping / maximum program size: 8mb / g00 slope constant
- Axis travel : table: cross-wise travel amount (x-axis): 1,050 mm / saddle: back & forth travel amount (y-axis): 530 mm / spindle head: up & down travel amount (z-axis): 510 mm
- Spindle taper bore: 7/24 taper no. 40 / rotating speed maximum: 12,000 min⁻¹
- Table work dimension (cross): 1,300 mm / table work dimension (longitudinal): 550 mm
- Magazine capacity (standard): 30 / tool shank: cat 40
- Height from floor level: 2,808 mm / width: 2,950 mm / length: 3,139 mm / weight of machine without coolant tank (standard spec. ): 6,800 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
