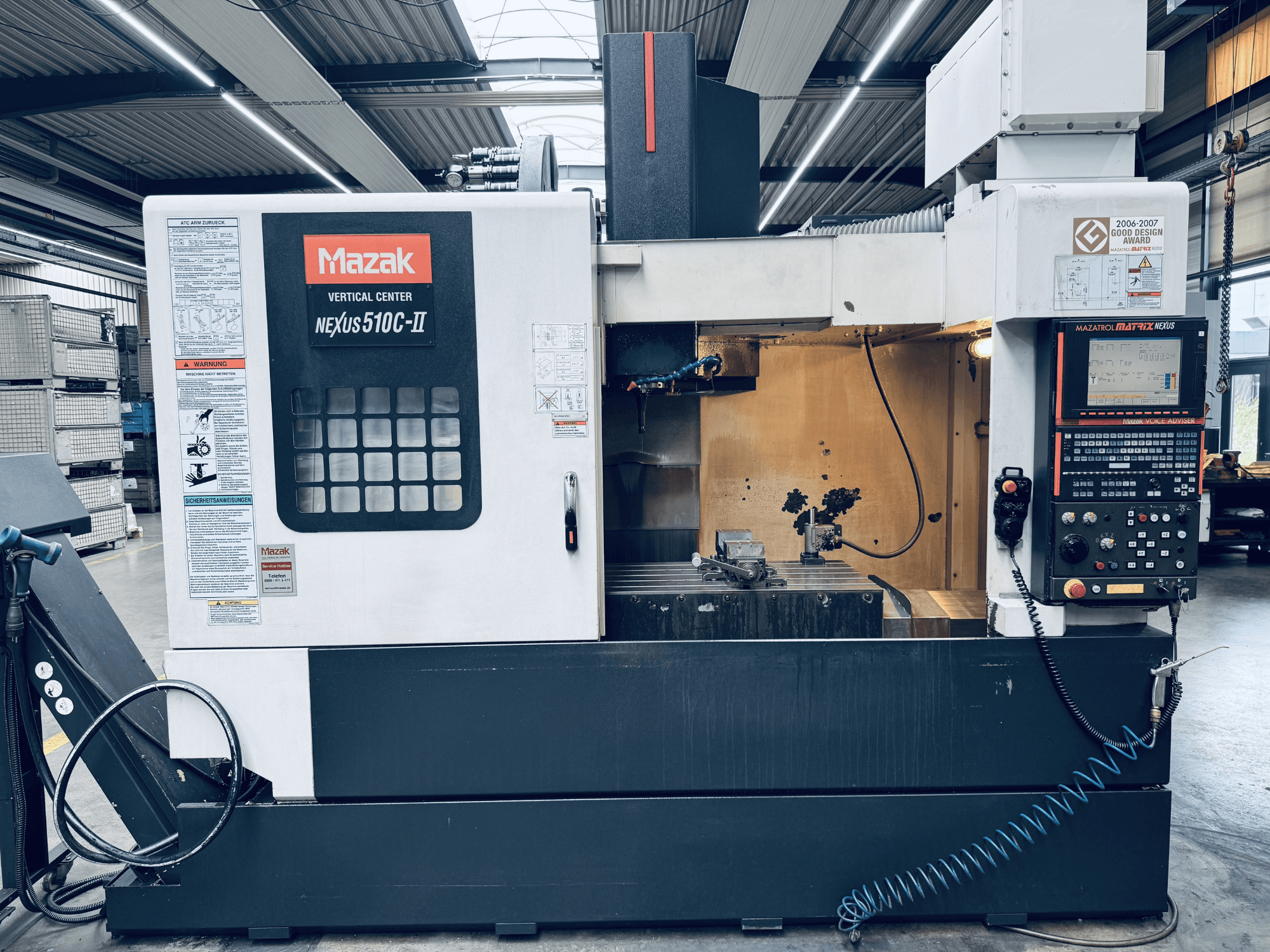

This 3-axis Mazak Vertical Center Nexus 510C-II was manufactured in 2008. It features an impressive X-axis travel of 1050 mm, Y-axis travel of 510 mm, and Z-axis travel of 510 mm. The machine includes a robust table size of 1300 x 550 mm and a maximum table load of 1200 kg. If you are looking to get high-quality machining capabilities, consider the Mazak Vertical Center Nexus 510C-II machine we have for sale. Contact us for further details.
Overview
- brand: Mazak
- year: 2008
- MODEL: Vertical Center Nexus 510C-II
- production hours: 13169
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak Vertical Center Nexus 510C-II
Control Unit
- Control Brand: MAZATROL
- Control Model: Matrix Nexus
Dimensions
- Machine Weight: 6920 kg
- Table Length: 1300 mm
- Table Load: 1200 kg
- Table Width: 550 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
- Tool Stations: 30
Additional Information
- Control System: Mazatrol Matrix Nexus (with Mazak Voice Adviser)
- Axis Travel X/Y/Z: 1050 / 510 / 510 mm
- Table Dimensions: 1300 x 550 mm
- Maximum Table Load: 1200 kg
- Spindle Speed: Up to 12000 rpm
- Spindle Details: Completely renewed in September 2025 by Mazak factory service (original replacement spindle cartridge, high-precision version, clamping force 10.1 kN, runout 0.002-0.005 mm)
- Tool Taper: SK 40 / BT 40
- Tool Magazine Capacity: 30 stations
- Tool Changer Type: Double gripper changer
- Rapid Traverse Rate: Up to 42 m/min
- Total Power-On Time: 46722 hours (as of 07.07.2026)
- Automatic Operation Time: 17776 hours
- Cutting Time: 15817 hours
- Pure Cutting Time: 13169 hours
- Weight: Approx. 6920 kg
- Power Supply: 3AC 380 V, 50/60 Hz, approx. 33.8 kVA
- Control Circuit: AC100V, DC24V
- Main Motor: Max. 47 A, 400 V
- Included Accessories / Components:
* Chip conveyor (chain conveyor) with discharge to chip container
* Donaldson Torit DCE oil mist separator
* Portable electronic handwheel
* Coolant system with spray gun / compressed air gun
* Machine vise (NC vise)
* Approx. 100 SK 40 tool holders
* Tilting chip container (green cart)
* Worklight / interior lighting
* Full enclosure
- Renewed parts during 09/2025 service: Spindle cartridge, rotary joint, non-return valves, filters for air/lubricating oil, oil mist separator element
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
